Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification (G Series)
>>
Power Steering Fluid Flow Actuator
Power Steering Fluid Flow Actuator

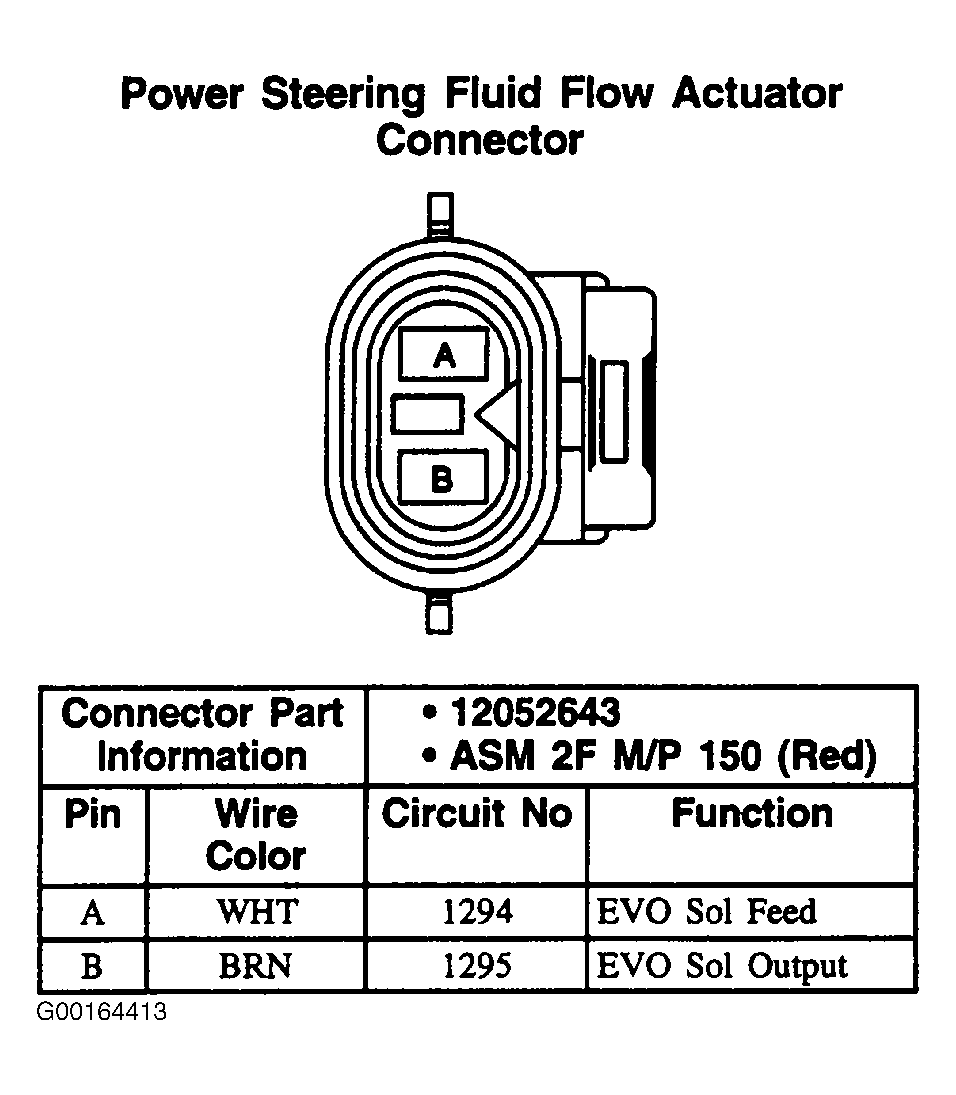

Fig 1: Power Steering Fluid Flow Actuator - 2-Pin Connector, Red
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
