Inflatable Restraint Diagnostic Resistor

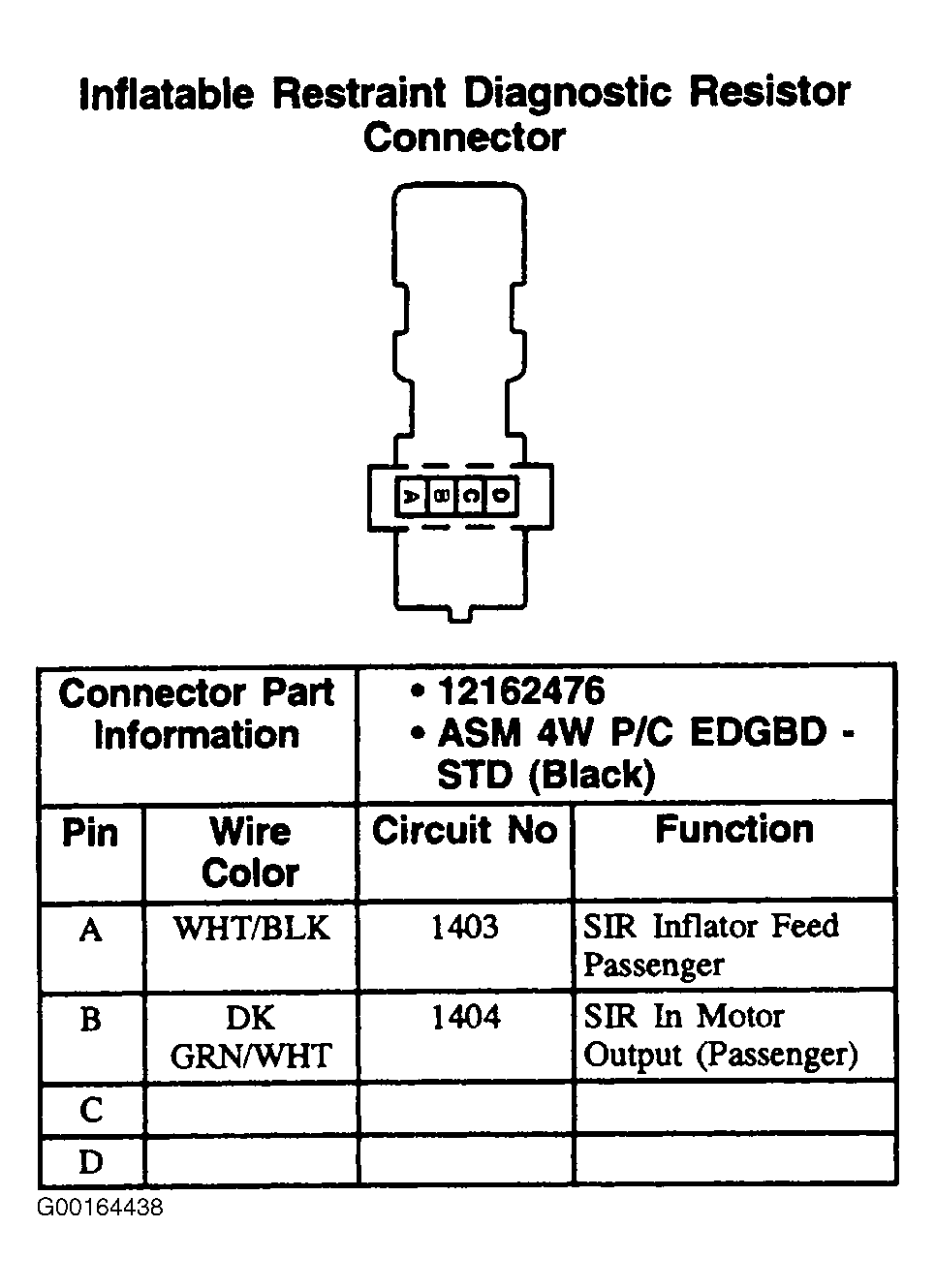

Fig 1: Inflatable Restraint Diagnostic Resistor - 4-Pin Connector, Black

G00164438

Courtesy of GENERAL MOTORS CORP.
