Connector Terminal Identification (G Series)
>>
Camshaft Position (CMP) Sensor
Camshaft Position (CMP) Sensor

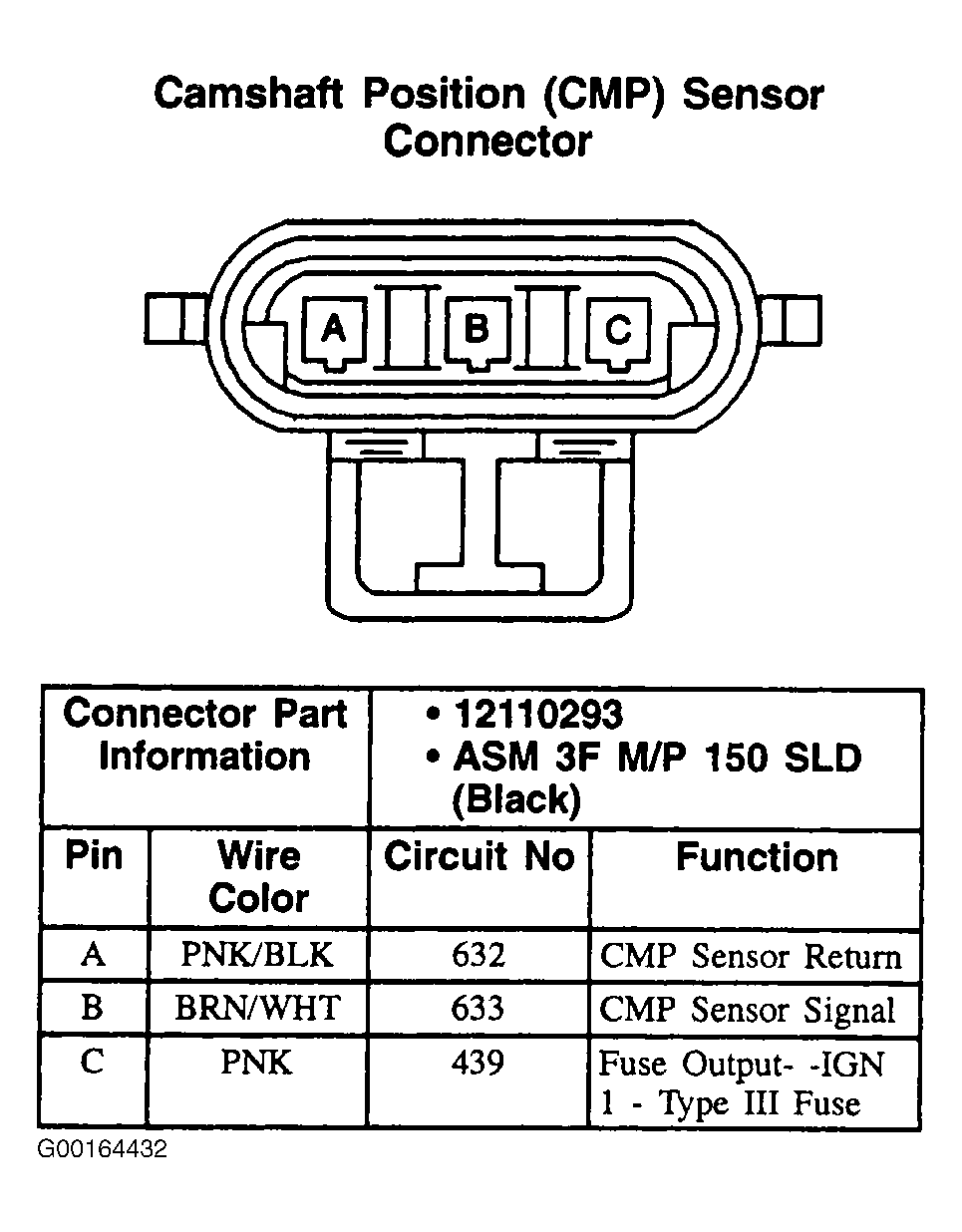

Fig 1: Camshaft Position (CMP) Sensor - 3-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
