GMC
>>
1997
>>
Vandura 7.4 N
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification (G Series)
>>
Auxiliary Power Outlet
Auxiliary Power Outlet

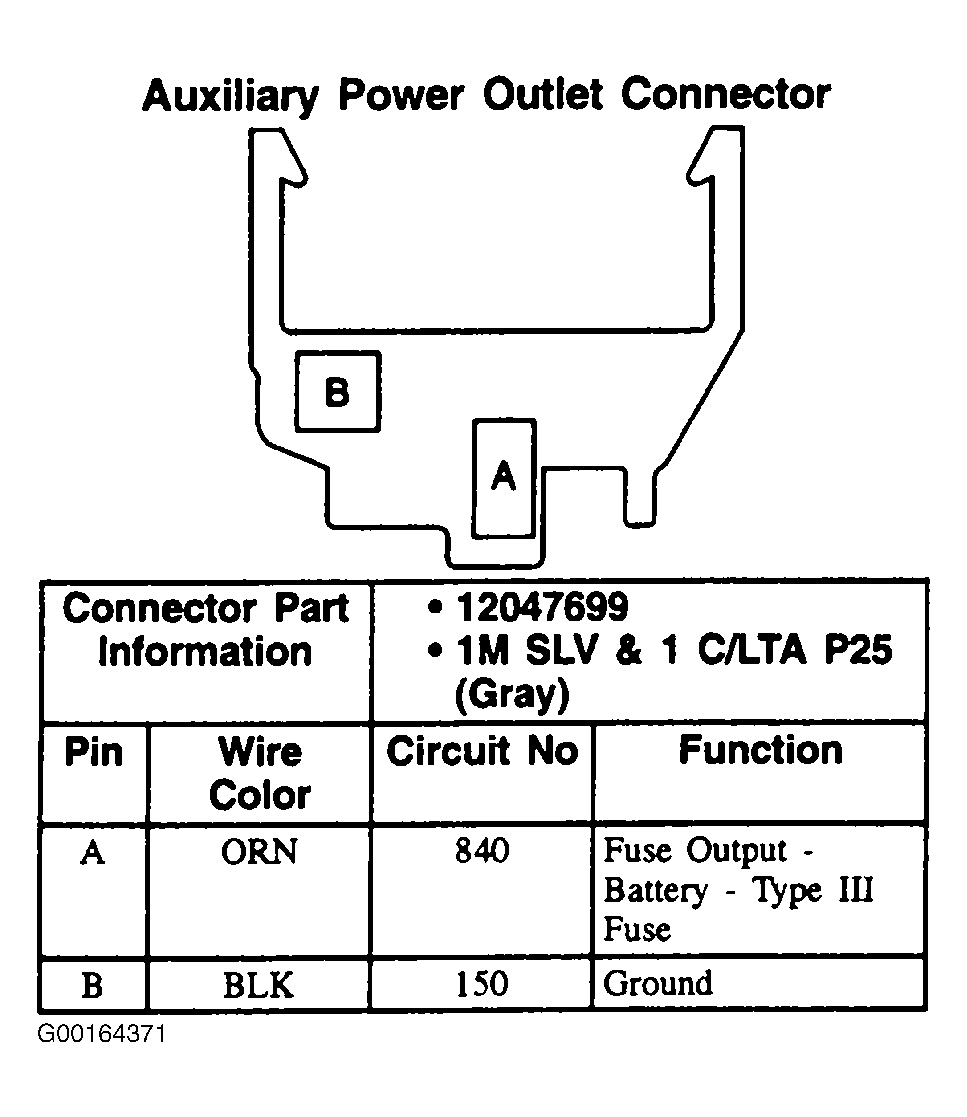

Fig 1: Auxiliary Power Outlet - 2-Pin Connector, Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
