Home >> GMC >> 1997 >> Vandura 5.7 K >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification (G Series) >> Horn

Connector Terminal Identification (G Series): Horn

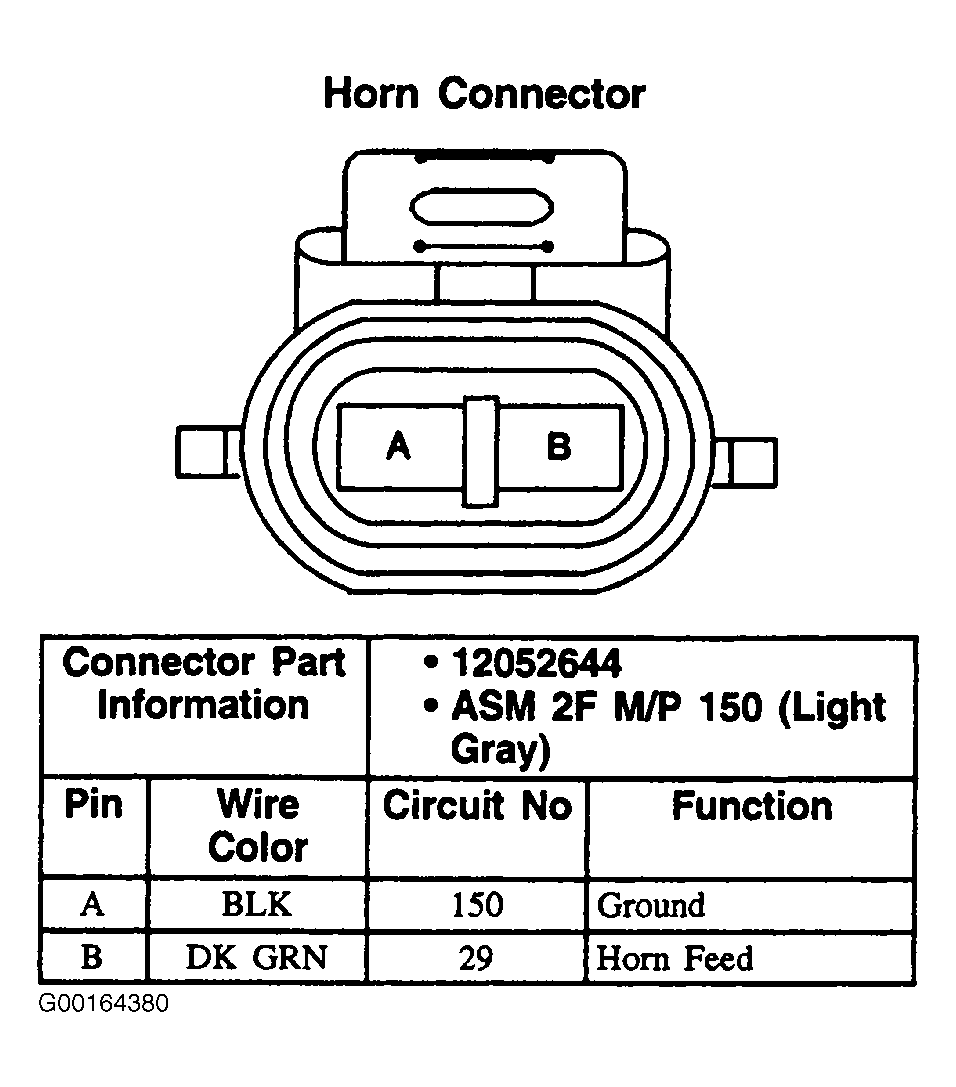

Fig 1: Horn - 2-Pin Connector, Light Gray

G00164380

Courtesy of GENERAL MOTORS CORP.
