GMC
>>
1997
>>
Suburban C2500, 6.5 F
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification - C/K Series
>>
Power Amplifier
Power Amplifier

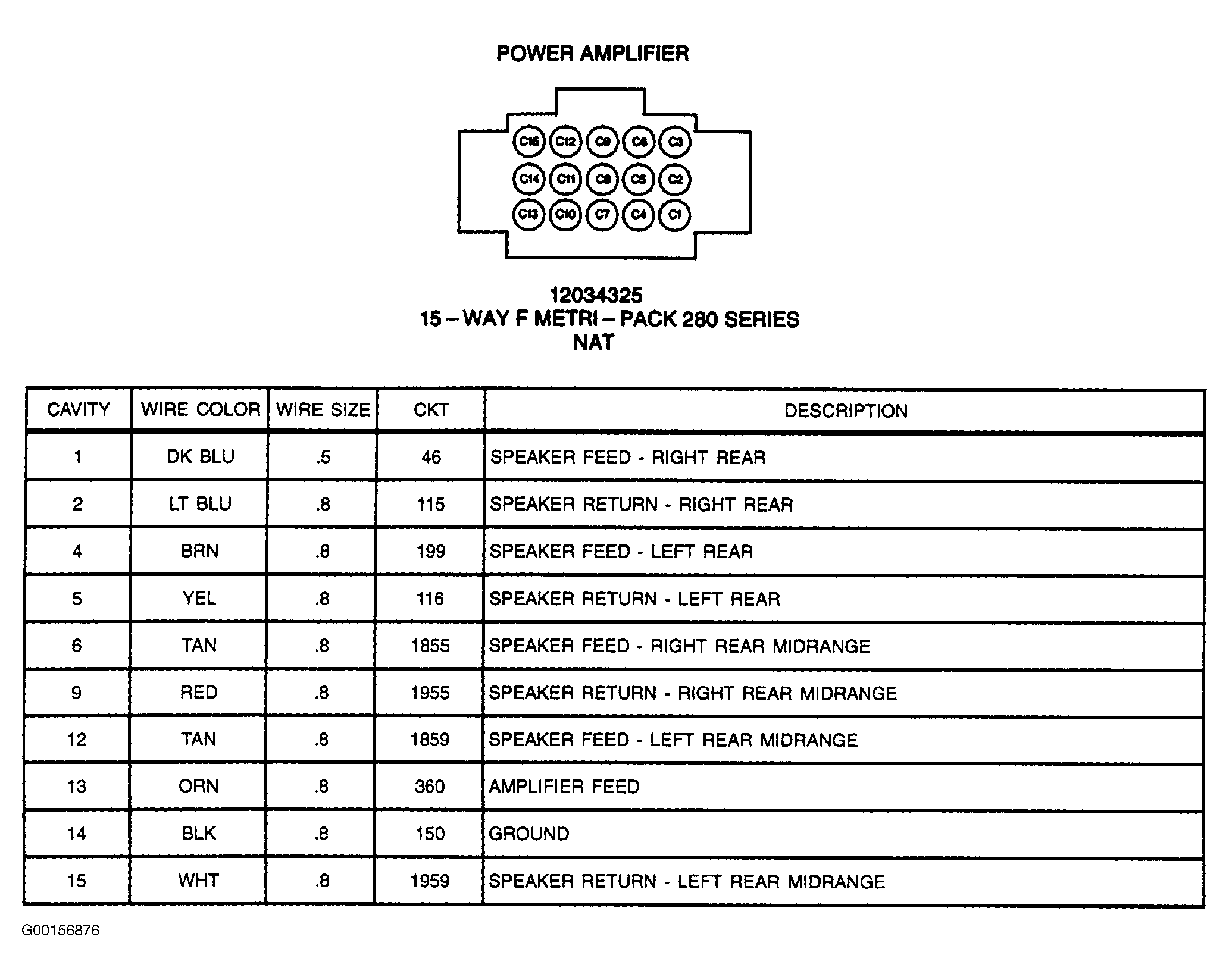

Fig 1: Power Amplifier - 15-Pin Connector, Natural
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
