Engine Fuel Sender Module (4.3L)

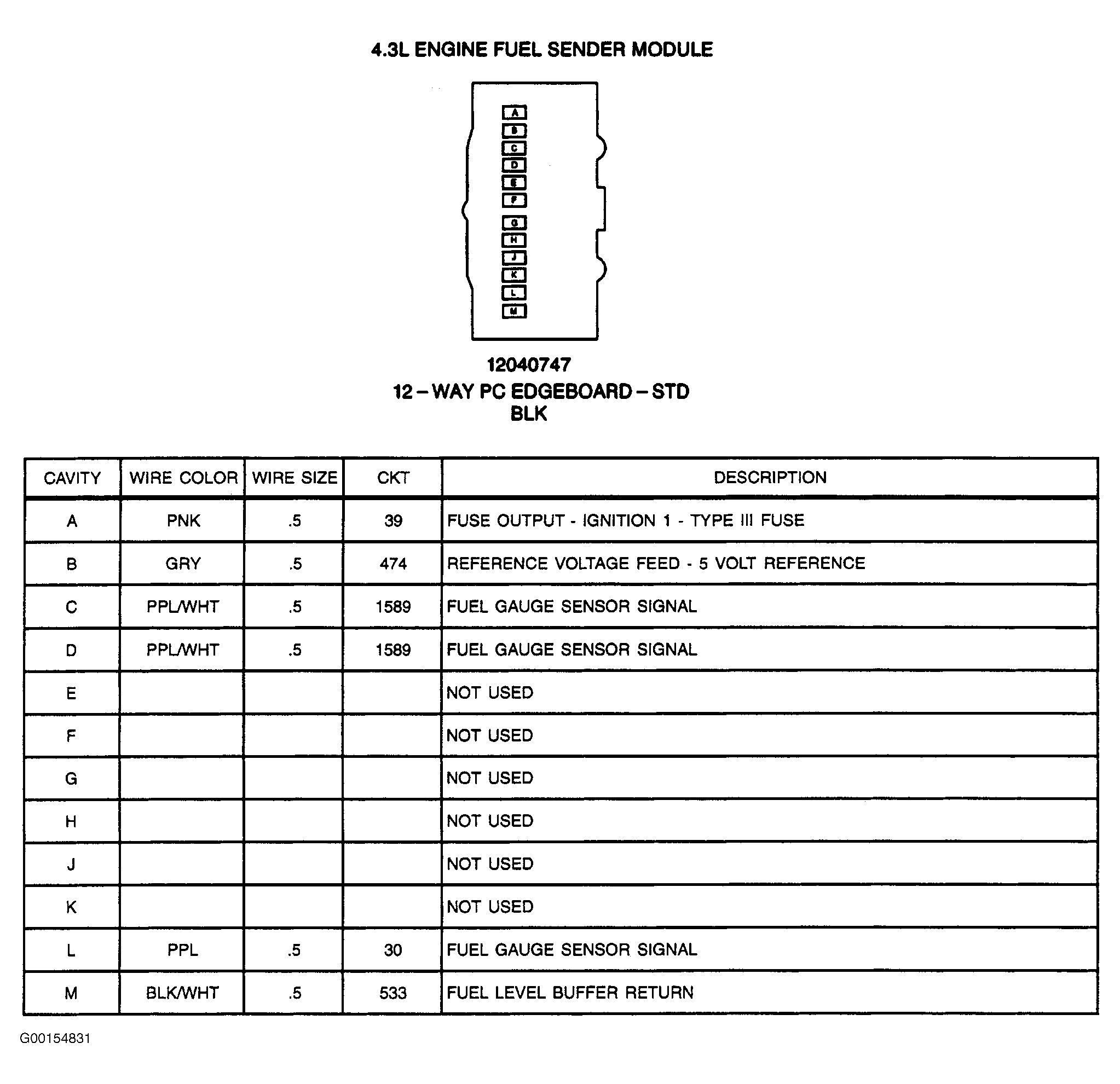

Fig 1: Engine Fuel Sender Module (4.3L) - 12-Pin Connector, Black

G00154831

Courtesy of GENERAL MOTORS CORP.
