Auxiliary Heater & A/C Control Logic Module

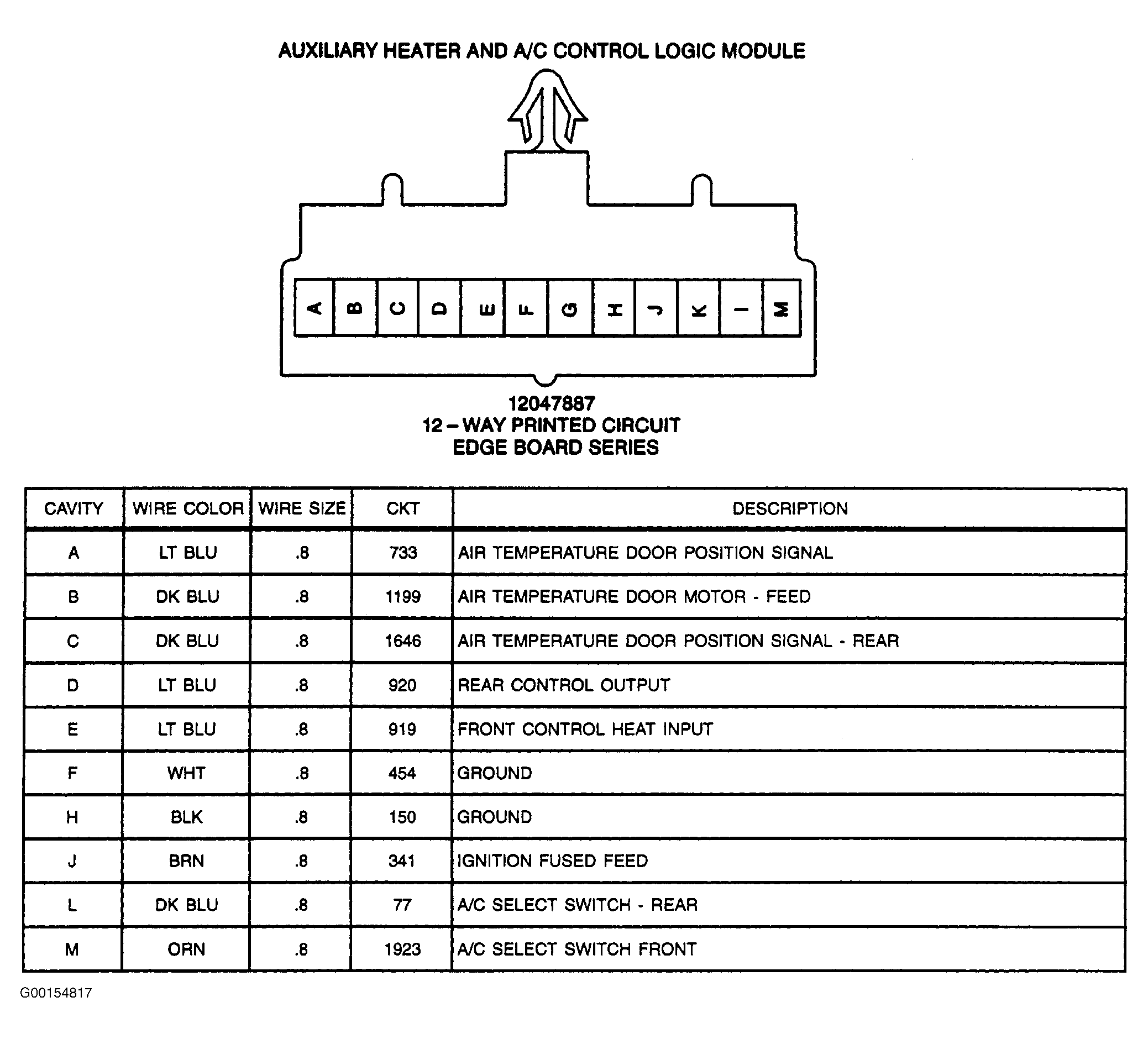

Fig 1: Auxiliary Heater & A/C Control Logic Module - 12-Pin Connector

G00154817

Courtesy of GENERAL MOTORS CORP.
