Heater & A/C Controller C2 (Temperature Control)

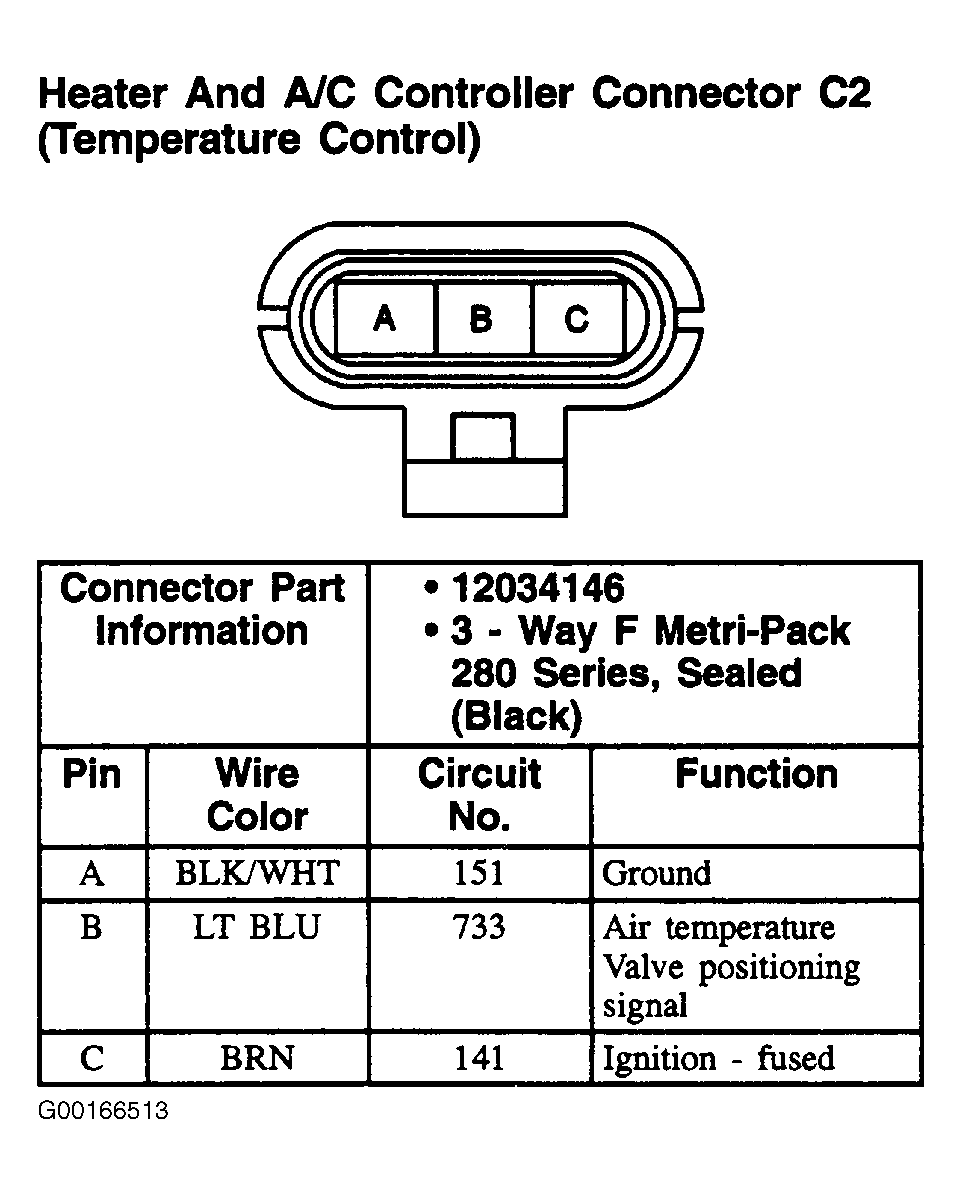

Fig 1: Heater & A/C Controller C2 (Temperature Controls) - 3-Pin Connector, Black
G00166513Courtesy of GENERAL MOTORS CORP.
