Connector Identification

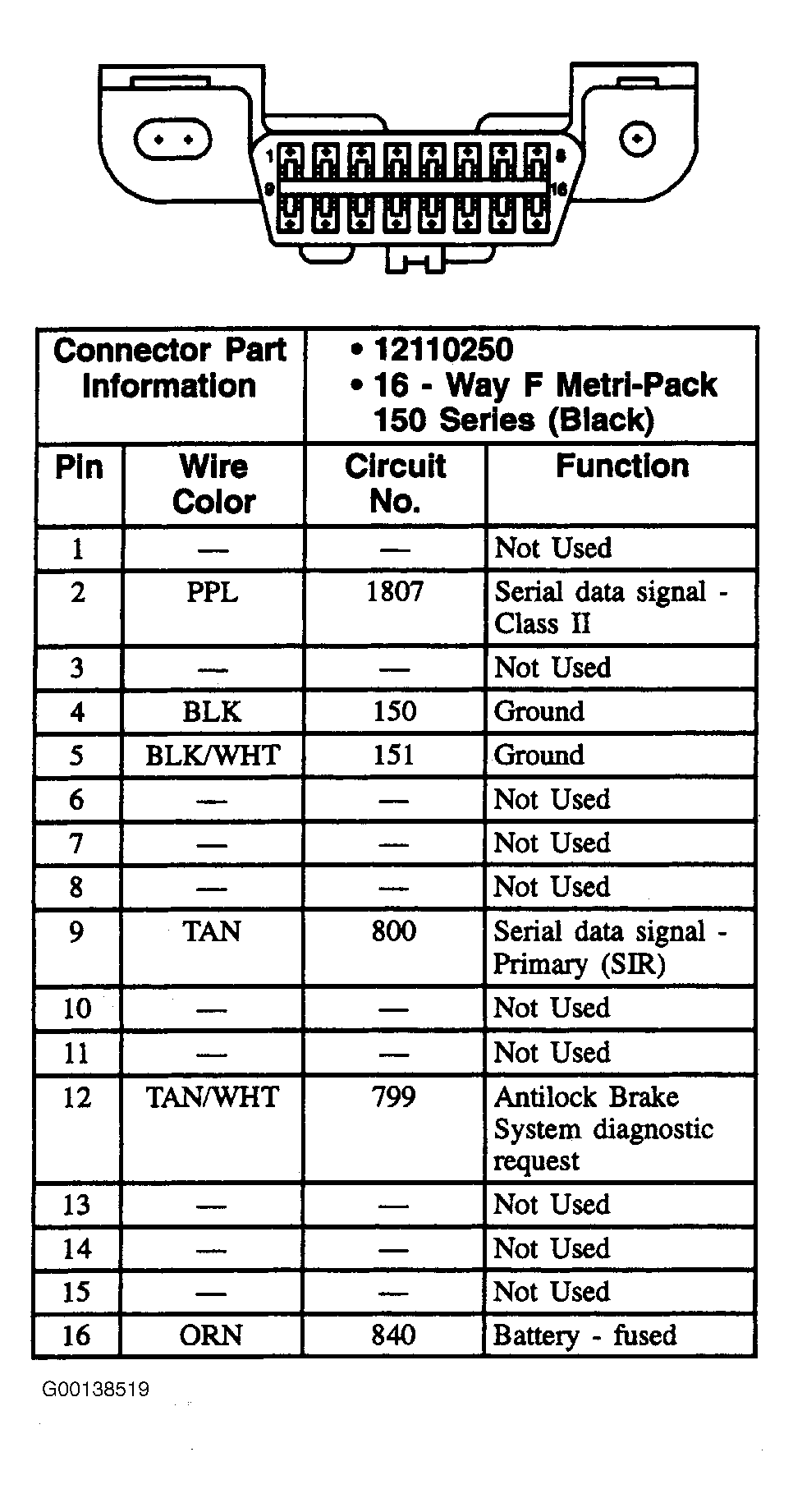

Fig 1: Identifying DLC Terminals (Base Pickup)

Courtesy of GENERAL MOTORS CORP.

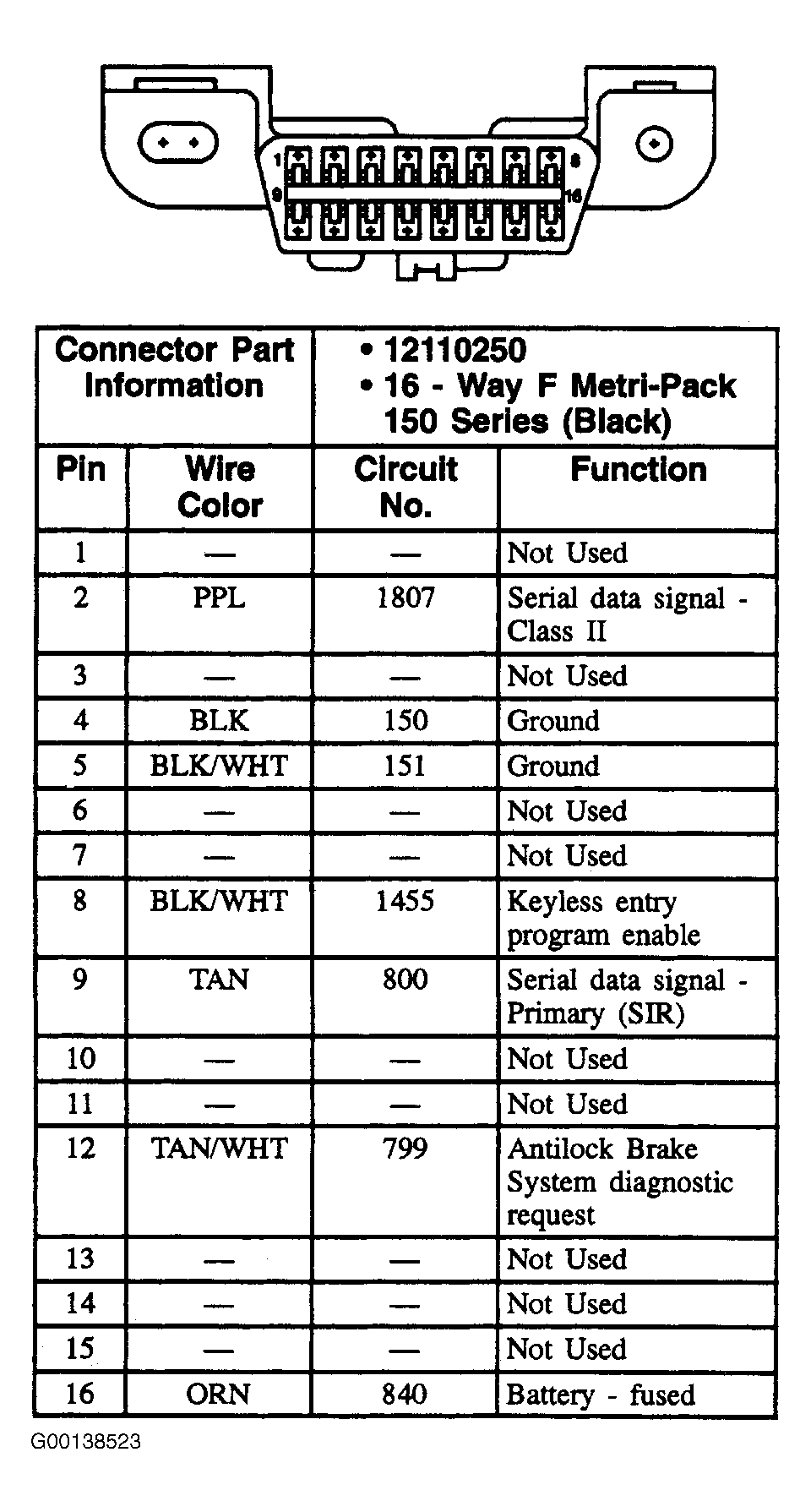

Fig 2: Identifying DLC Terminals (Non-Base Pickup 2.2L)

Courtesy of GENERAL MOTORS CORP.

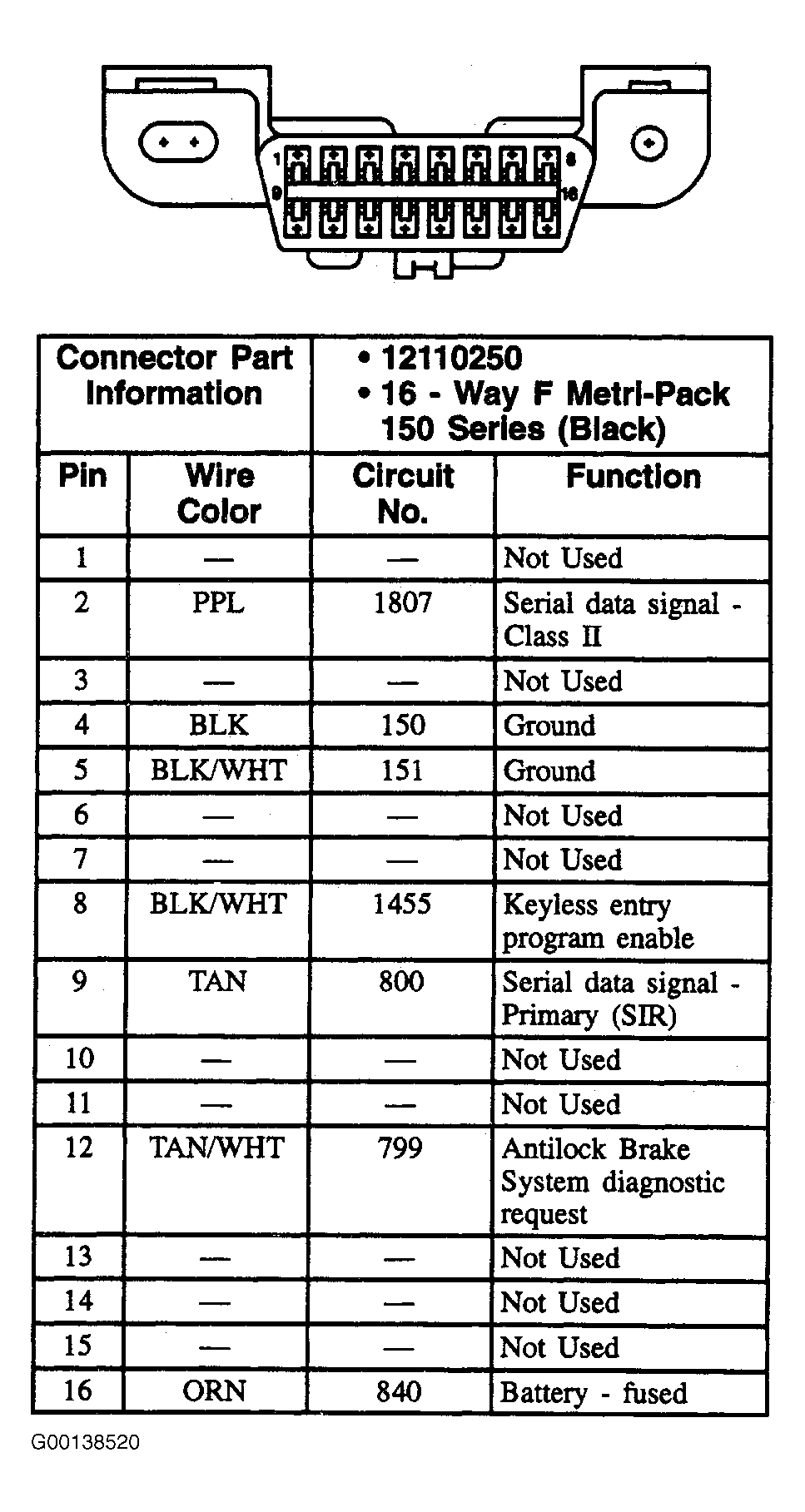

Fig 3: Identifying DLC Terminals (4.3L)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying DLC Terminals (4.3L With Electric Shift 4WD)

Courtesy of GENERAL MOTORS CORP.
