Front Side Door Lock Actuator C2 (Door Handle Switch)

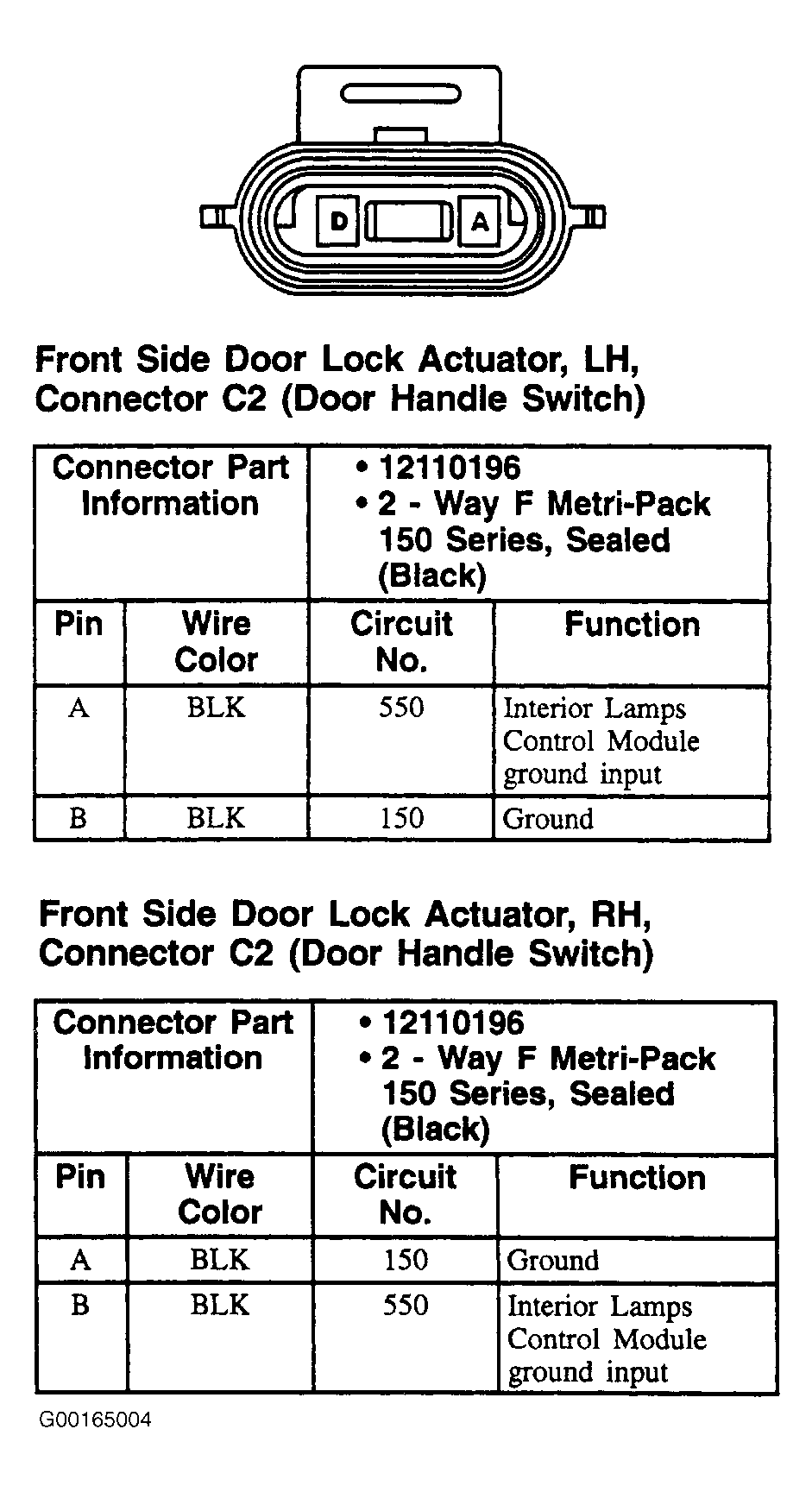

Fig 1: Front Side Door Lock Actuator C2 (Door Handle Switch) - 2-Pin Connector, Black

G00165004

Courtesy of GENERAL MOTORS CORP.
