C101 (W/O A/C)

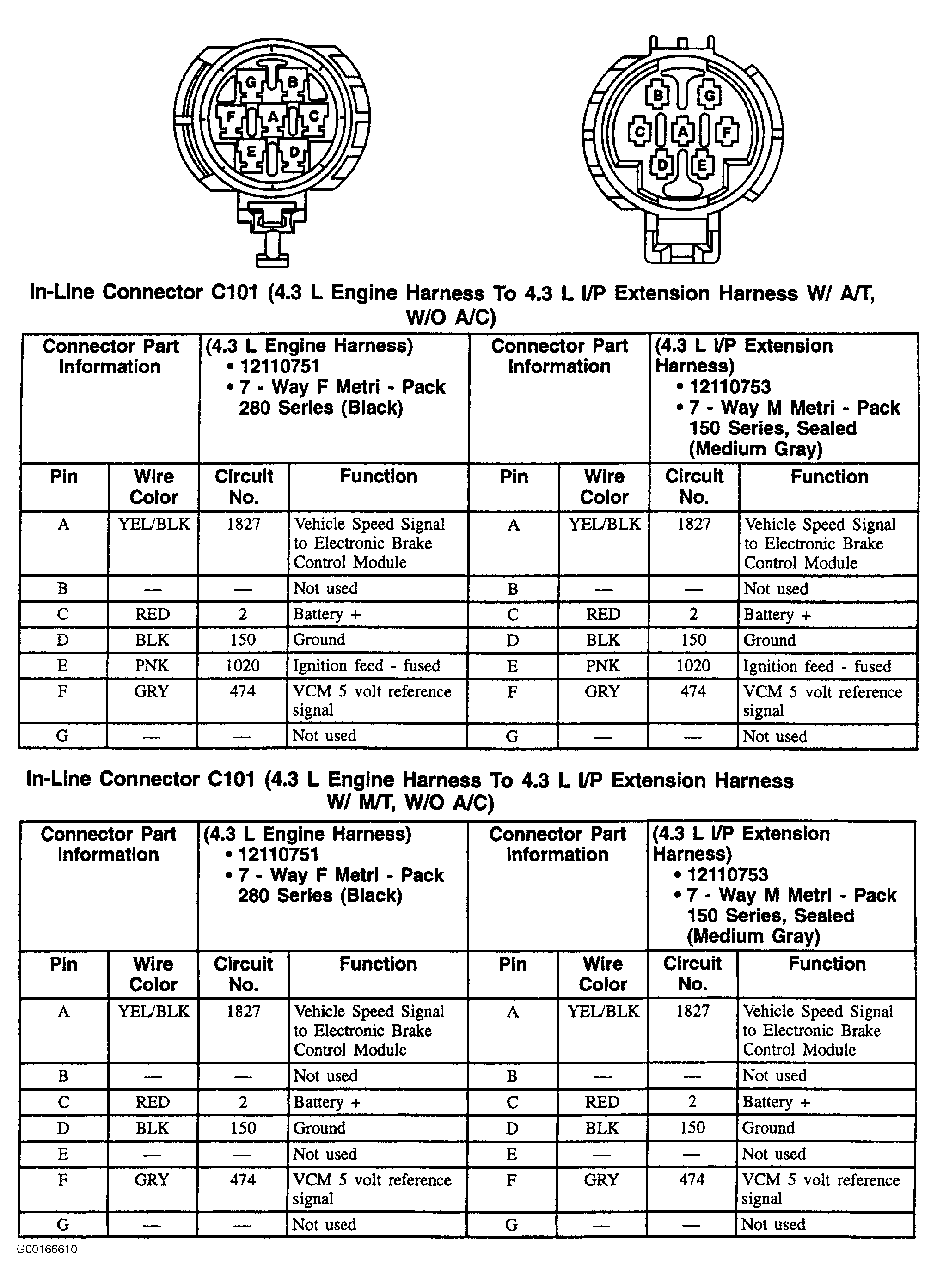

Fig 1: C101 (W/O A/C) - 7-Pin Connector, Black/Medium Gray

G00166610

Courtesy of GENERAL MOTORS CORP.
