VCM Connectors: C3

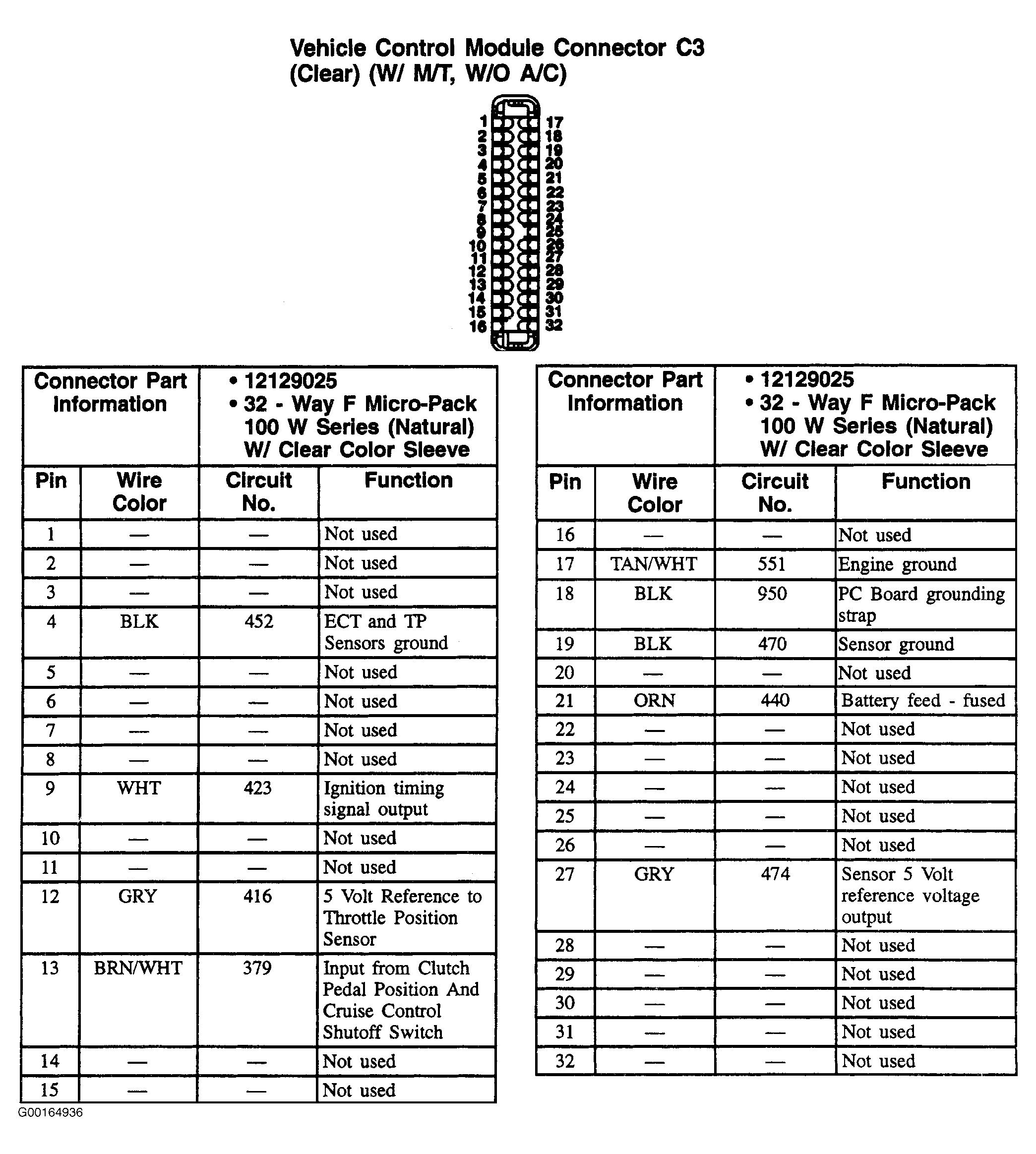

Fig 1: VCM 32-Pin Connector C3 (Clear) - With M/T, Without A/C
G00164936Courtesy of GENERAL MOTORS CORP.

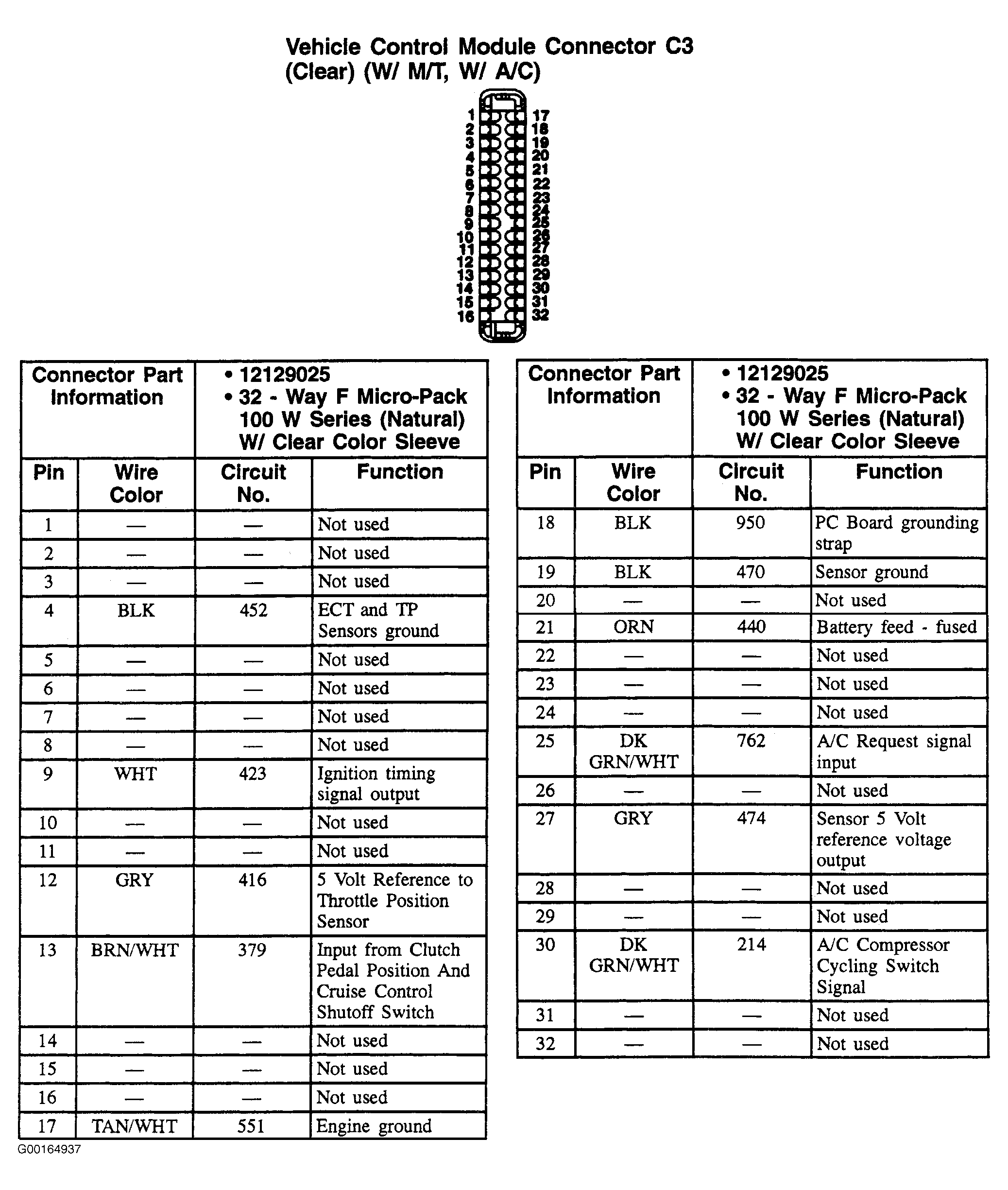

Fig 2: VCM 32-Pin Connector C3 (Clear) - With M/T, With A/C
G00164937Courtesy of GENERAL MOTORS CORP.

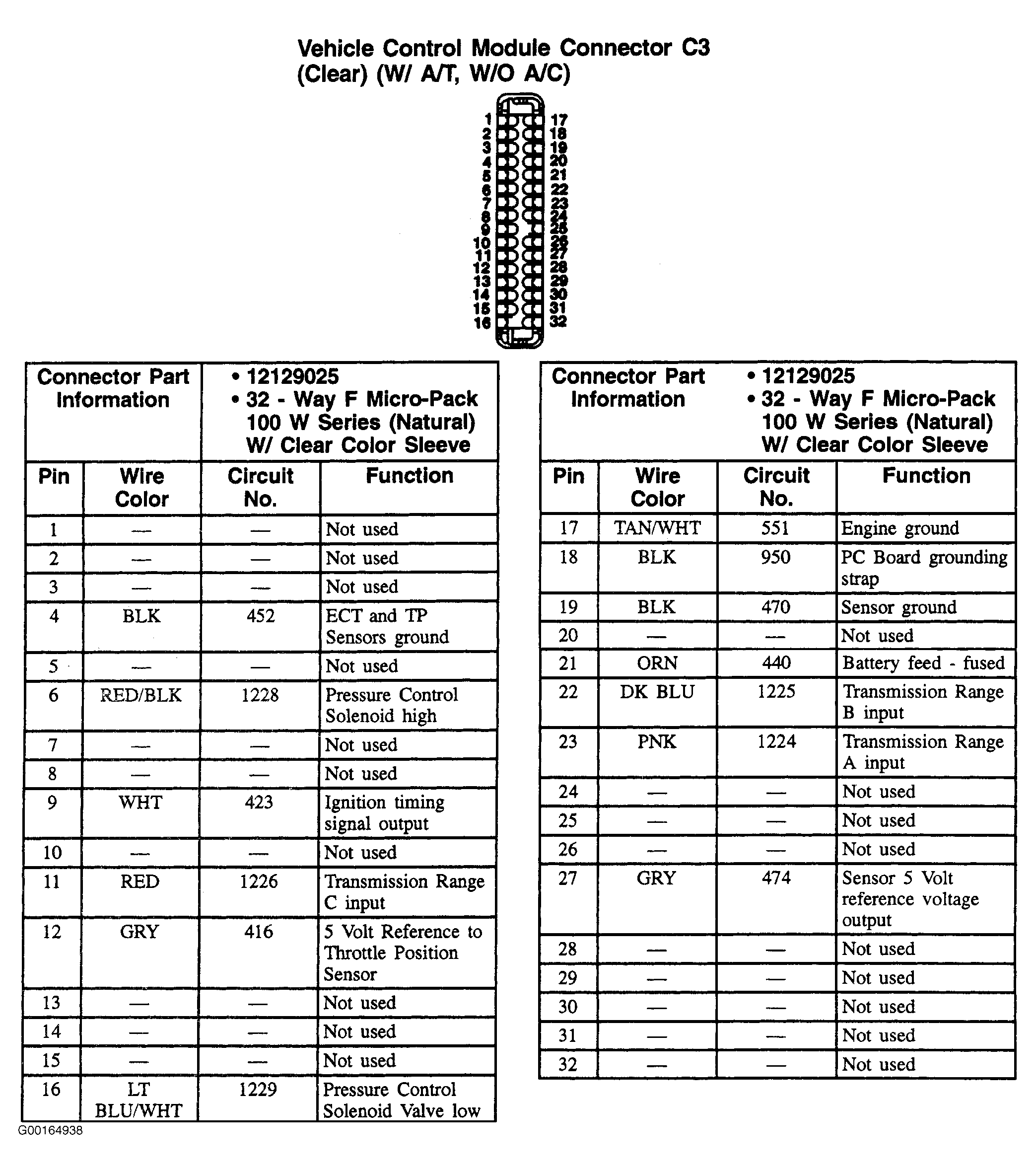

Fig 3: VCM 32-Pin Connector C3 (Clear) - With A/T, Without A/C
G00164938Courtesy of GENERAL MOTORS CORP.

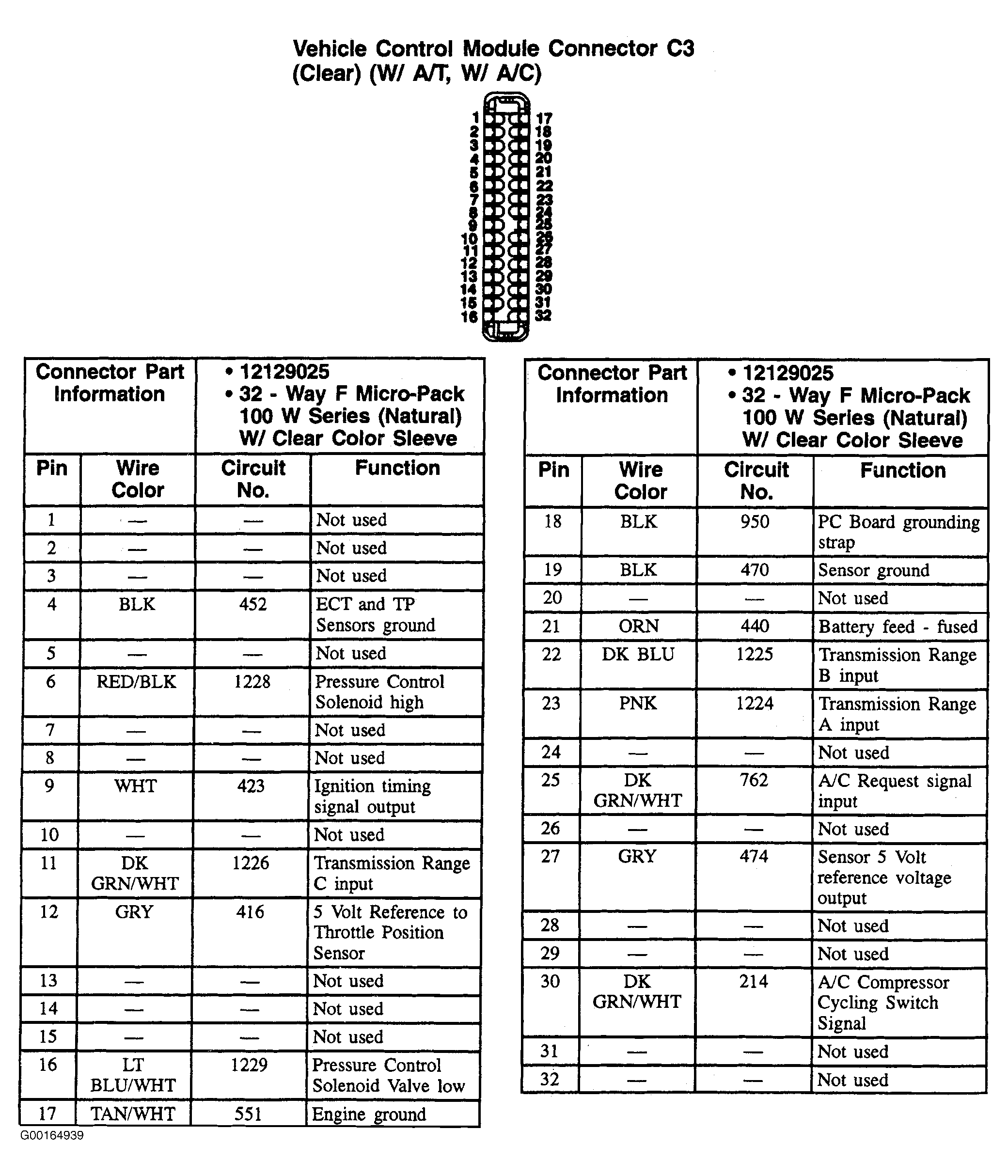

Fig 4: VCM 32-Pin Connector C3 (Clear) - With A/T, With A/C
G00164939Courtesy of GENERAL MOTORS CORP.
