VCM Connectors: C1

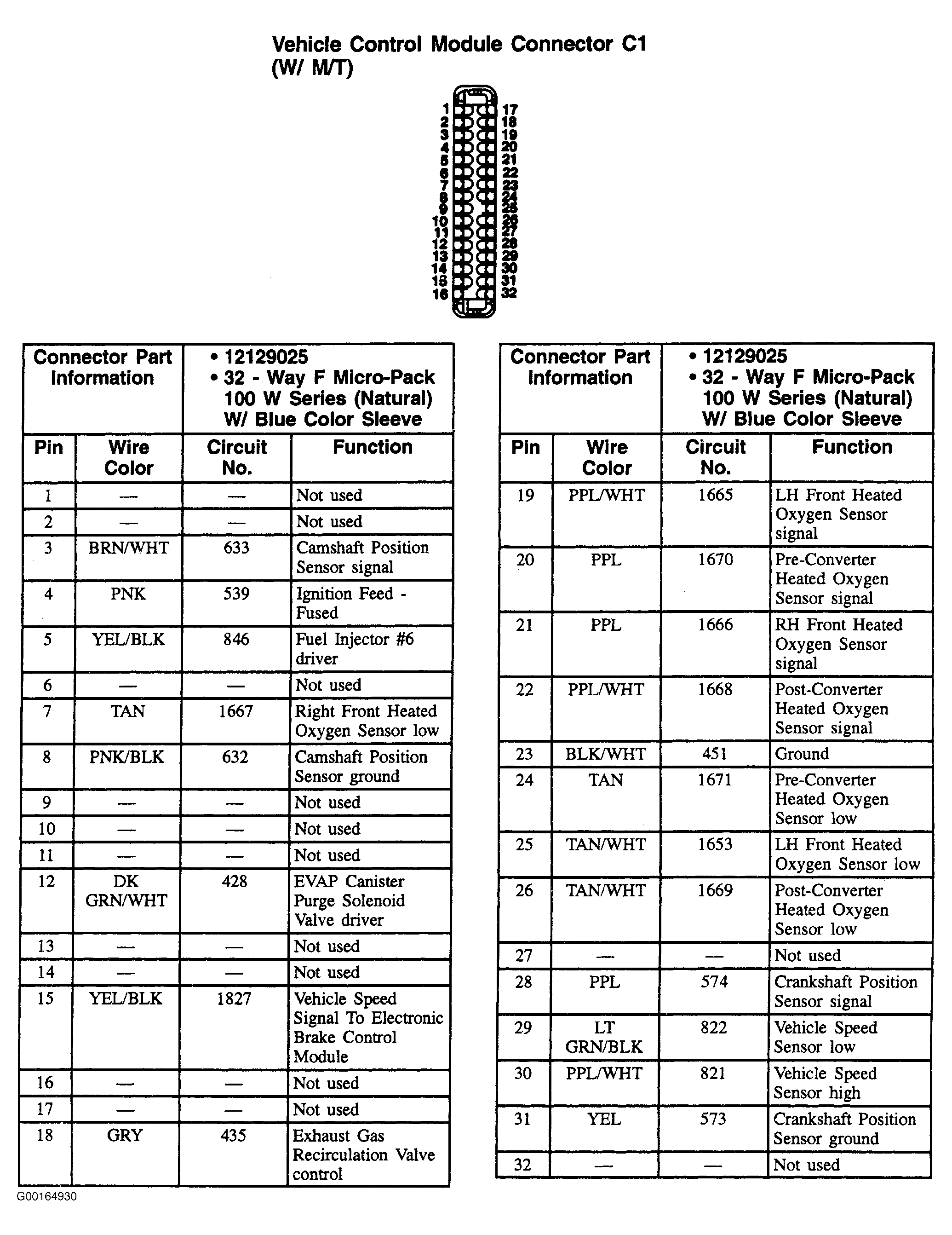

Fig 1: VCM 32-Pin Connector C1 (Blue) - With M/T

G00164930

Courtesy of GENERAL MOTORS CORP.

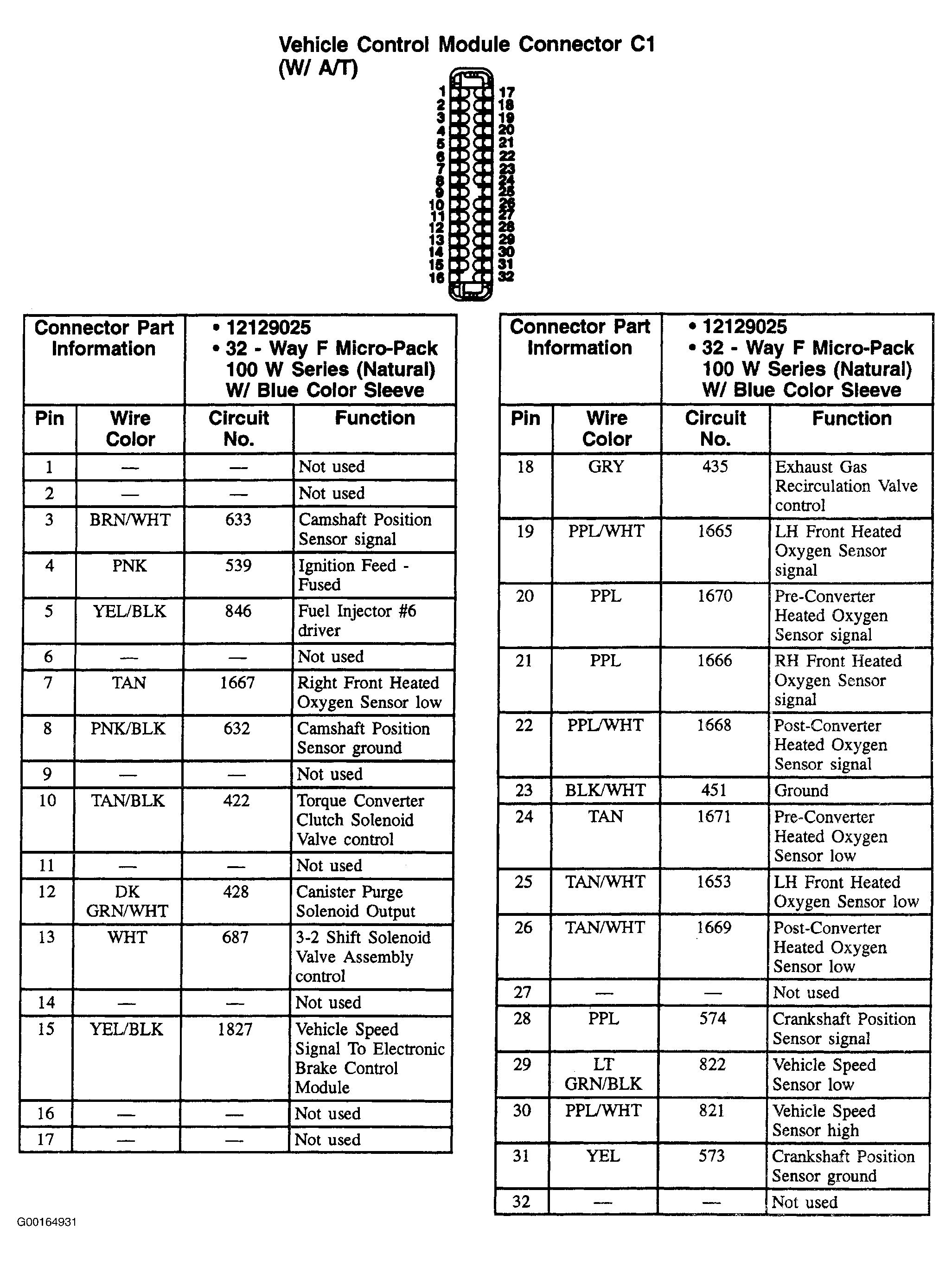

Fig 2: VCM 32-Pin Connector C1 (Blue) - With A/T

G00164931

Courtesy of GENERAL MOTORS CORP.
