Home >> GMC >> 1997 >> Jimmy 2D Utility, 4WD, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Windshield Washer Pump (Rear - Utility)

Windshield Washer Pump (Rear - Utility)

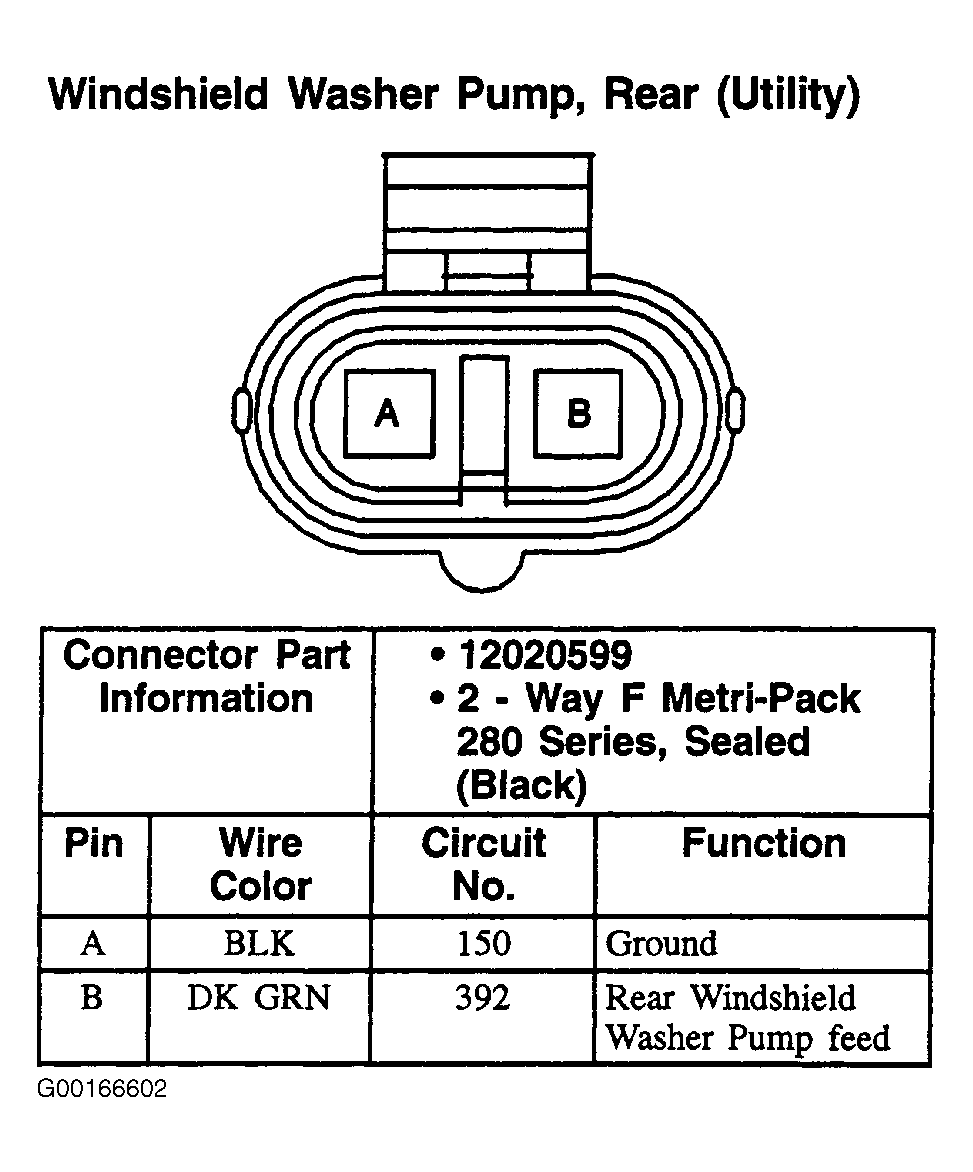

Fig 1: Windshield Washer Pump (Rear - Utility) - 2-Pin Connector, Black

G00166602

Courtesy of GENERAL MOTORS CORP.
