TCC Brake & Cruise Control Release Switch

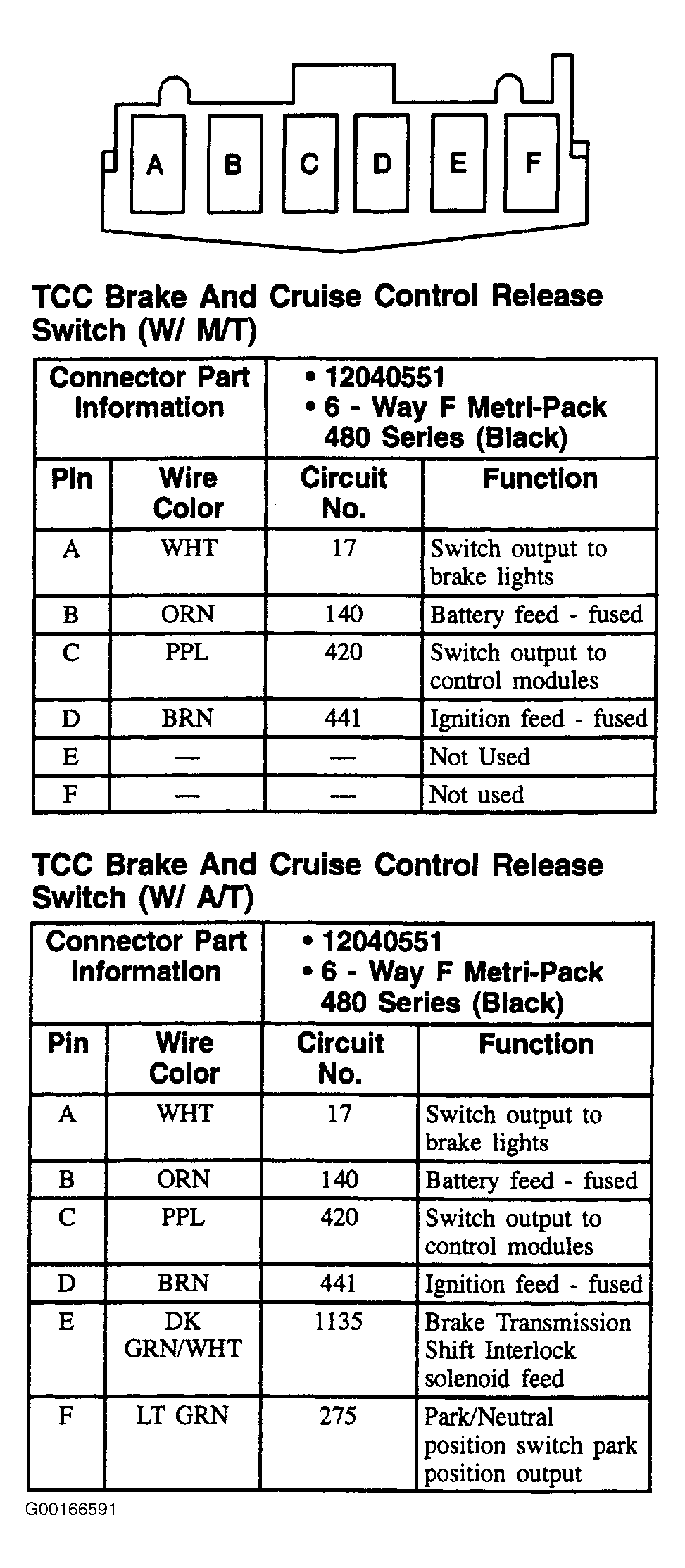

Fig 1: TCC Brake & Cruise Control Release Switch - 6-Pin Connector, Black

G00166591

Courtesy of GENERAL MOTORS CORP.
