GMC
>>
1997
>>
Jimmy 2D Utility, 4WD, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Rear Window Wiper & Washer Switch
Rear Window Wiper & Washer Switch

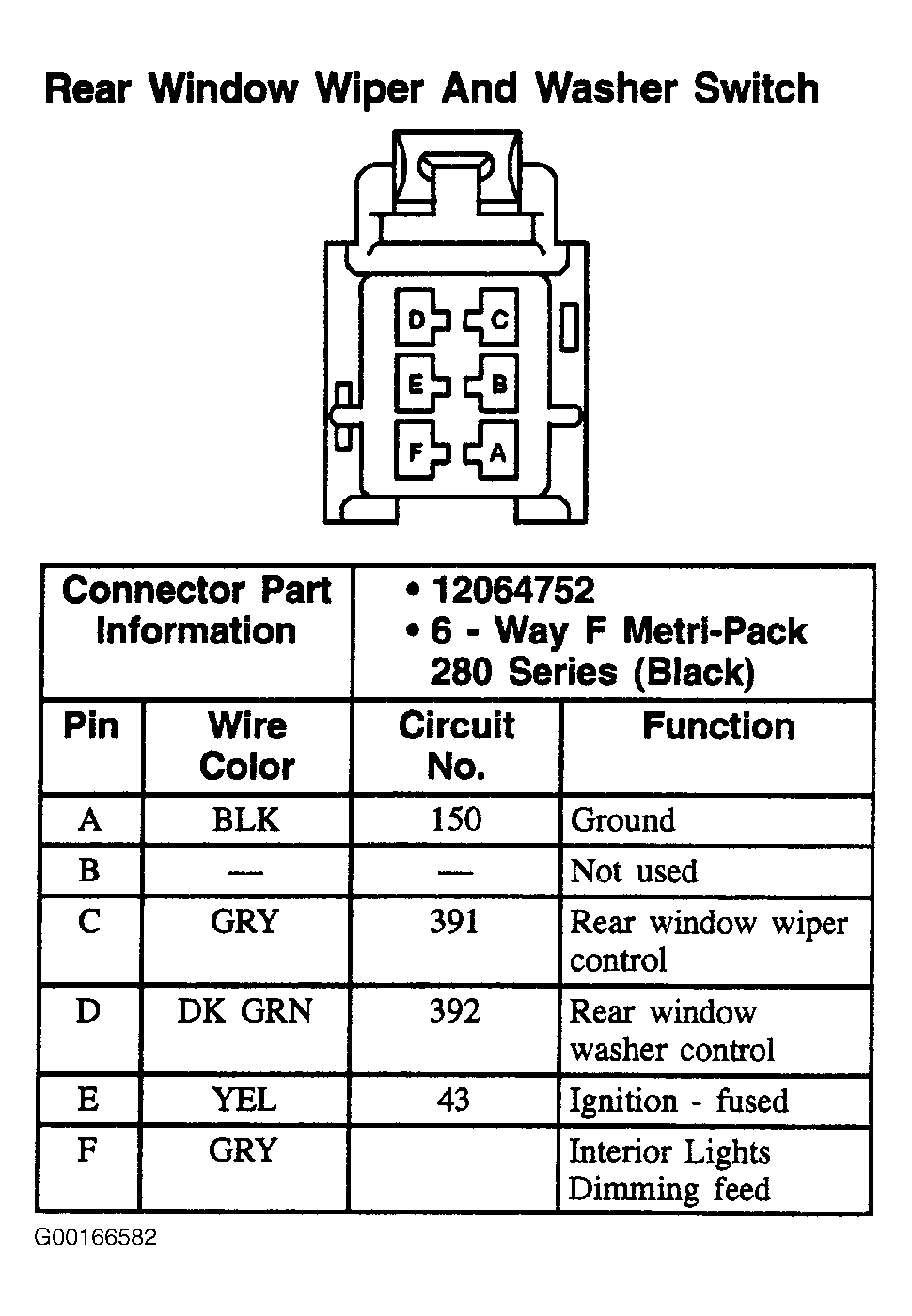

Fig 1: Rear Window Wiper & Washer Switch - 6-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
