Manifold Absolute Pressure Sensor (2.2L)

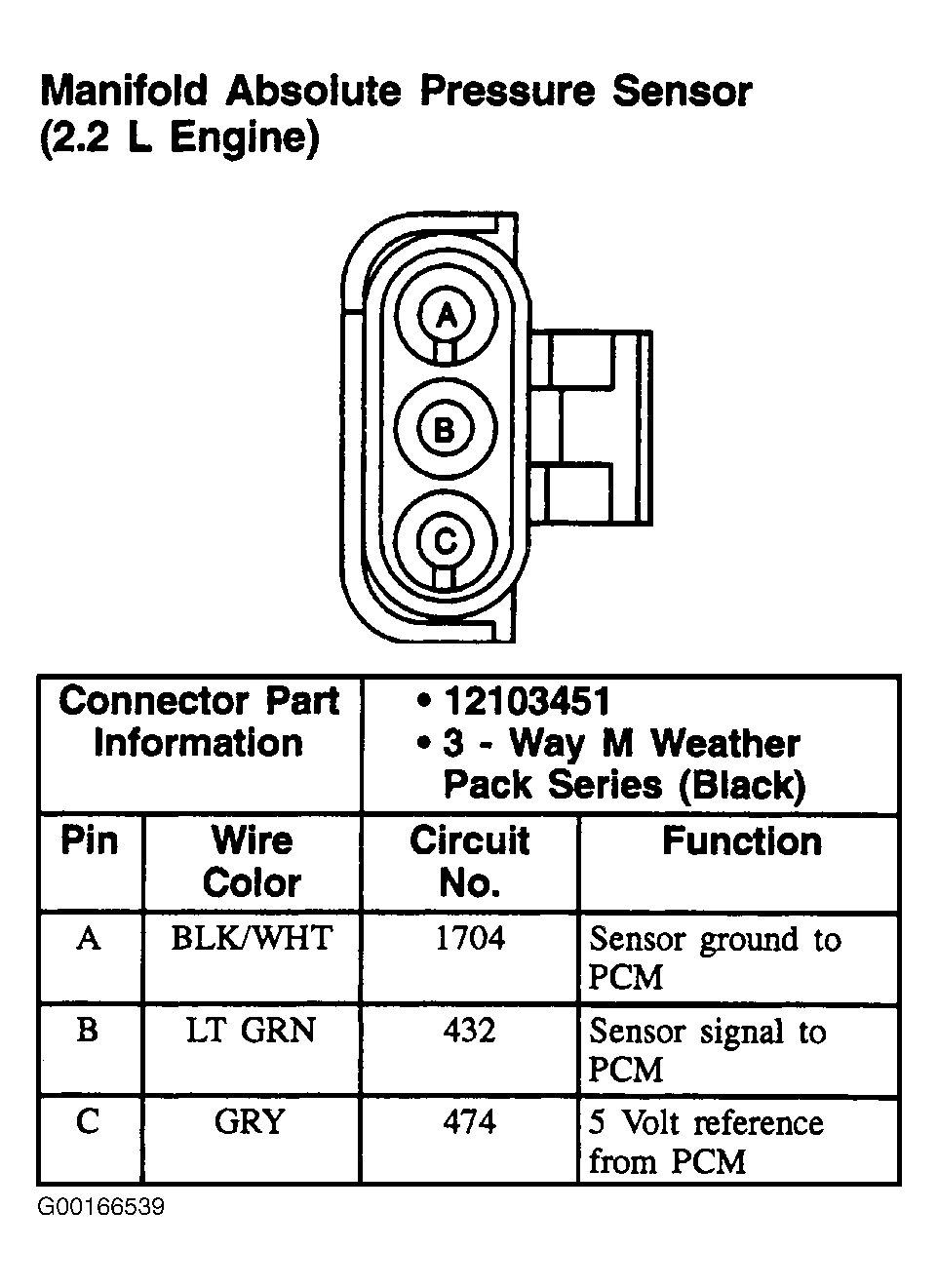

Fig 1: Manifold Absolute Pressure Sensor (2.2L) - 3-Pin Connector, Black

G00166539

Courtesy of GENERAL MOTORS CORP.
