Connector Terminal Identification
>>
Inside Rear View Mirror (Map Lamps)
Inside Rear View Mirror (Map Lamps)

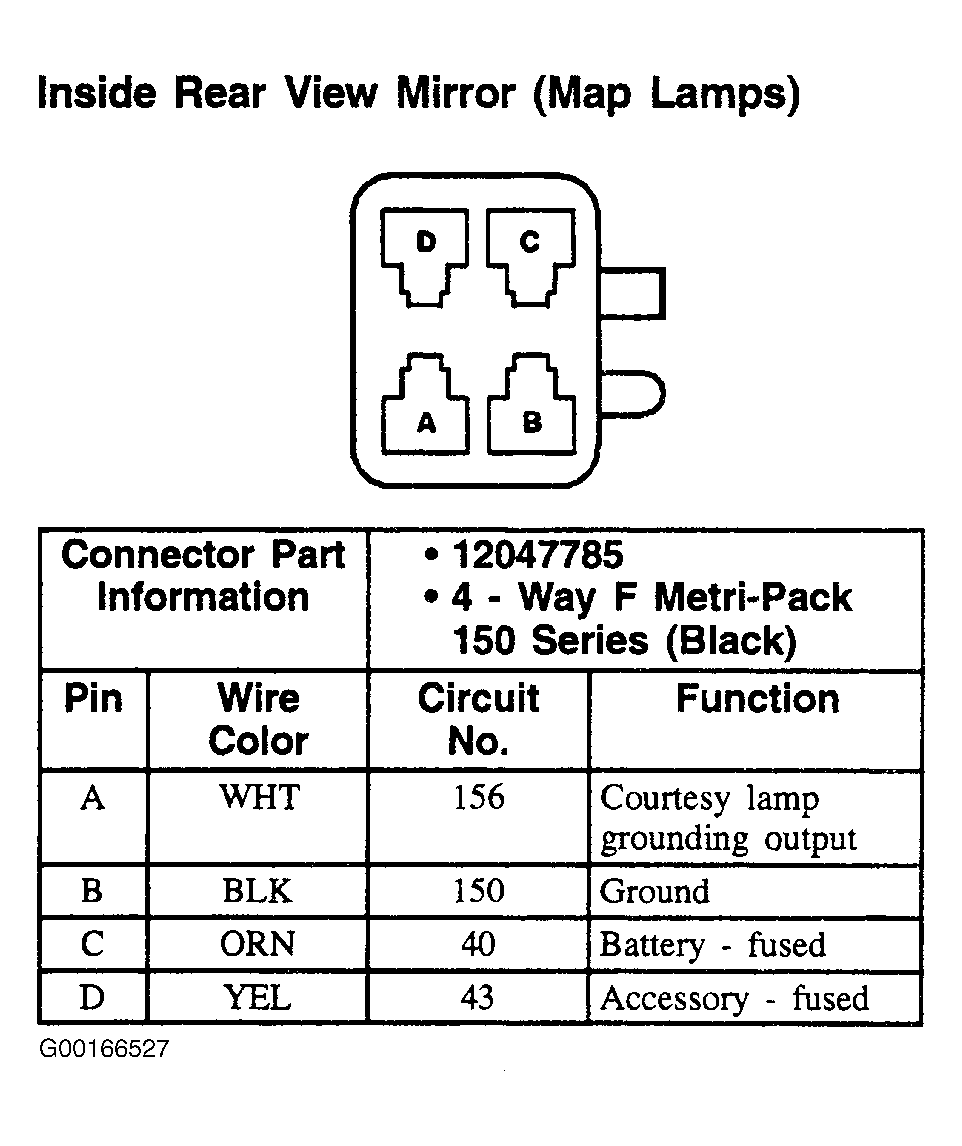

Fig 1: Inside Rear View Mirror (Map Lamps) - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
