Four Wheel Drive Indicator Switch (W/ Manual Shift 4WD)
Four Wheel Drive Indicator Switch (W/ Manual Shift 4WD)

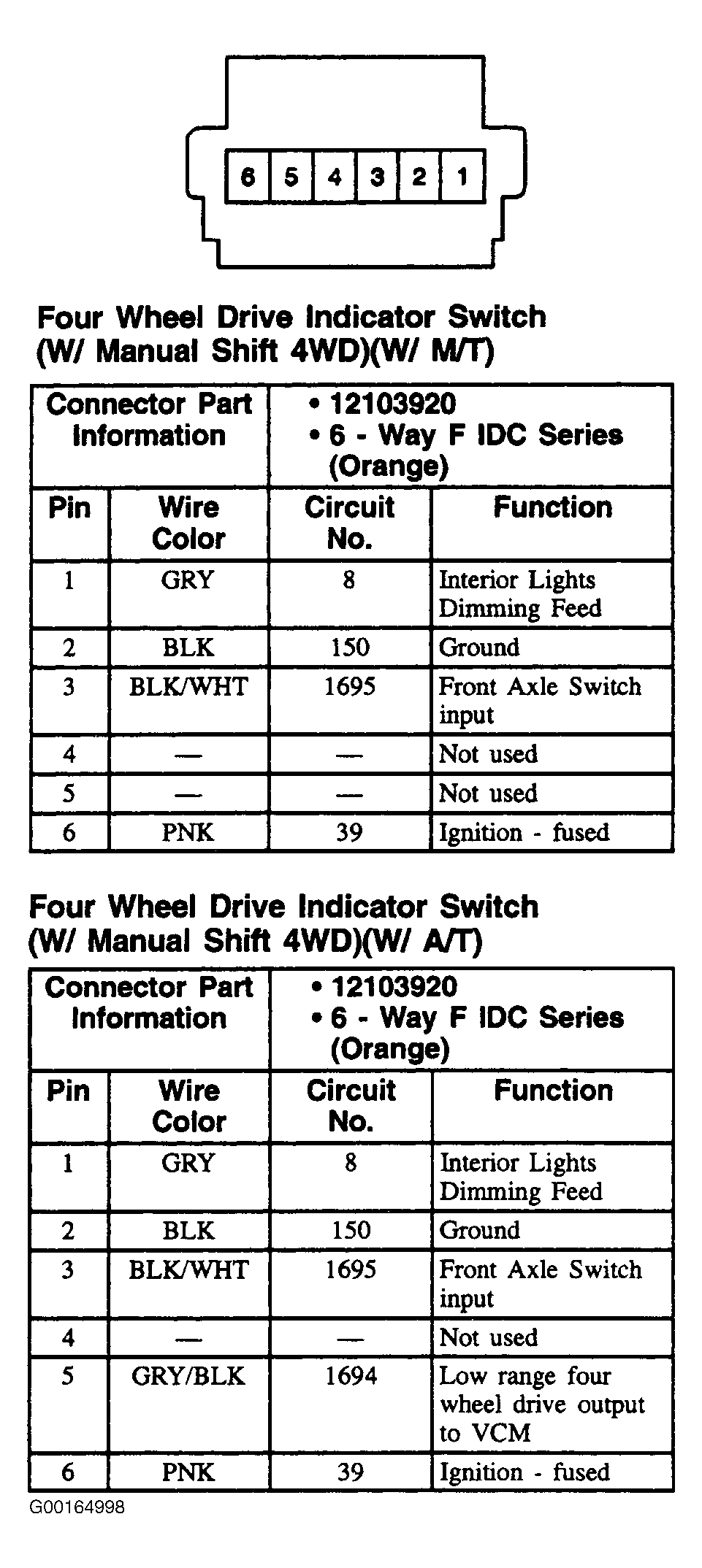

Fig 1: Four Wheel Drive Indicator Switch (W/ Manual Shift 4WD) - 6-Pin Connector, Orange
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
