Engine Coolant Temperature Gauge Sensor (4.3L)

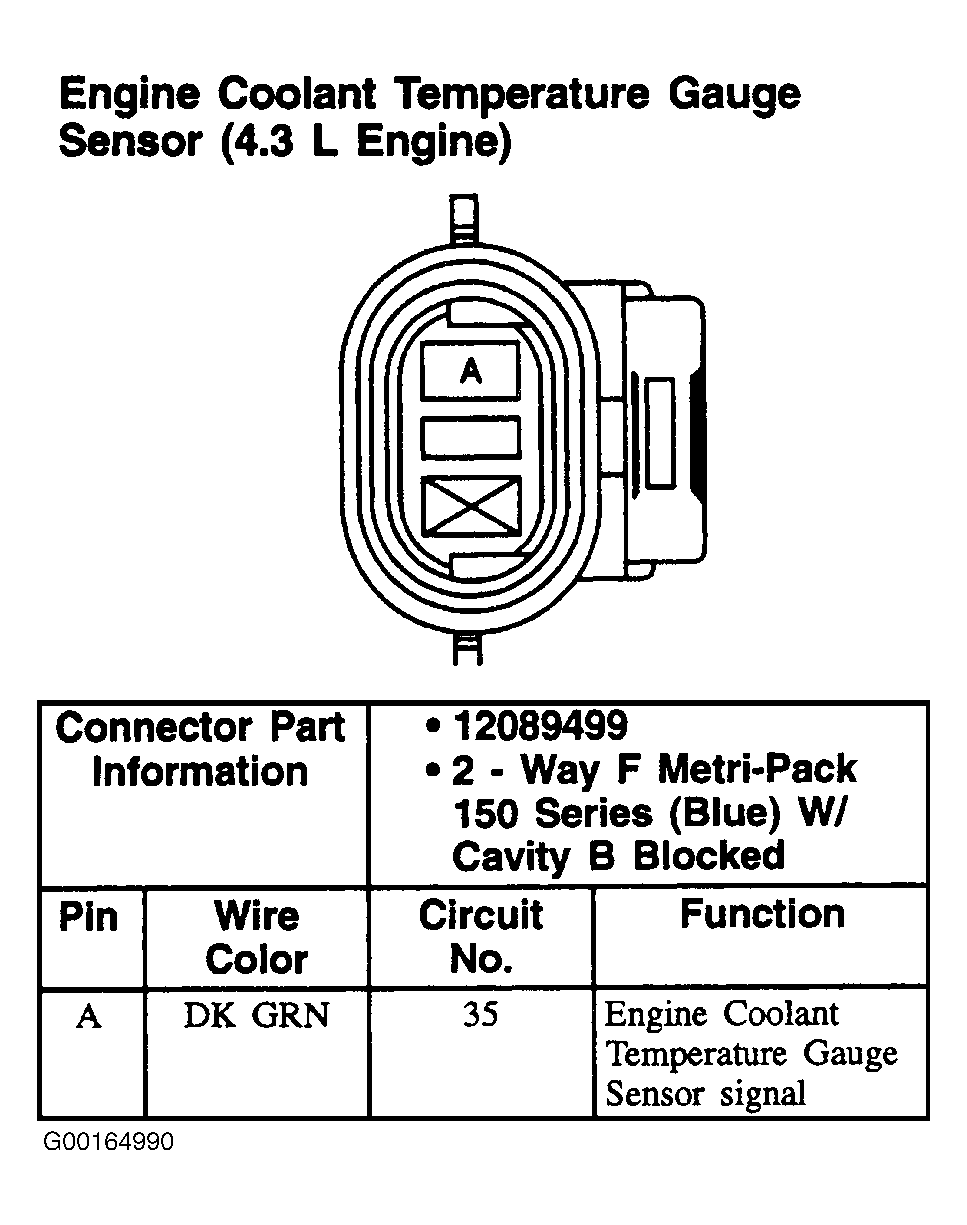

Fig 1: Engine Coolant Temperature Gauge Sensor (4.3L) - 2-Pin Connector, Blue

G00164990

Courtesy of GENERAL MOTORS CORP.
