Connector Terminal Identification
>>
Blower Motor (W/ Imp)
Blower Motor (W/ Imp)

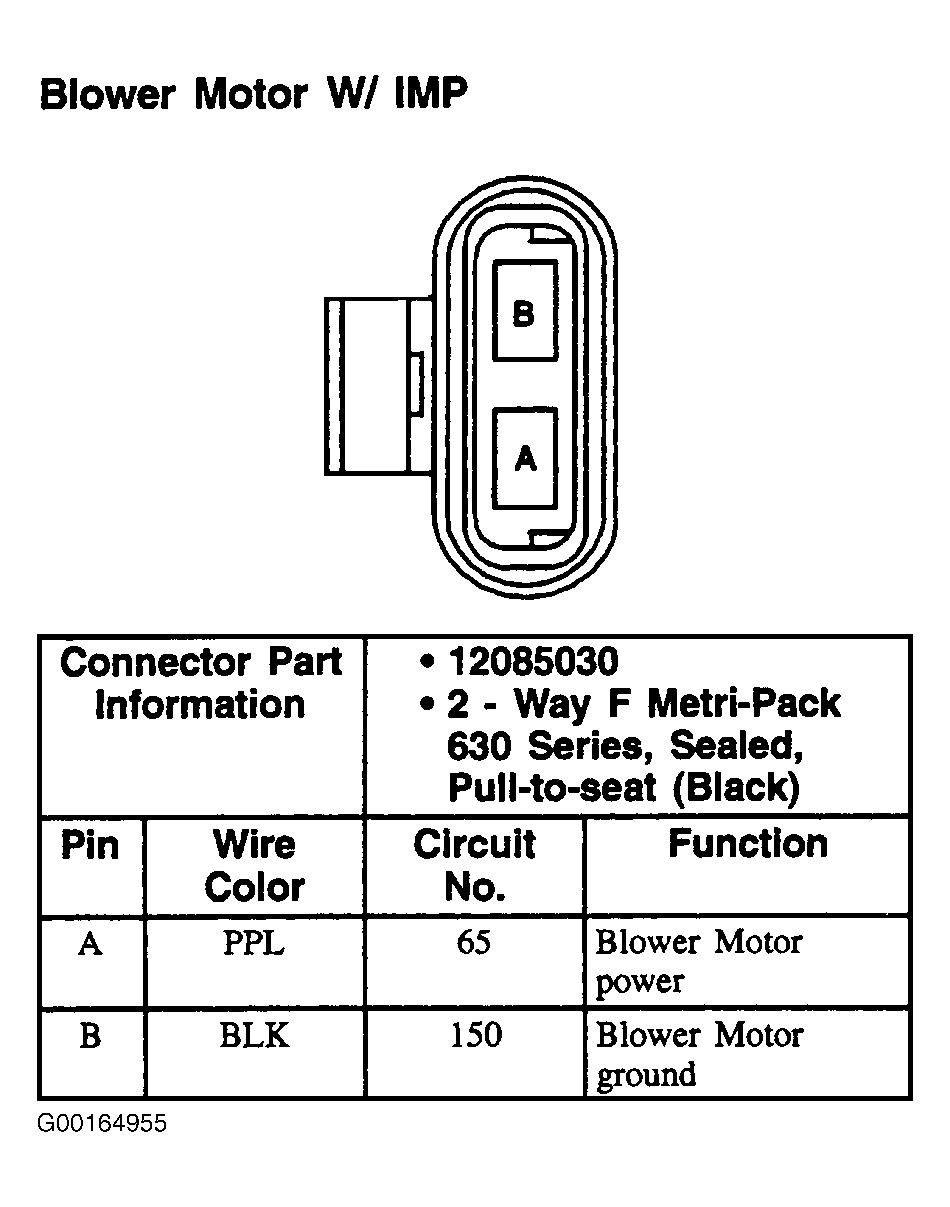

Fig 1: Blower Motor (W/ IMP) - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
