Backup Lamp Switch (Manual Transmission)

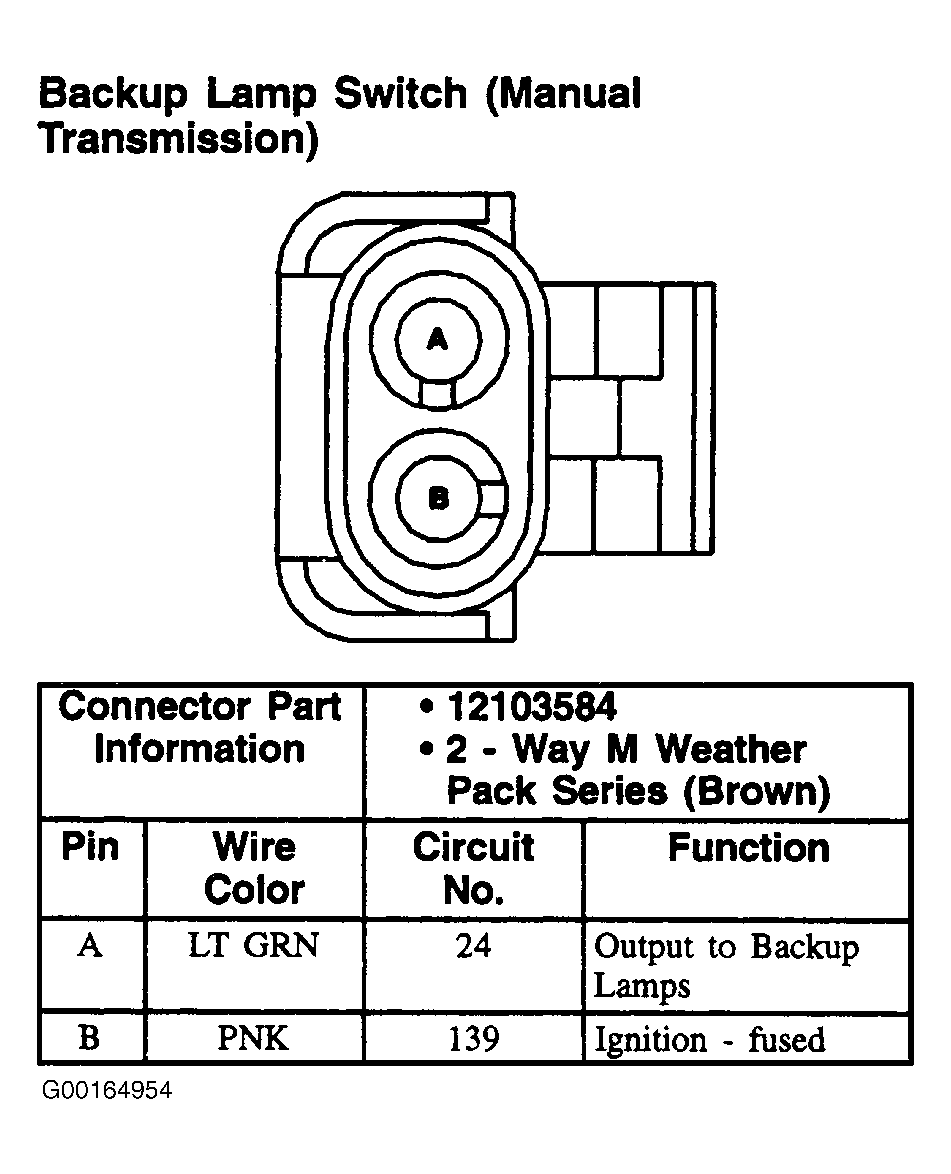

Fig 1: Backup Lamp Switch (Manual Transmission) - 2-Pin Connector, Brown

G00164954

Courtesy of GENERAL MOTORS CORP.
