Instrument Panel: Description: Notes

Instrument cluster uses analog speedometer and gauges. See Fig 1 . Indicator lights, plugged into back of cluster, are serviceable, but no other components on cluster are serviceable. If any component on cluster is faulty, replace cluster.

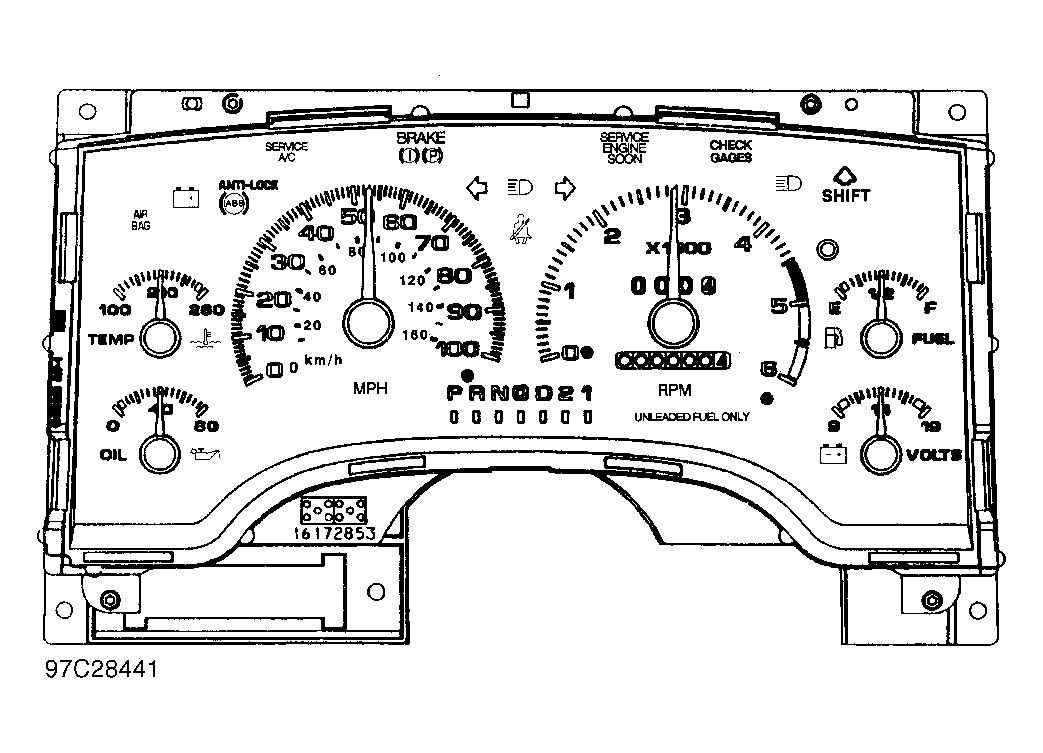

Fig 1: Identifying Instrument Components
G97C28441Courtesy of GENERAL MOTORS CORP.
WARNING: If BRAKE light is on, ensure brake hydraulic system is okay before driving vehicle.
