Connectors C100 To C400: C301

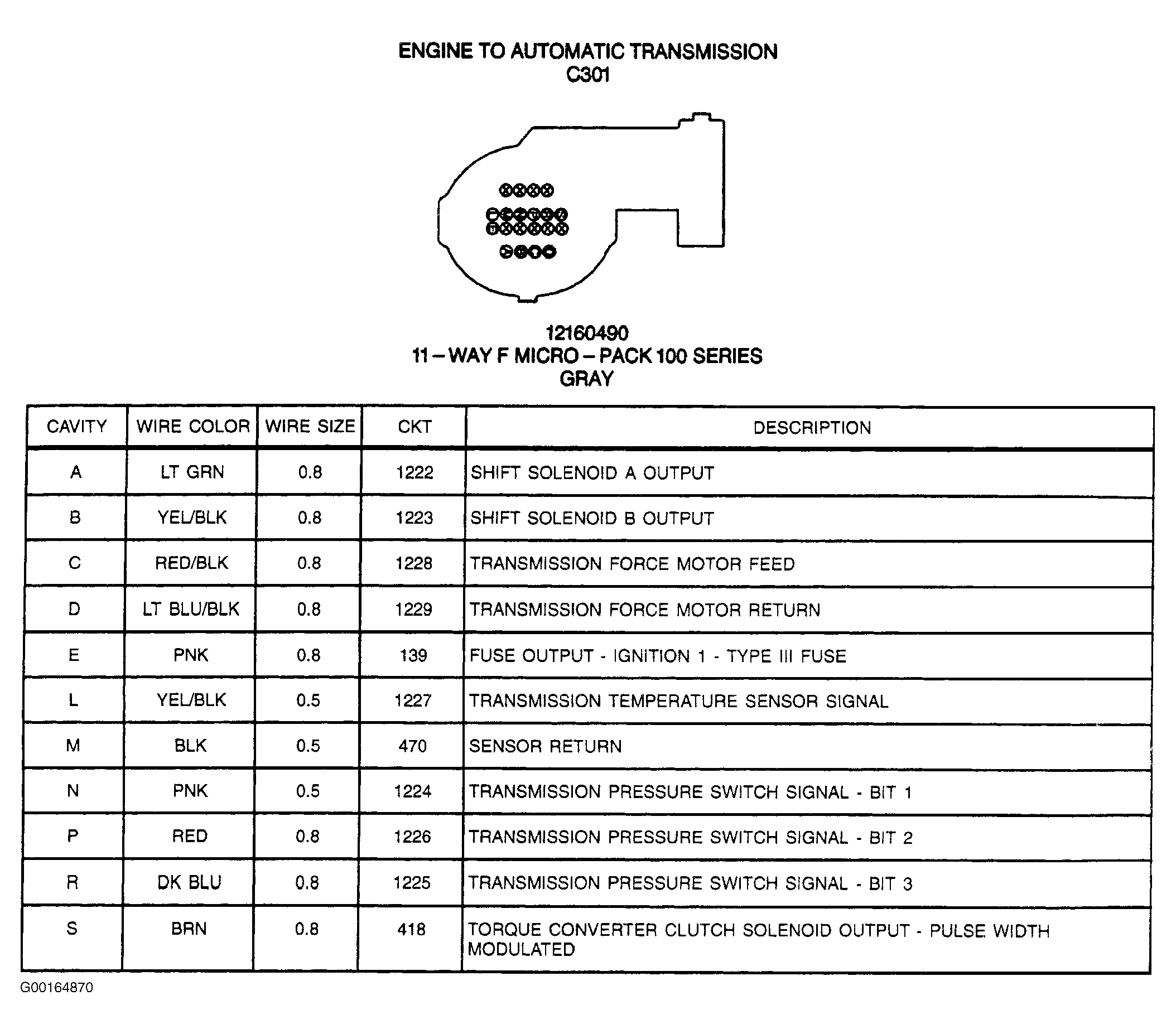

Fig 1: C301 (Commercial Chassis) - 20-Pin Connector, Gray
G00164870Courtesy of GENERAL MOTORS CORP.

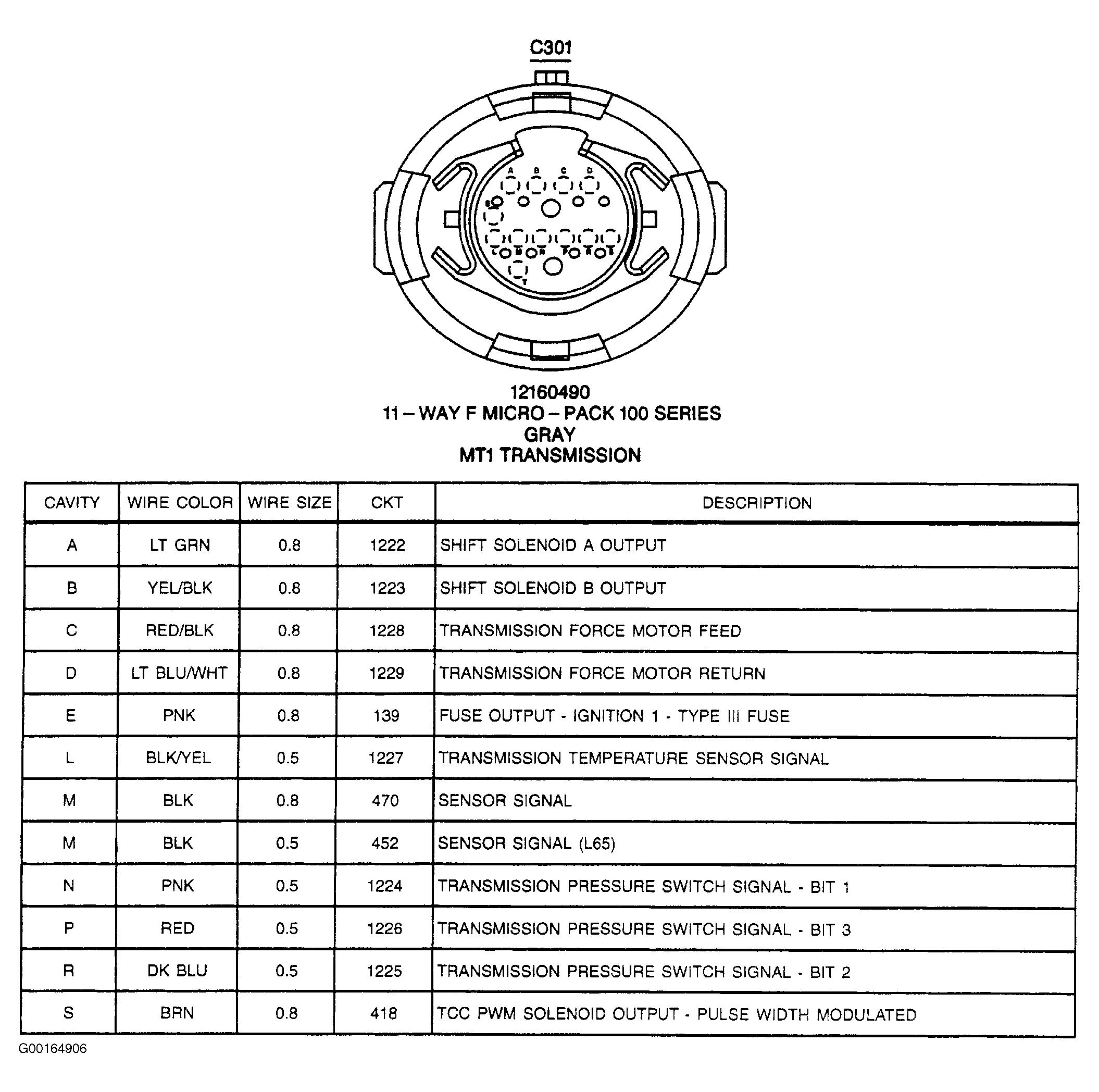

Fig 2: C301 (Motor Home Chassis) - 12-Pin Connector, Gray
G00164906Courtesy of GENERAL MOTORS CORP.
