Cruise Control Module (L29, L19 & Mt1)

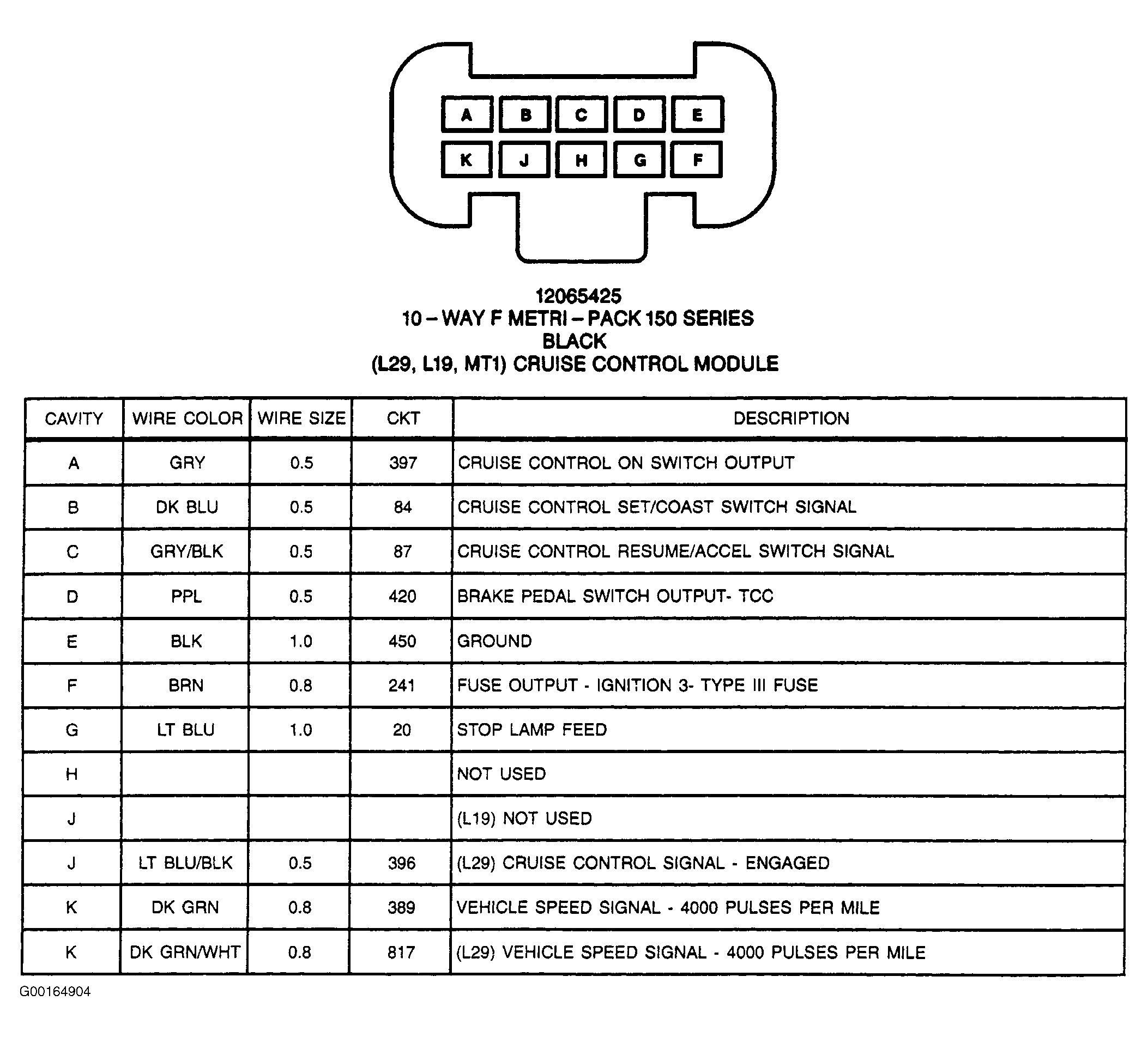

Fig 1: Cruise Control Module (L29, L19 & MT1) - 10-Pin Connector, Black

G00164904

Courtesy of GENERAL MOTORS CORP.
