UART Data Line Diagnosis
Refer to flowchart. See
Fig 1
.

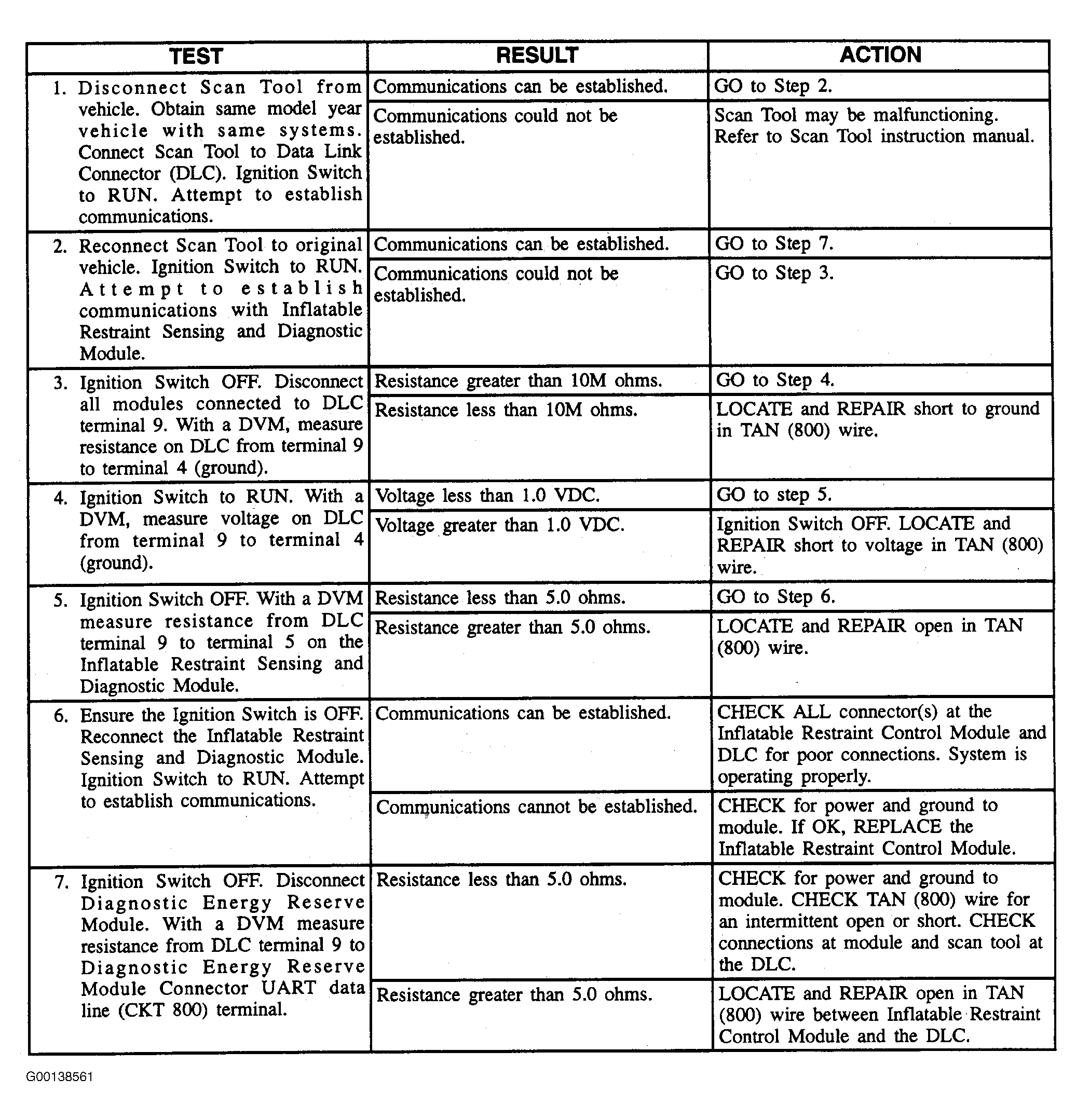

Fig 1: Universal Asynchronous Receiver Transmitter Data Line Diagnostic Flowchart
Courtesy of GENERAL MOTORS CORP.
