TCCM Data Line Diagnosis

If TCCM will not flash diagnostic trouble codes, refer to flowchart. See Fig 1 .

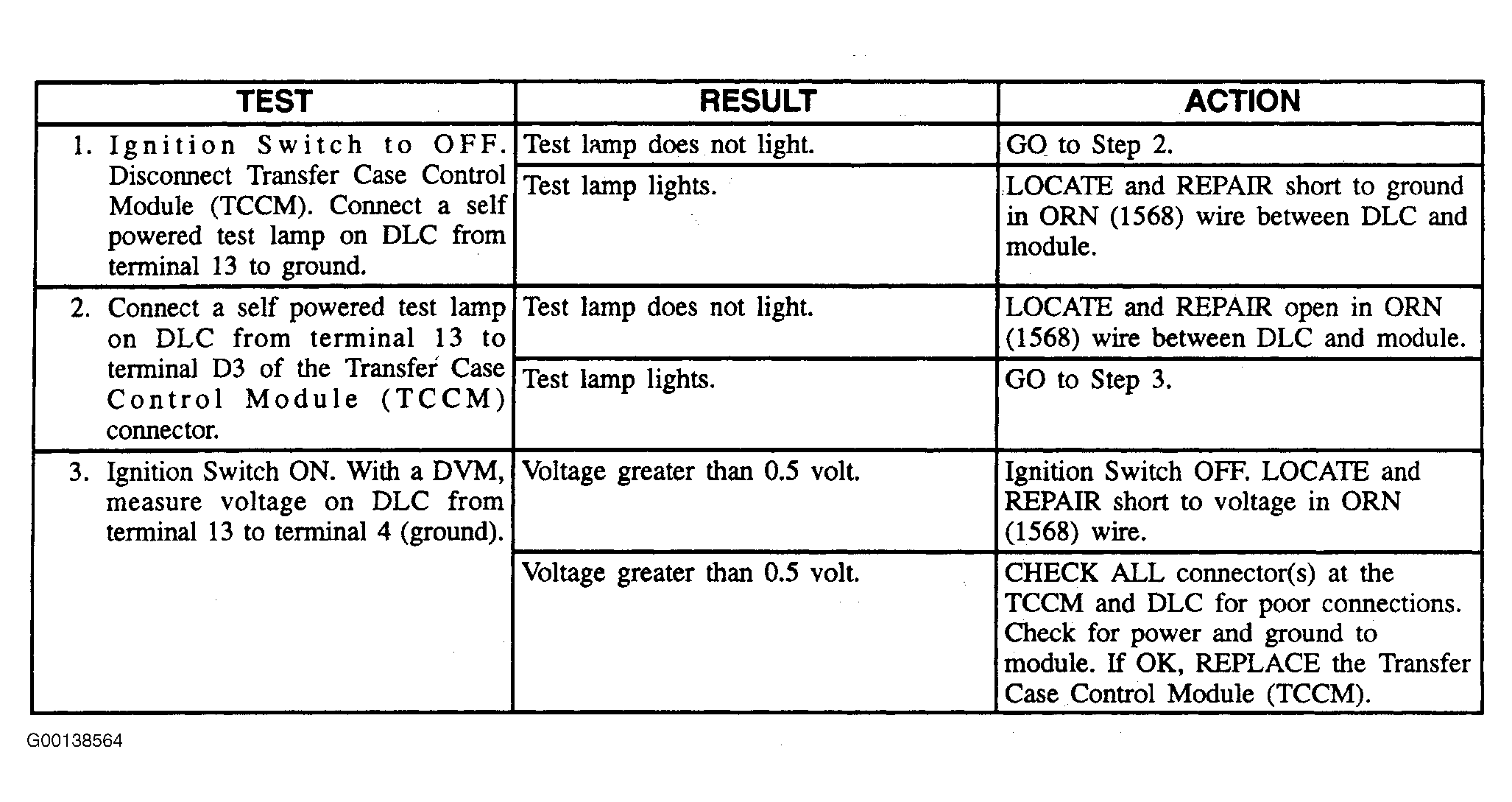

Fig 1: Transfer Case Control Module Data Line Diagnostic Flowchart

Courtesy of GENERAL MOTORS CORP.
