Component Locations
COMPONENT LOCATIONS
| Component | Location (Fig. No.) |
|---|---|

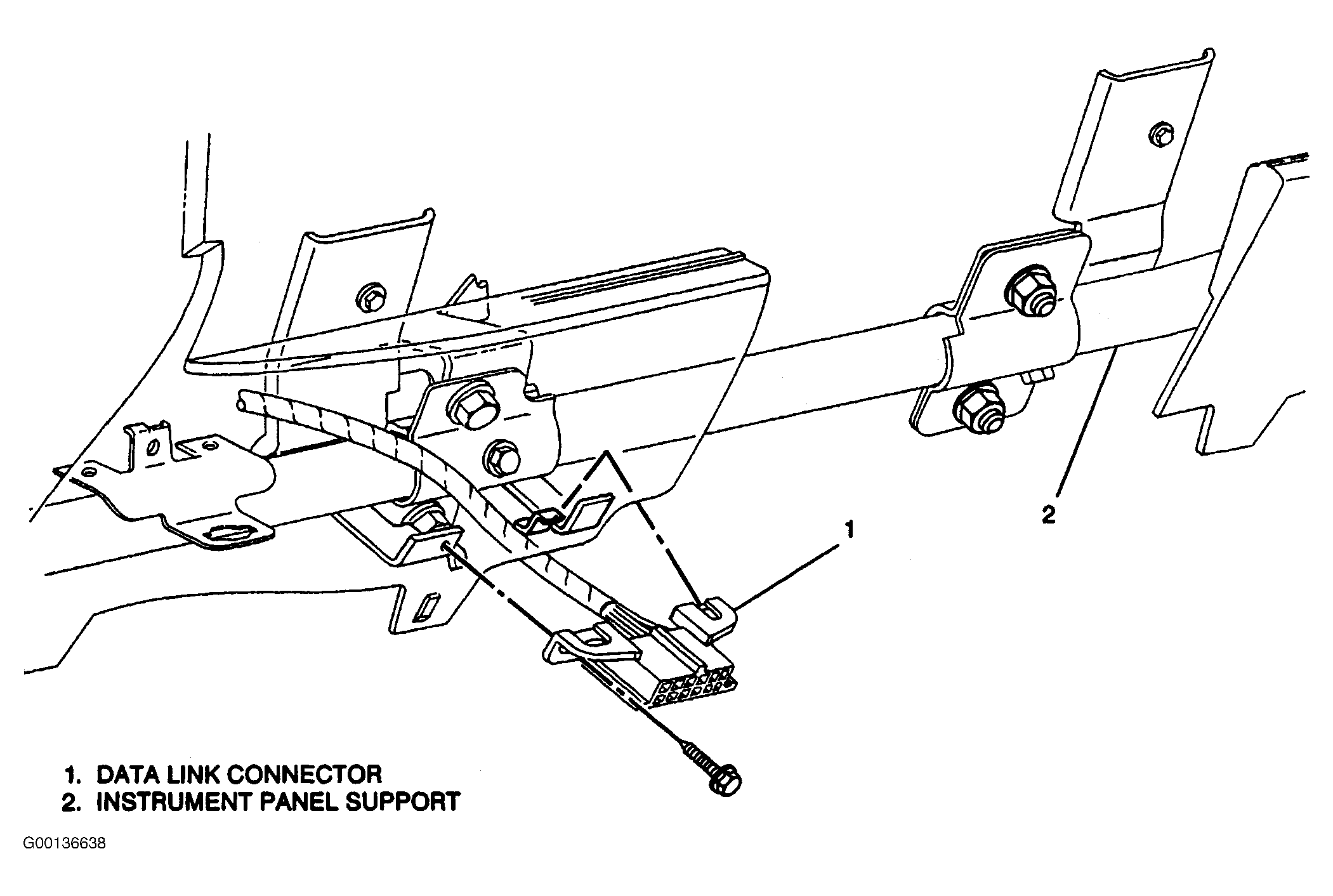

| Data Link Connector | Under Driver Side Of Instrument Panel (Fig 1 ) |

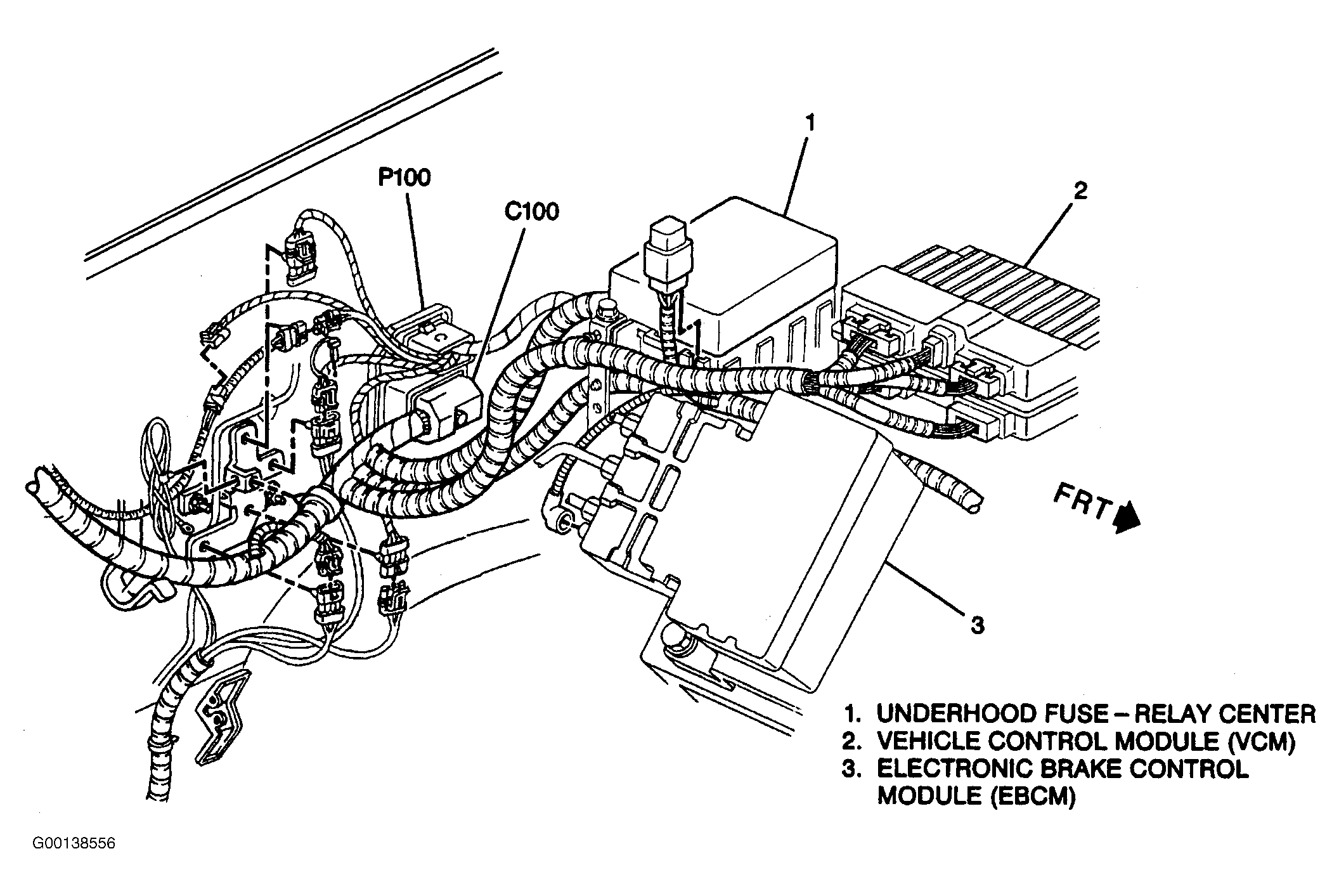

| Electric Brake Control Module | Driver Side Of Engine Compartment At Wheel House (Fig 2 ) |

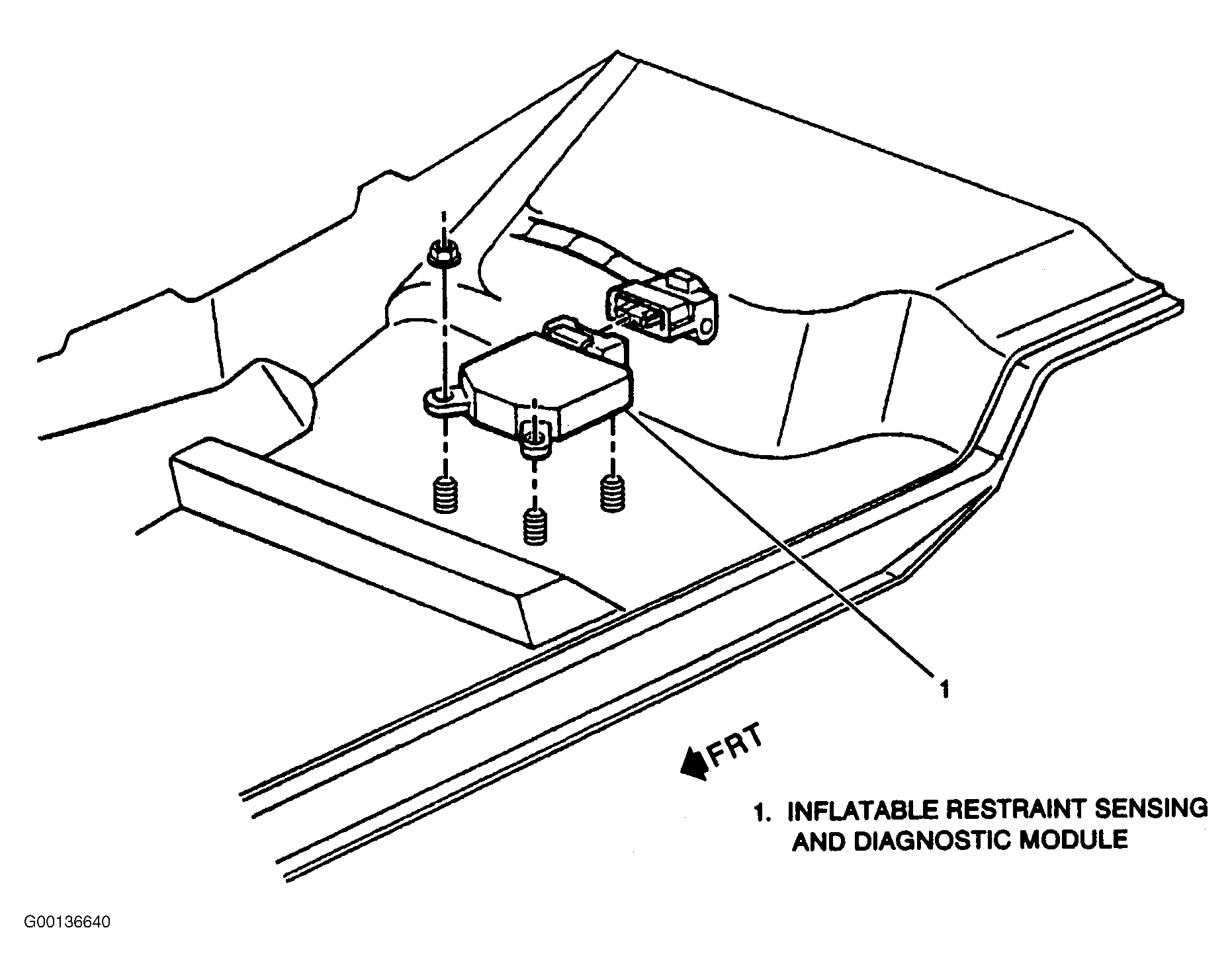

| Inflatable Restraint Sensing & Diagnostic Module | Under Driver Seat (Fig 3 ) |

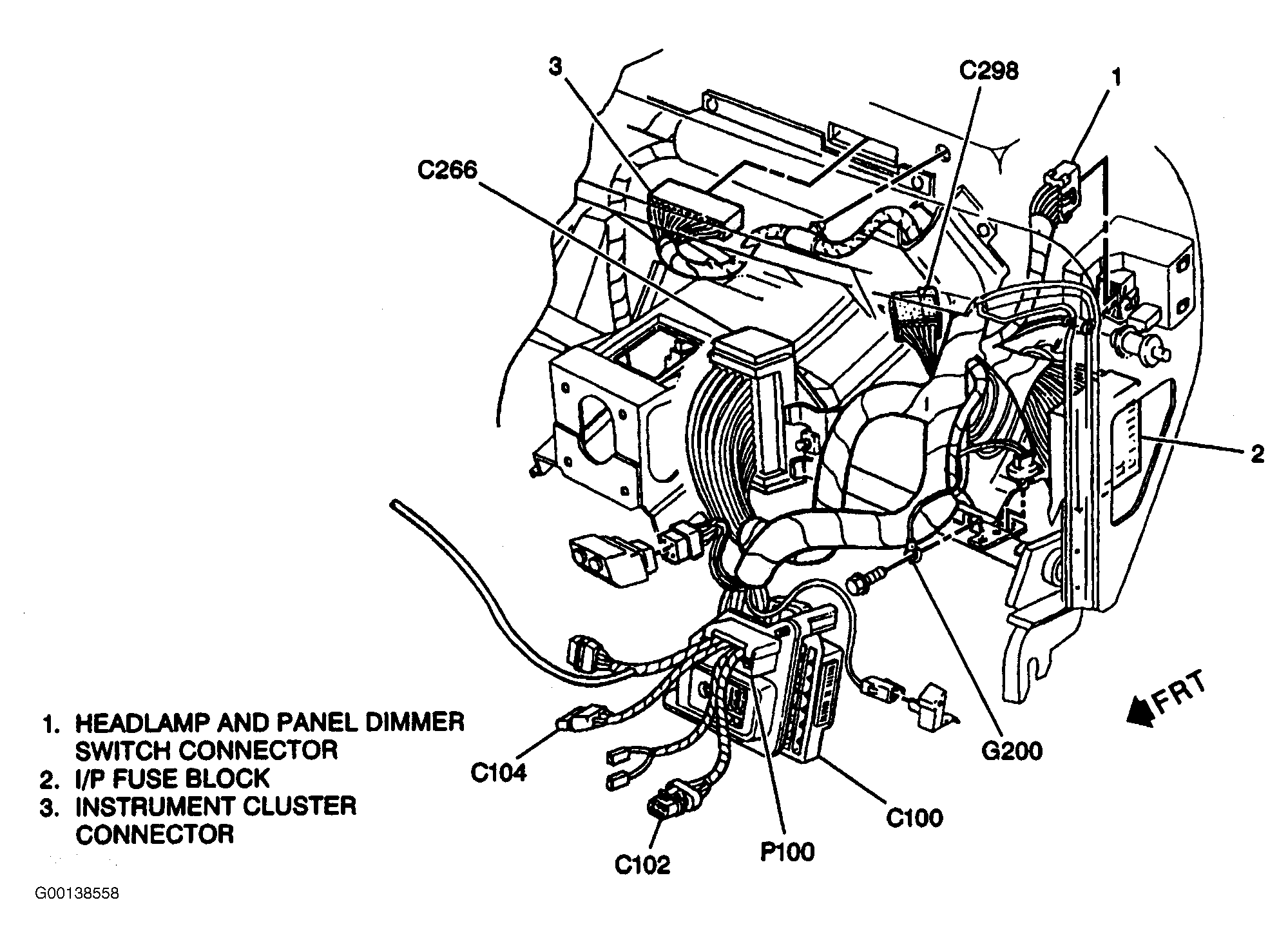

| Instrument Panel Fuse Block | Lower Driver Side Of Instrument Panel (Fig 4 ) |

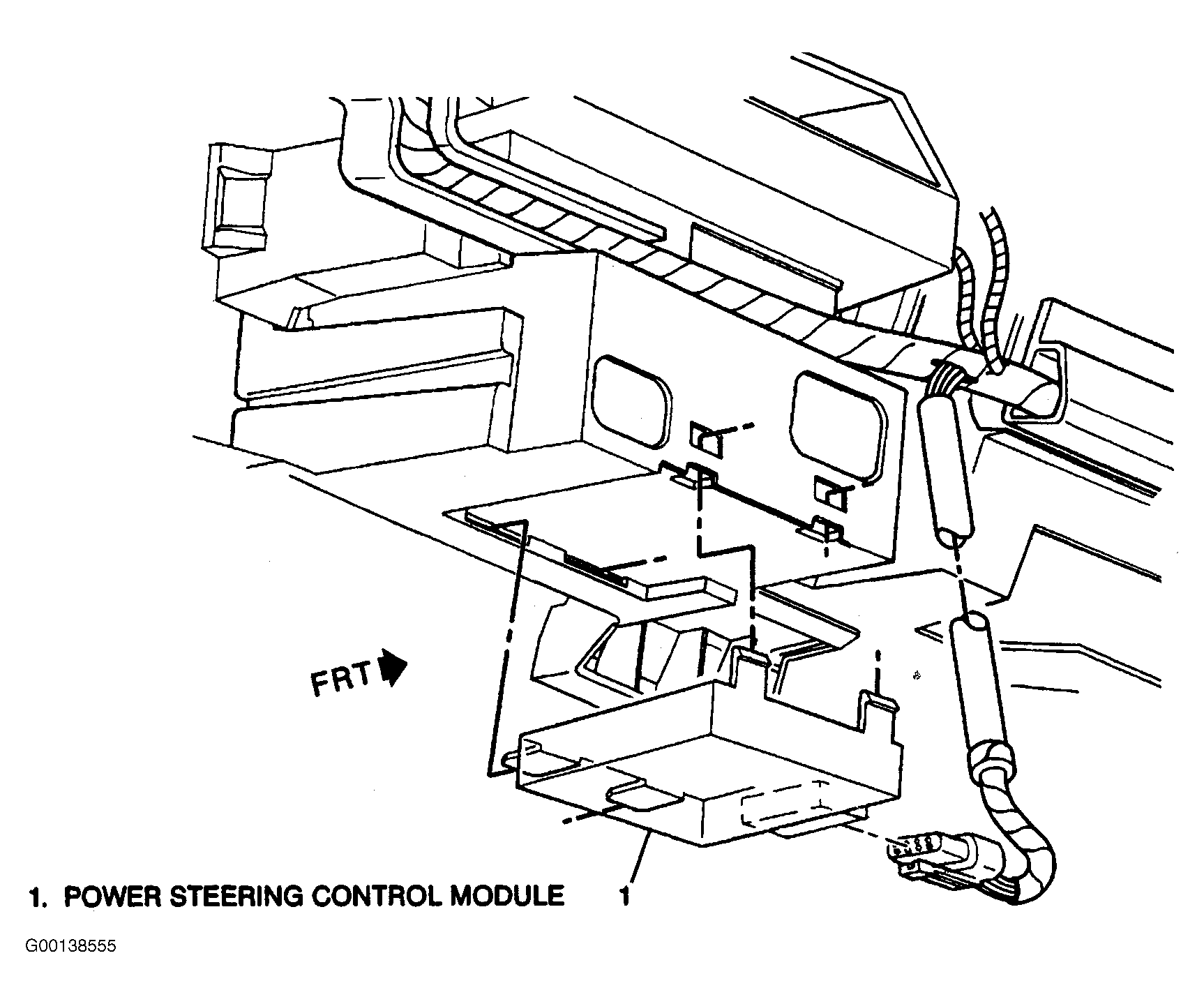

| Power Steering Module | Under Center Of Instrument Panel (Fig 5 ) |

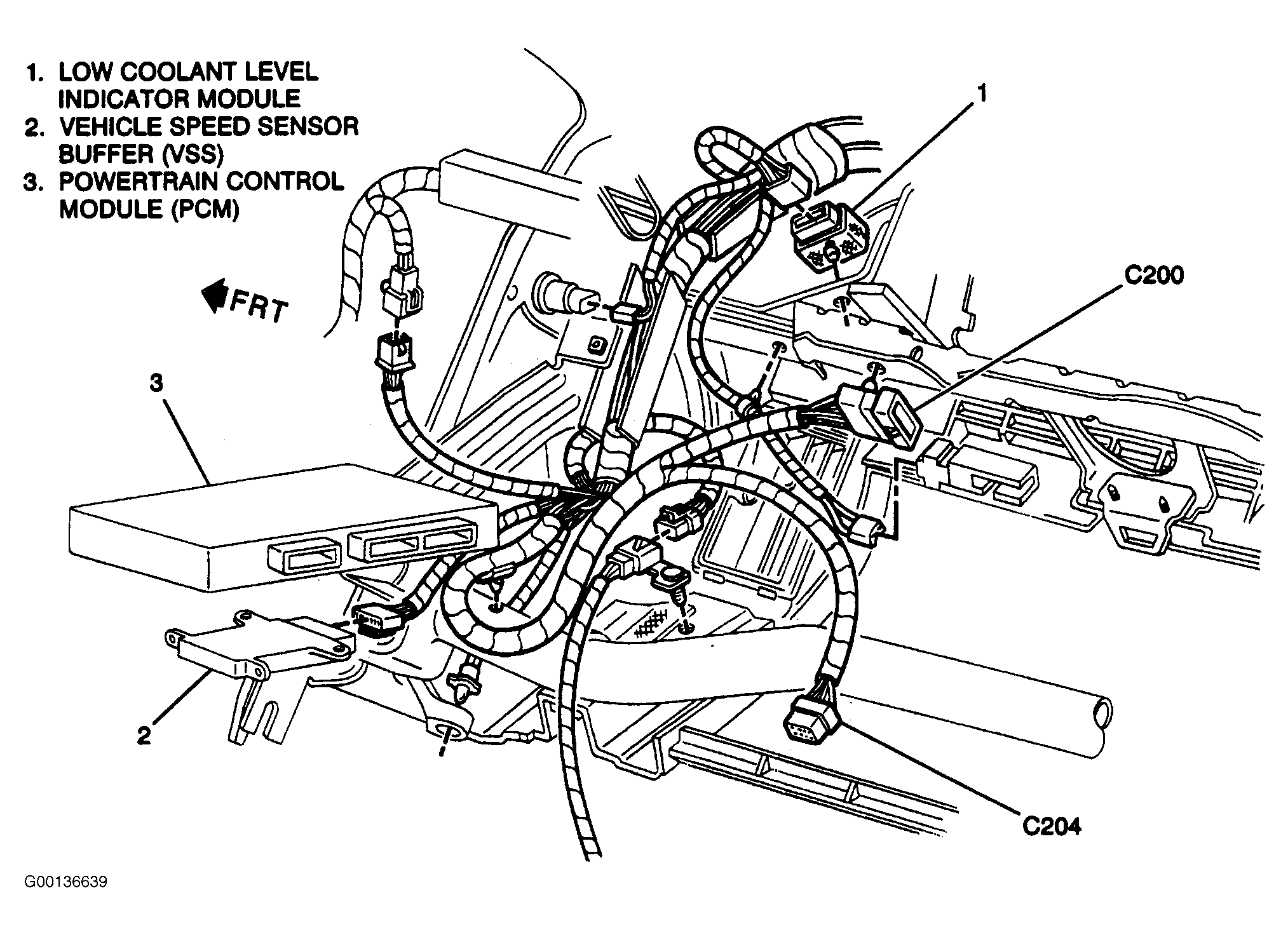

| Powertrain Control Module (6.5L Diesel) | (Fig 6 ) |
| Radio | Center Of Instrument Panel |

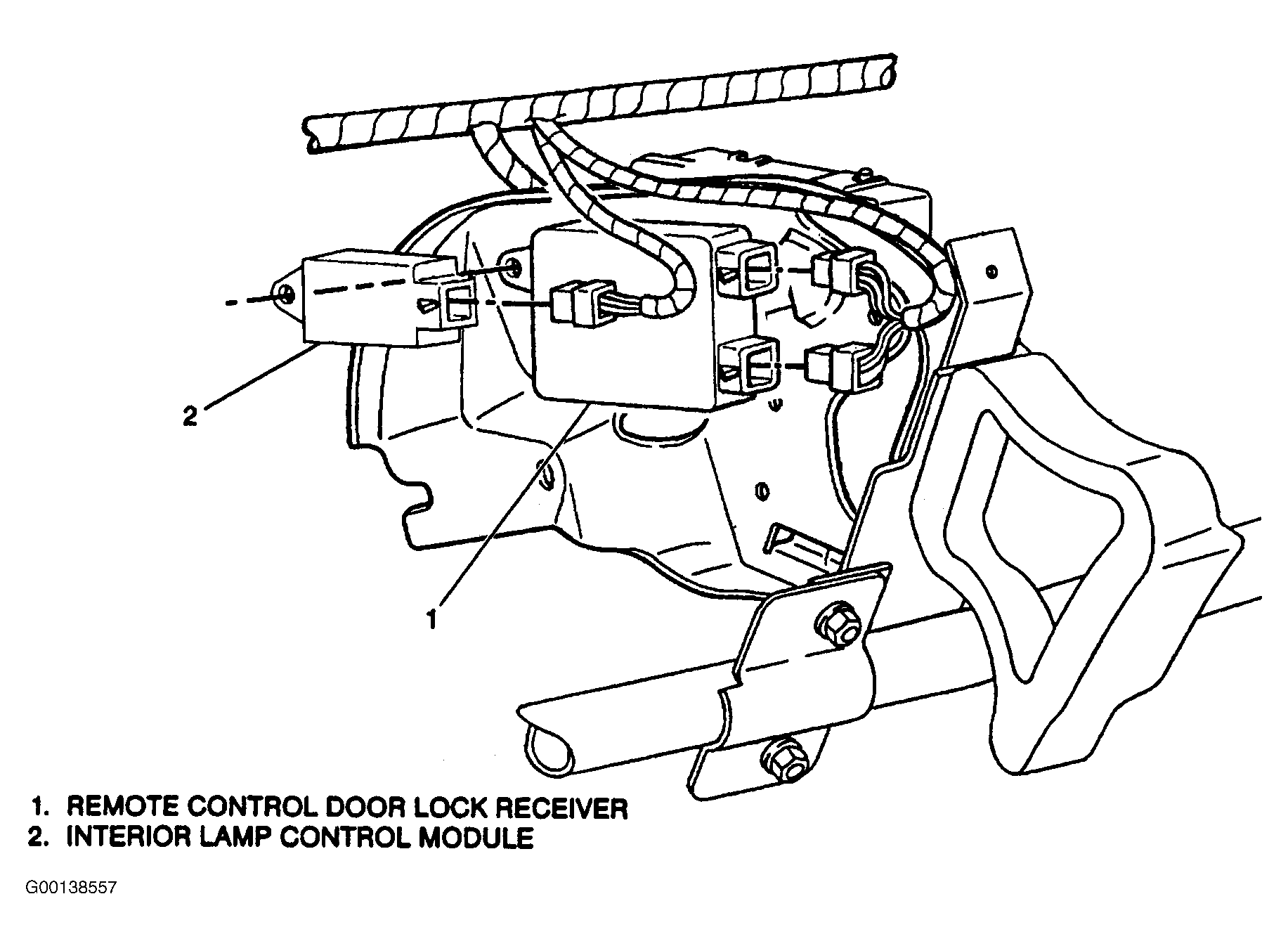

| Remote Control Door Lock Receiver | Behind Center Of Instrument Panel (Fig 7 ) |
| Transfer Case Control Module | On Steering Column Support Bracket |
| Vehicle Control Module | Driver Side Of Engine Compartment, Near ECBM (Fig 2 ) |
| C100 | Driver Rear Of Engine Compartment At Bulkhead (Fig 2 ) |
| C231 | Instrument Panel Harness To Inflatable Restraint Harness |
| C298 | Behind Driver Side Of Instrument Panel, Near Convenience Center (Fig 4 ) |

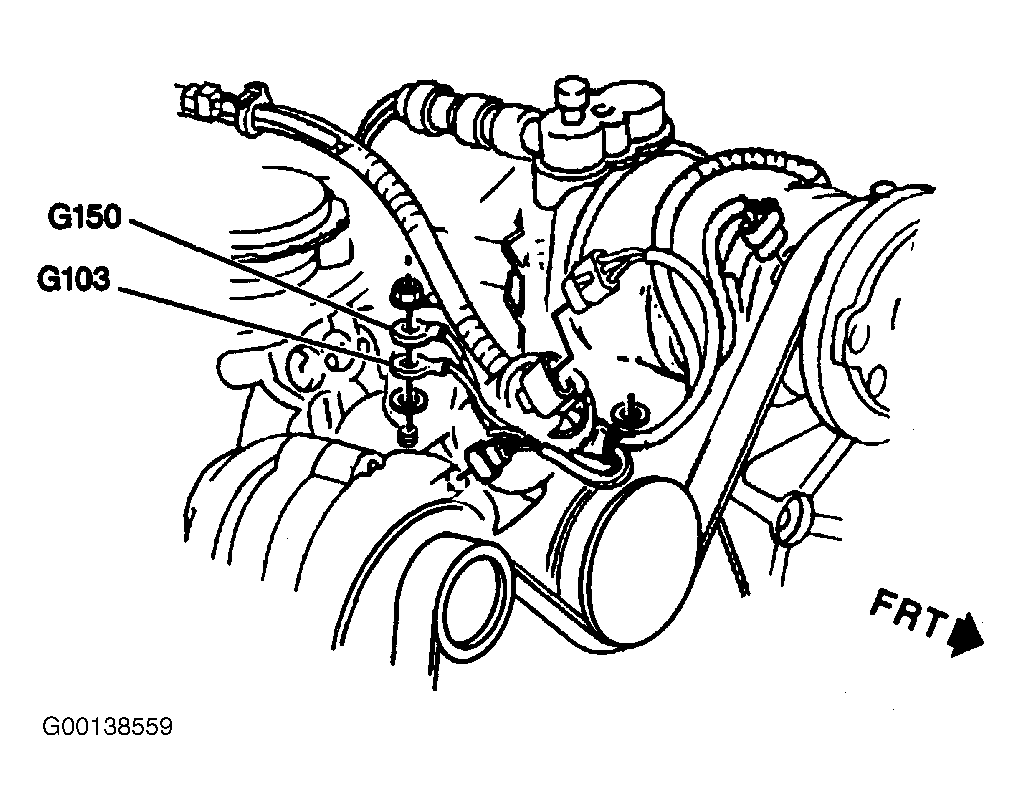

| G103 (Gasoline) | Passenger Front Of Engine, Near Thermostat Housing (Fig 8 ) |

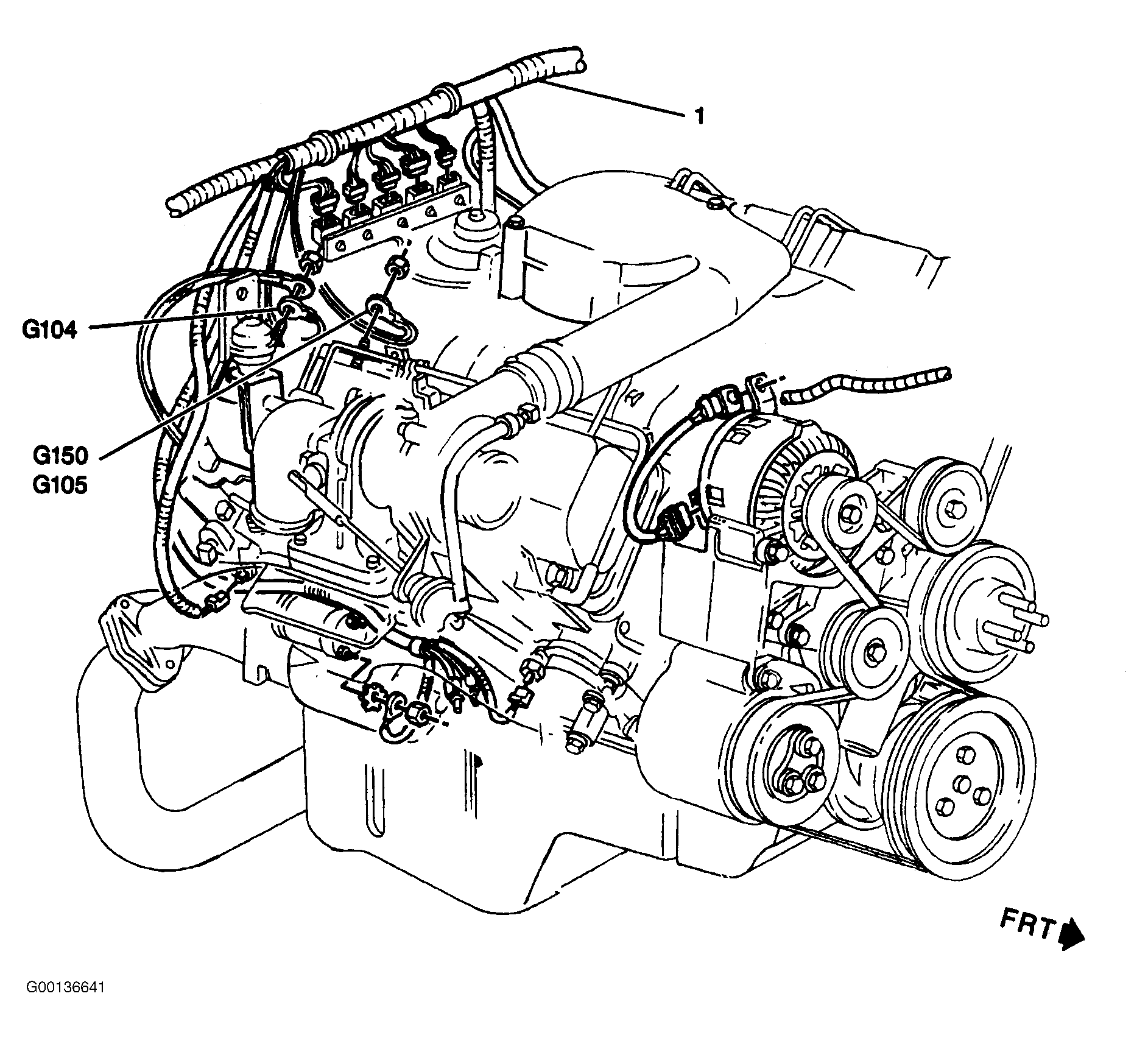

| G104 (Diesel) | Passenger Top Of Cylinder Head (Fig 9 ) |
| G200 | Behind Driver Side Of Instrument Panel, Below Fuse Block (Fig 4 ) |
| P101 | Passenger Rear Of Engine Compartment At Bulkhead |
| S103 (VIN W) | Engine Harness, Near EGR Valve Breakout Towards Fuel Injector Breakout |
| S103 (VIN M & R) | Engine Harness, Near EGR Valve Breakout Towards Tail Lamp Harness Breakout |
| S103 (VIN J) | Engine Harness, Near EGR Valve Breakout Towards Tail Lamp Harness Breakout |
| S103 (Diesel) | Engine Harness, Near Glow Plugs Breakout Towards P101 |
| S150 | Engine Harness, Near BPMV Breakout |
| S204 | Instrument Panel Harness, Near DLC Breakout Towards C100 |
| S215 | Instrument Panel Harness, Near Instrument Panel Cluster Breakout Towards Radio |
| S272 | Instrument Panel Harness, On Auxiliary Power Outlet Breakout |
| S280 | Instrument Panel Harness, On DLC Breakout |
