Home
>>
GMC
>>
1997
>>
C3500 HD 6.5 F, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification - C/K Series
>>
Heater Blower Switch C2
Heater Blower Switch C2

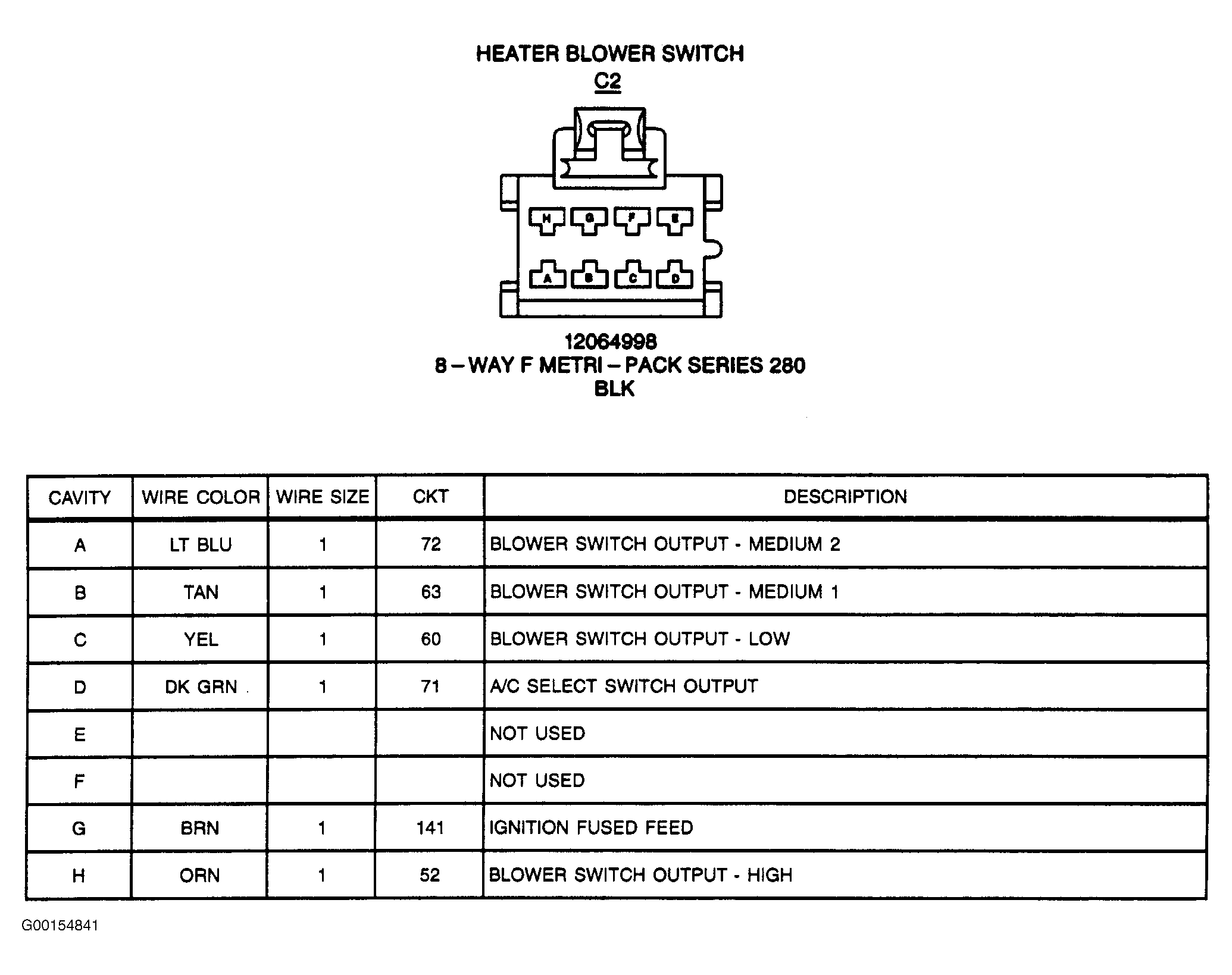

Fig 1: Heater Blower Switch C2 - 8-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
