Heater & A/C Control Switch C1

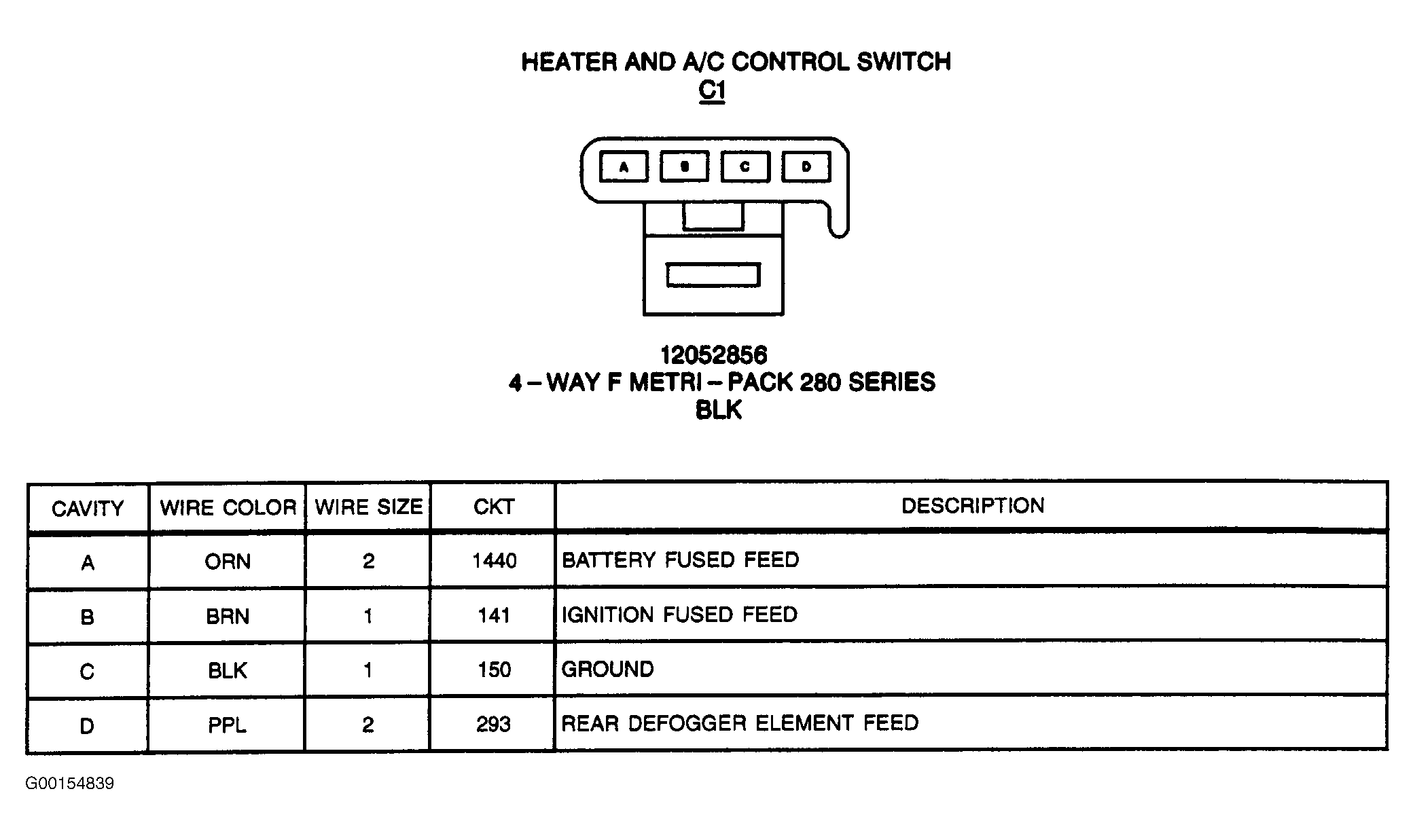

Fig 1: Heater & A/C Control Switch C1 - 4-Pin Connector, Black

G00154839

Courtesy of GENERAL MOTORS CORP.
