Connector Identification

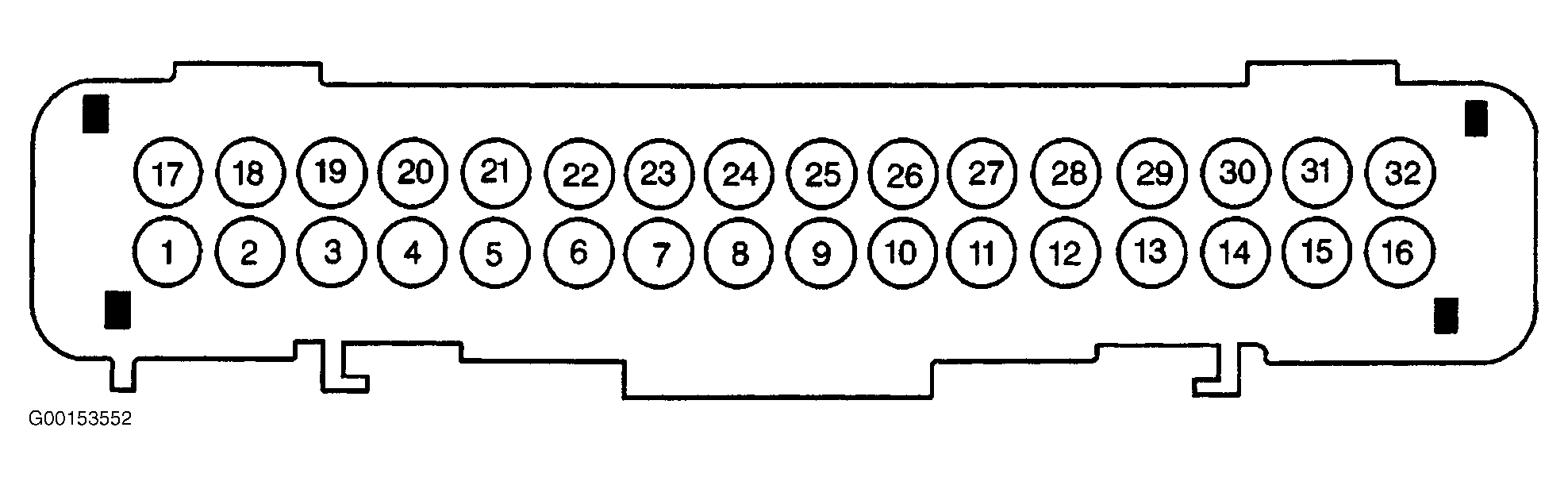

Fig 1: Identifying PCM 32-Pin Harness Connector
G00153552Courtesy of GENERAL MOTORS CORP.

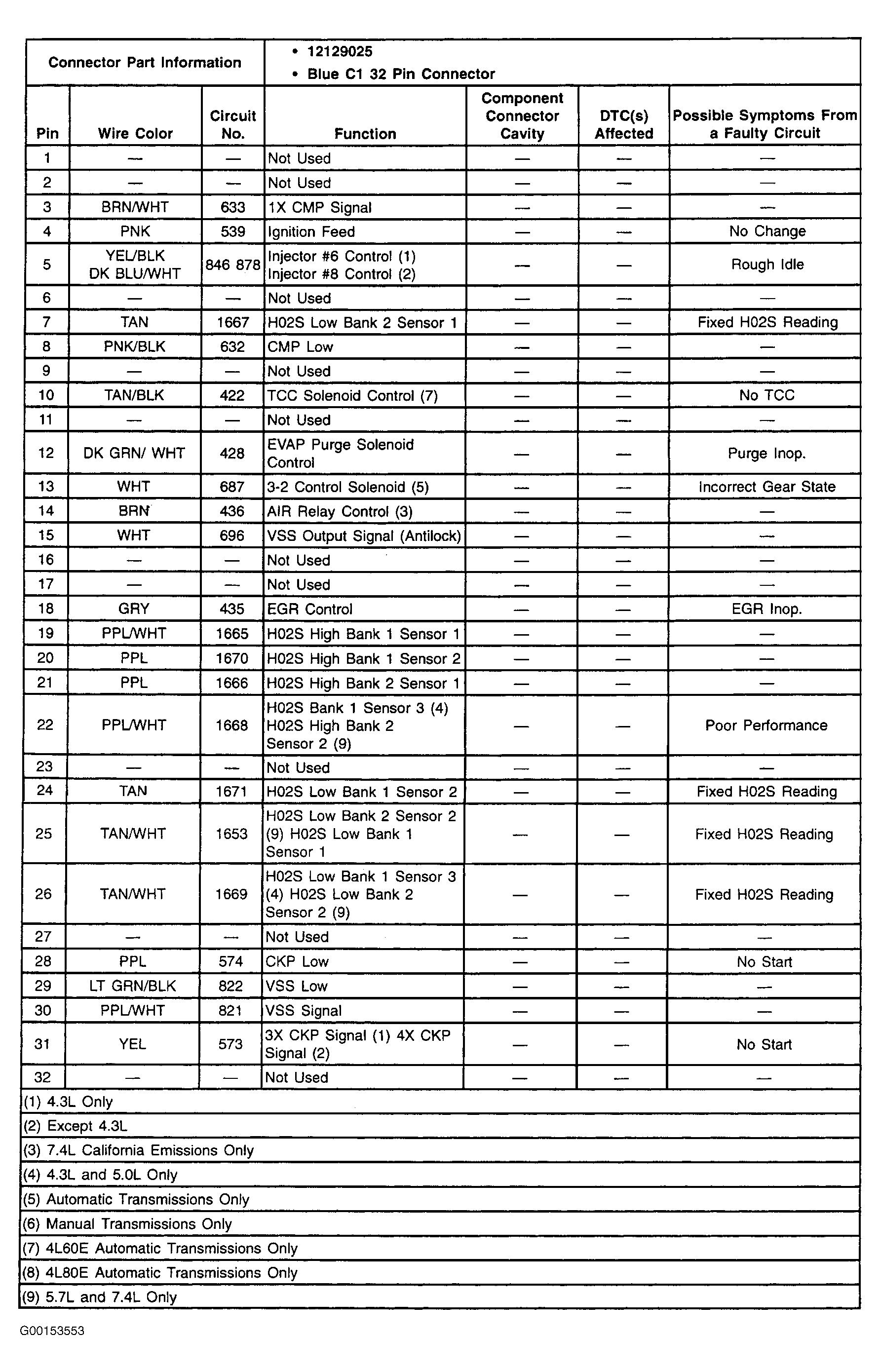

Fig 2: Identifying PCM 32-Pin Blue C1 Connector Terminals
G00153553Courtesy of GENERAL MOTORS CORP.

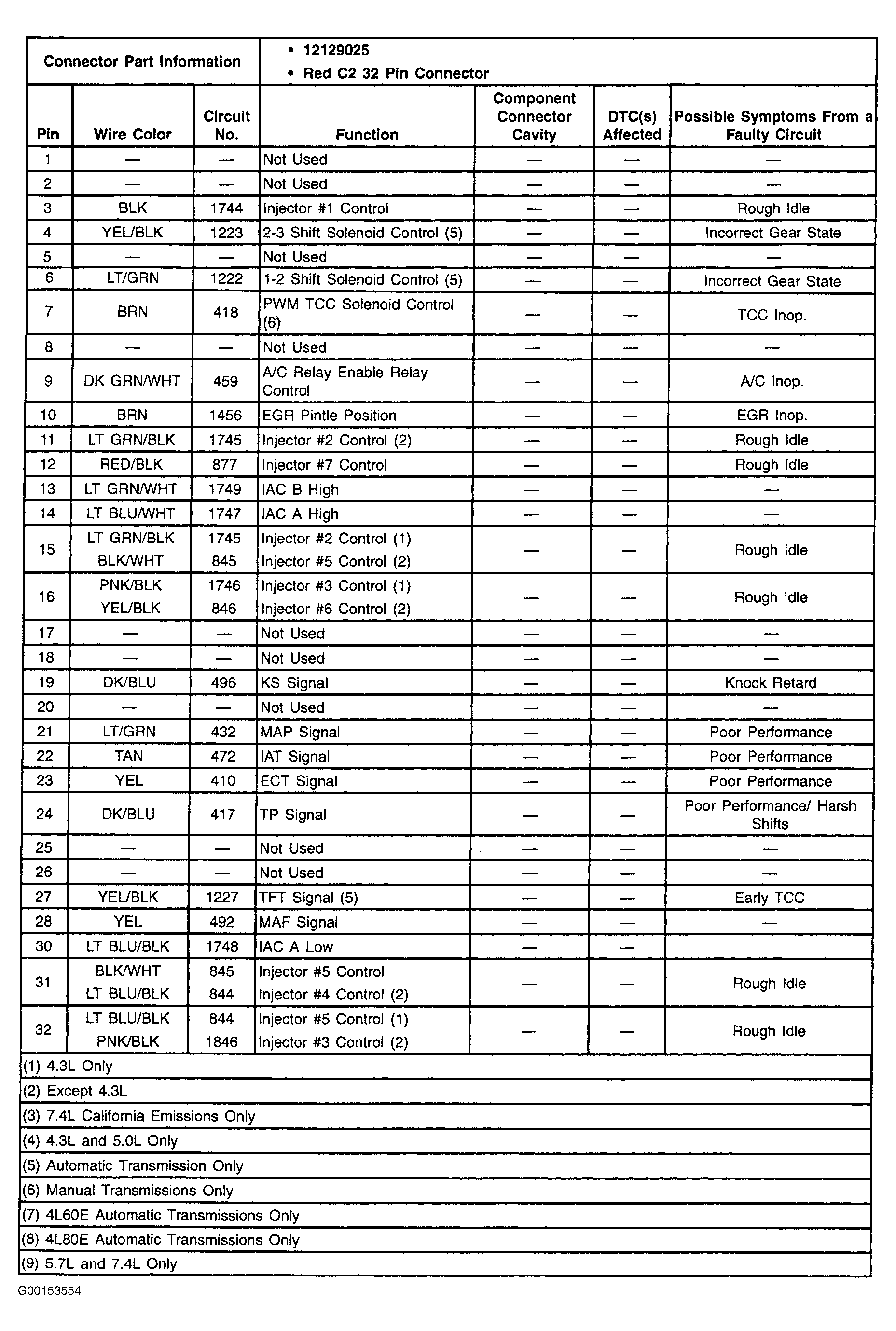

Fig 3: Identifying PCM 32-Pin Red C2 Connector Terminals
G00153554Courtesy of GENERAL MOTORS CORP.

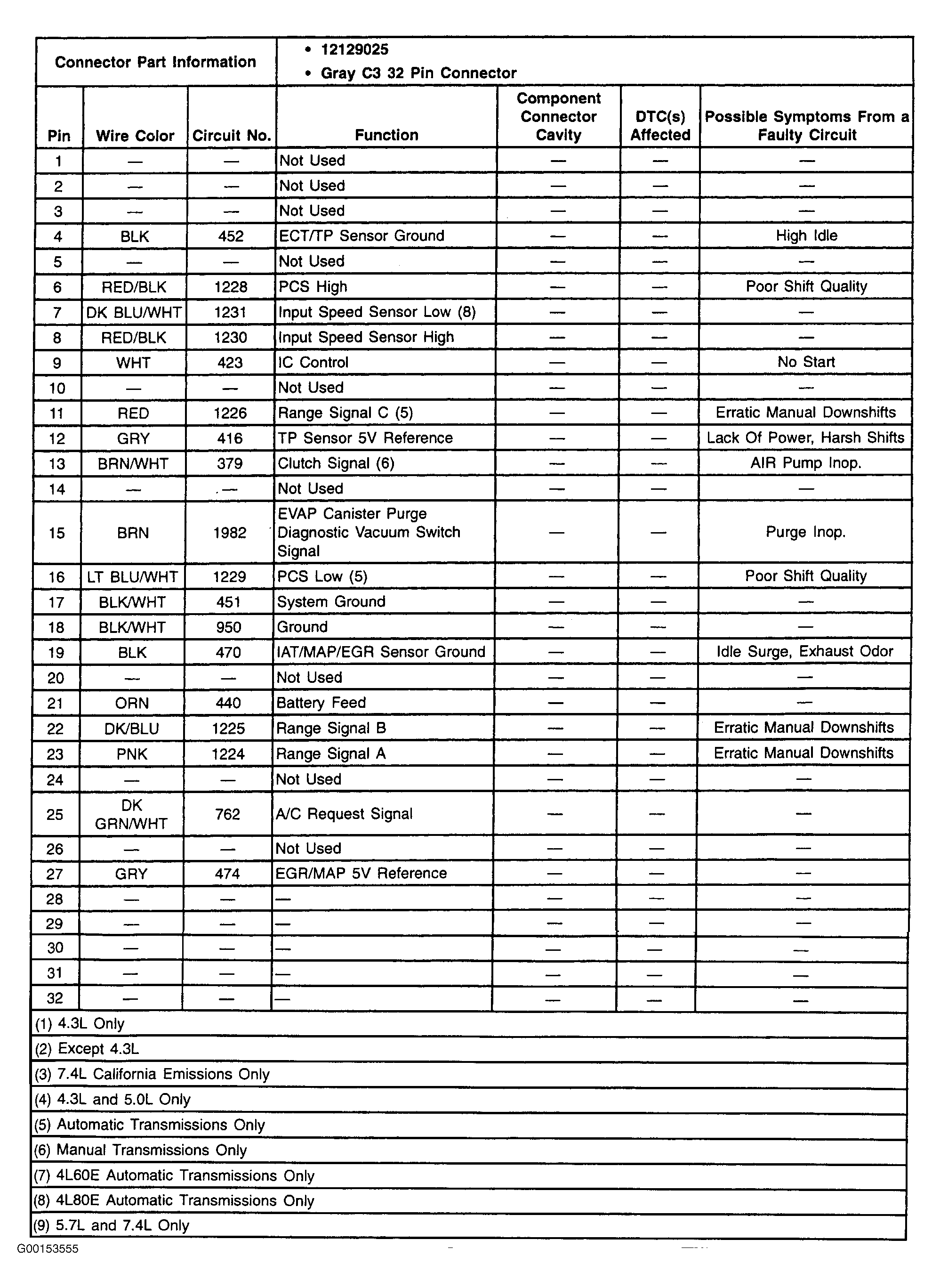

Fig 4: Identifying PCM 32-Pin Gray C3 Connector Terminals
G00153555Courtesy of GENERAL MOTORS CORP.

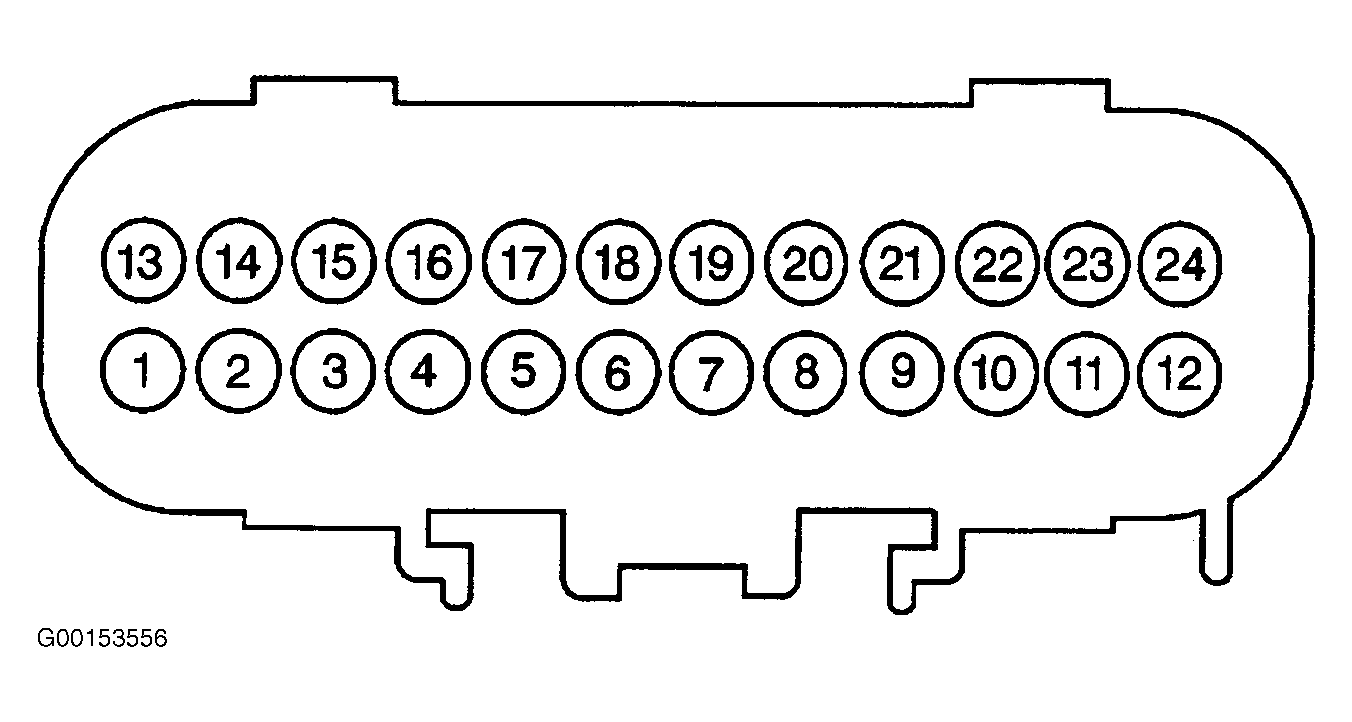

Fig 5: Identifying PCM 24-Pin Harness Connector
G00153556Courtesy of GENERAL MOTORS CORP.

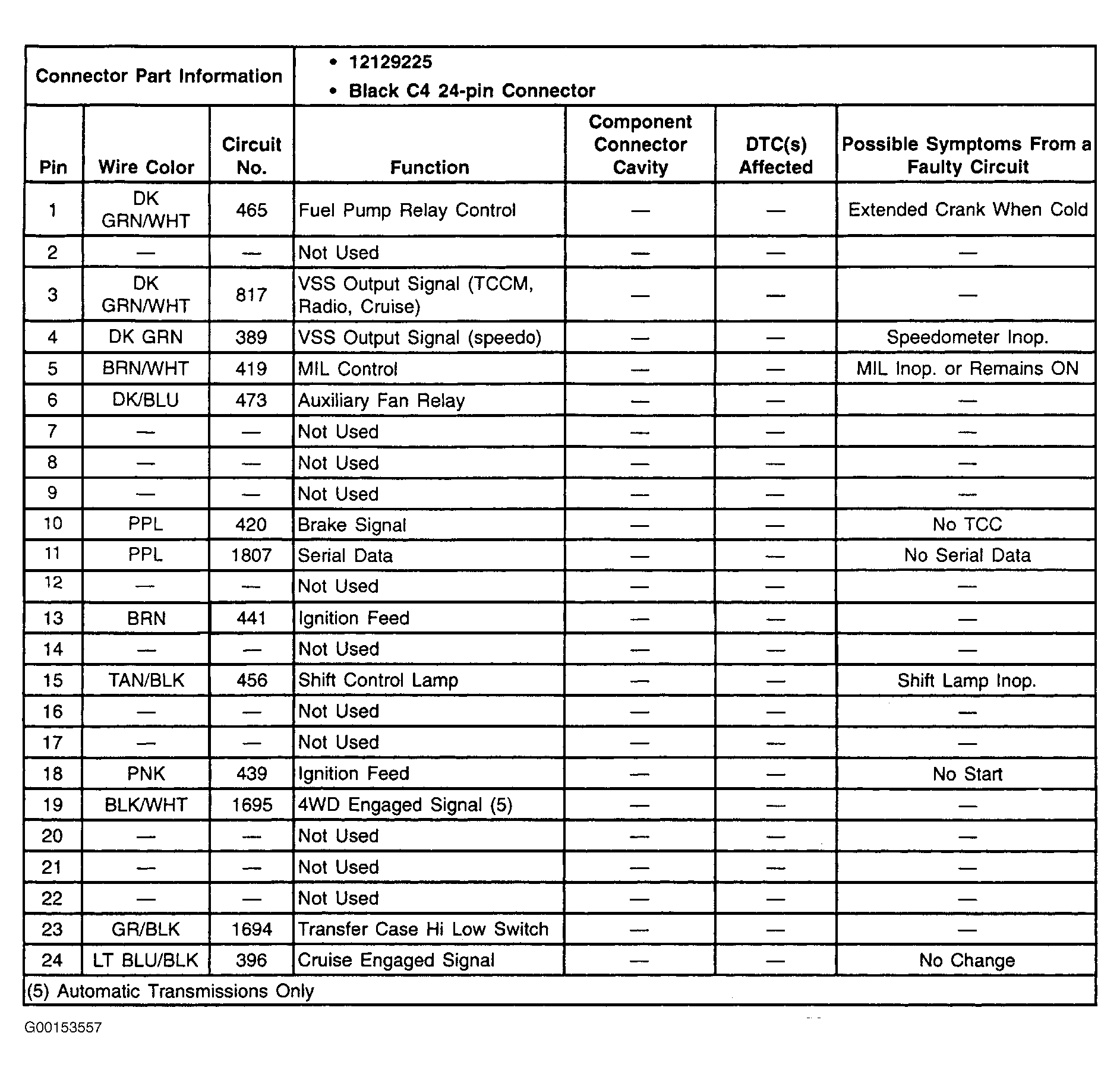

Fig 6: Identifying PCM 24-Pin Black C4 Connector Terminals
G00153557Courtesy of GENERAL MOTORS CORP.
