UART Data Line Diagnosis

For UART data line diagnosis, refer to flowchart. See Fig 1 .

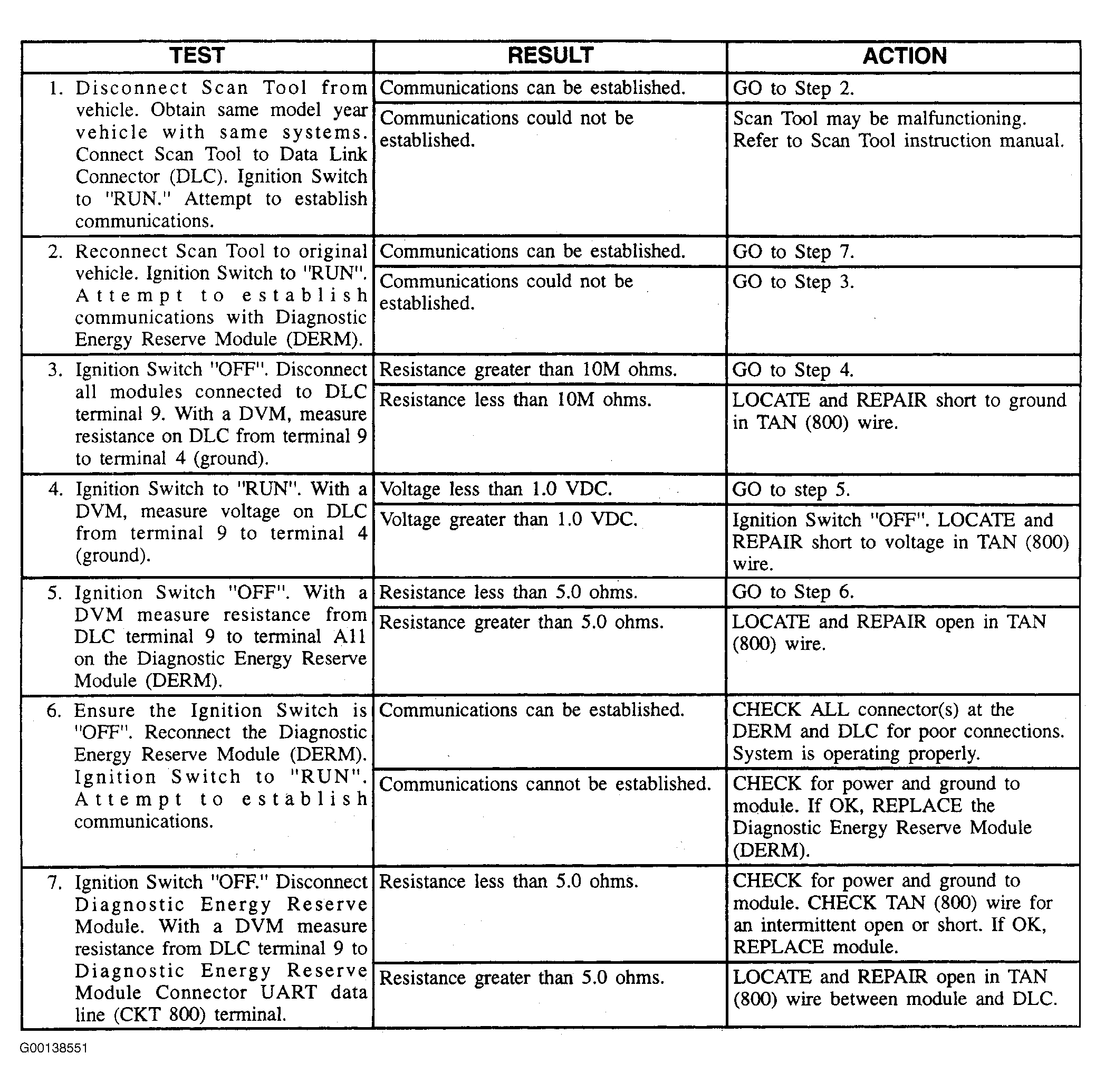

Fig 1: Universal Asynchronous Receiver Transmitter Data Line Diagnostic Flowchart

G00138551

Courtesy of GENERAL MOTORS CORP.
