Component Locations
COMPONENT LOCATIONS
| Component | Location (Fig. No.) |
|---|---|

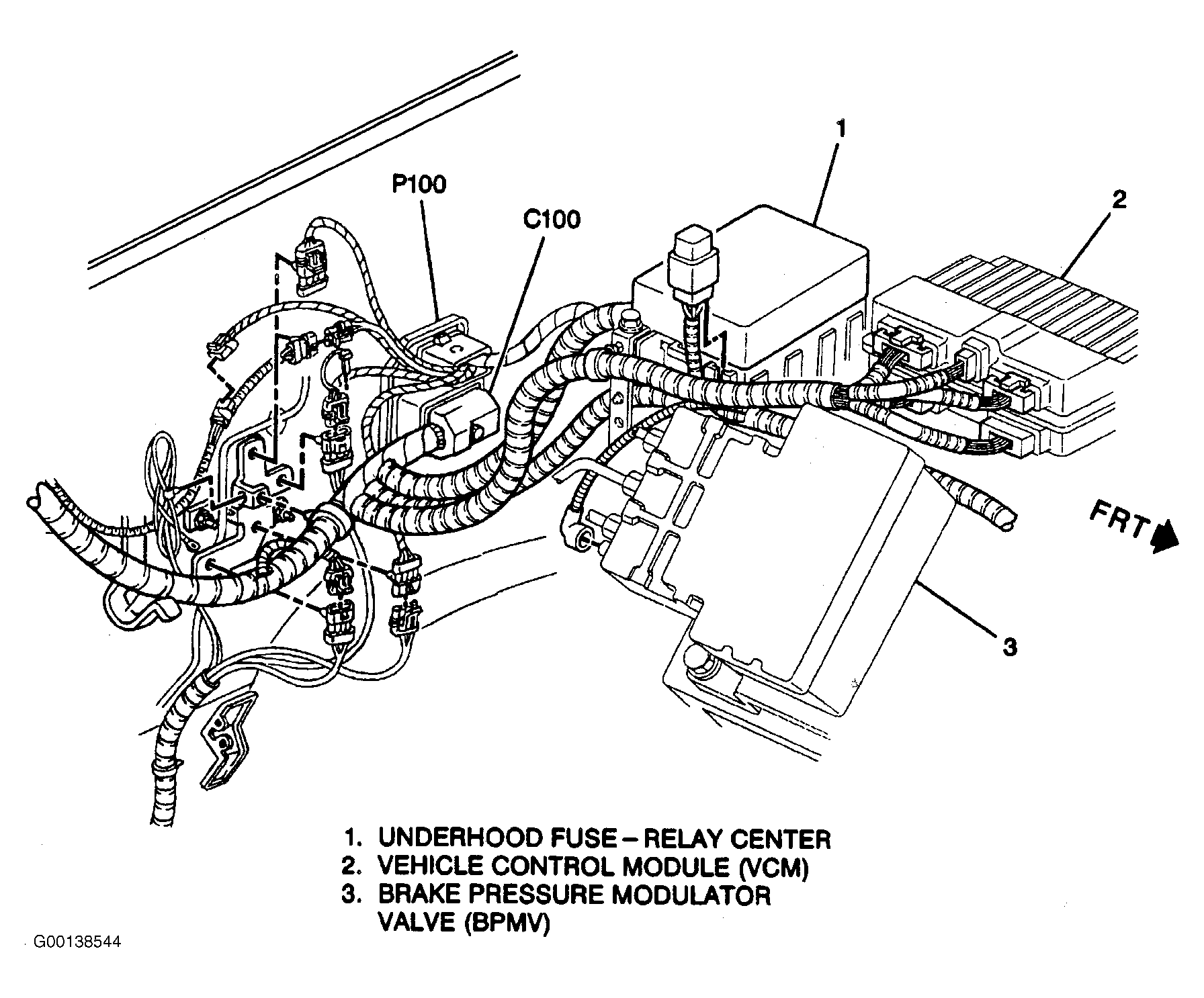

| Brake Pressure Modulator Valve (BPMV) | Driver Side Of Engine Compartment At Wheel House (Fig 1 ) |

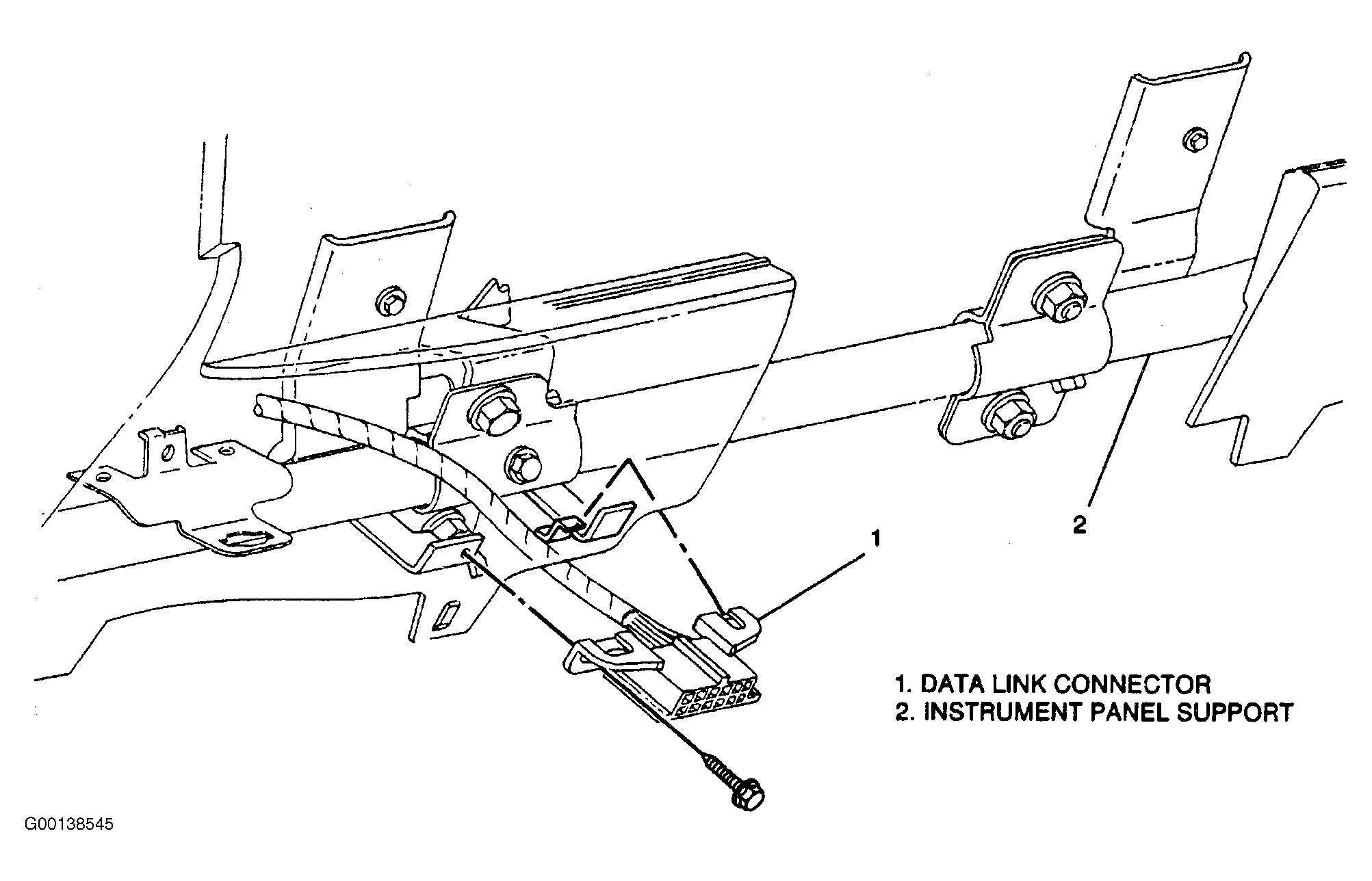

| Data Link Connector (DLC) | Under Driver Side Of Instrument Panel (Fig 2 ) |

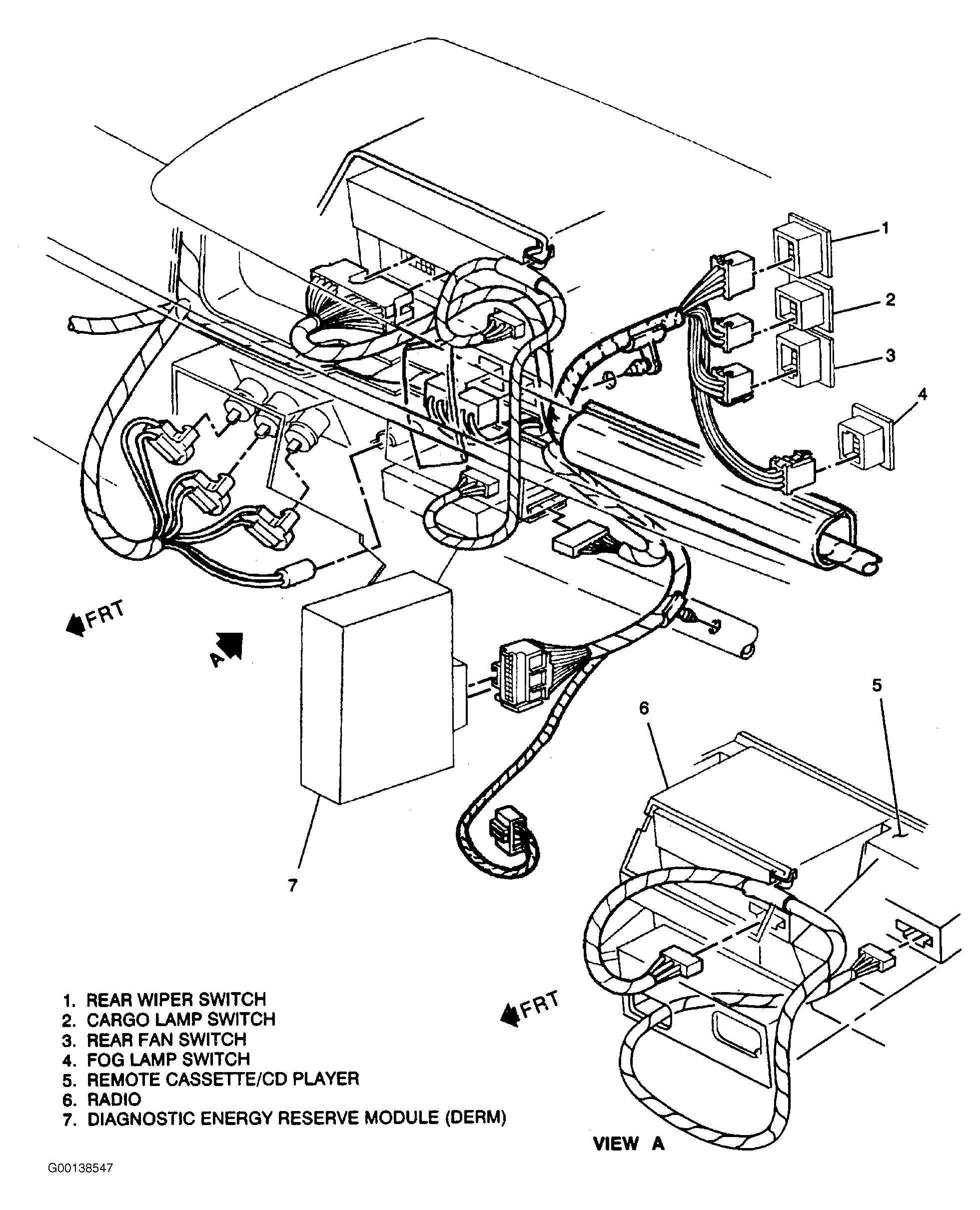

| Inflatable Restraint Diagnostic Energy Reserve Module (DERM) | Behind Center Of Instrument Panel (Fig 3 ) |

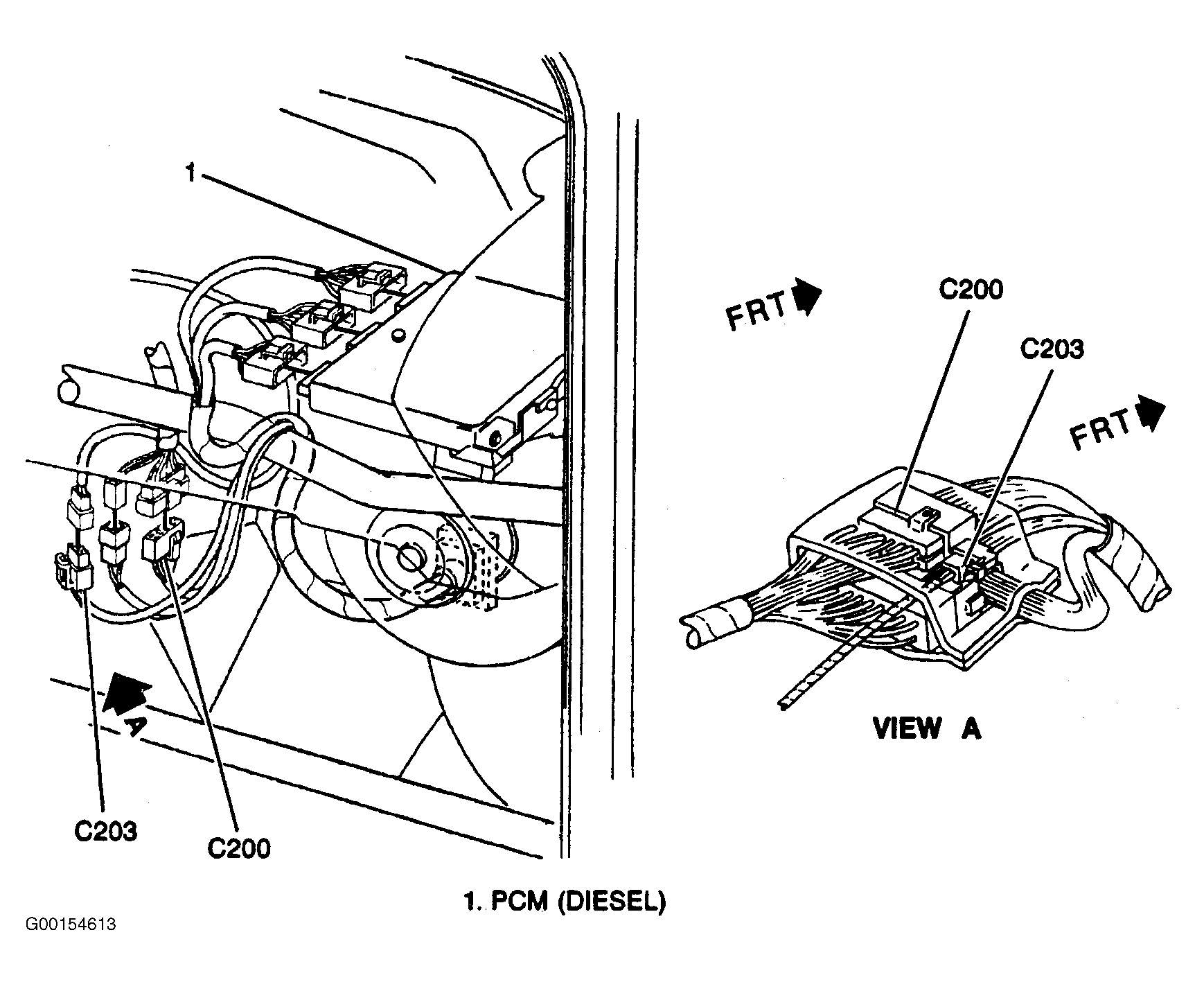

| Powertrain Control Module (PCM) | Under Passenger Side Of Instrument Panel (Fig 4 ) |
| Radio | Center Of Instrument Panel (Fig 3 ) |

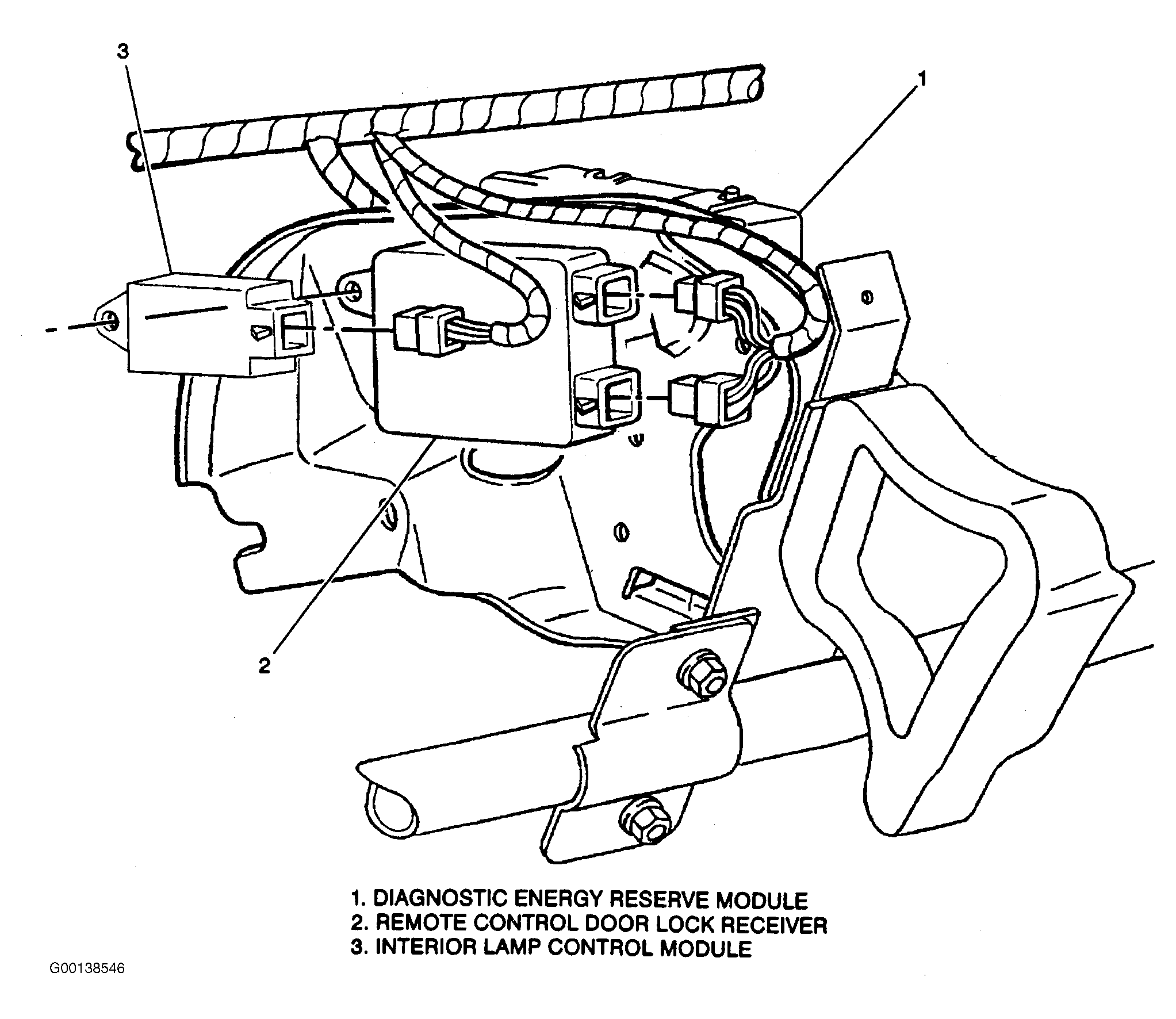

| Remote Control Door Lock Receiver (RCDLR) | Behind Center Of Instrument Panel (Fig 5 ) |
| Transfer Case Control Module (TCCM) | On Steering Column Support Bracket |
| Vehicle Control Module (VCM) | Driver Side Of Engine Compartment, Near BPMV (Fig 1 ) |
| C100 | Driver Rear Of Engine Compartment At Bulkhead (Fig 1 ) |
| C200 | Behind Passenger Side Of Instrument Panel, In Foam Wrap (Fig 4 ) |

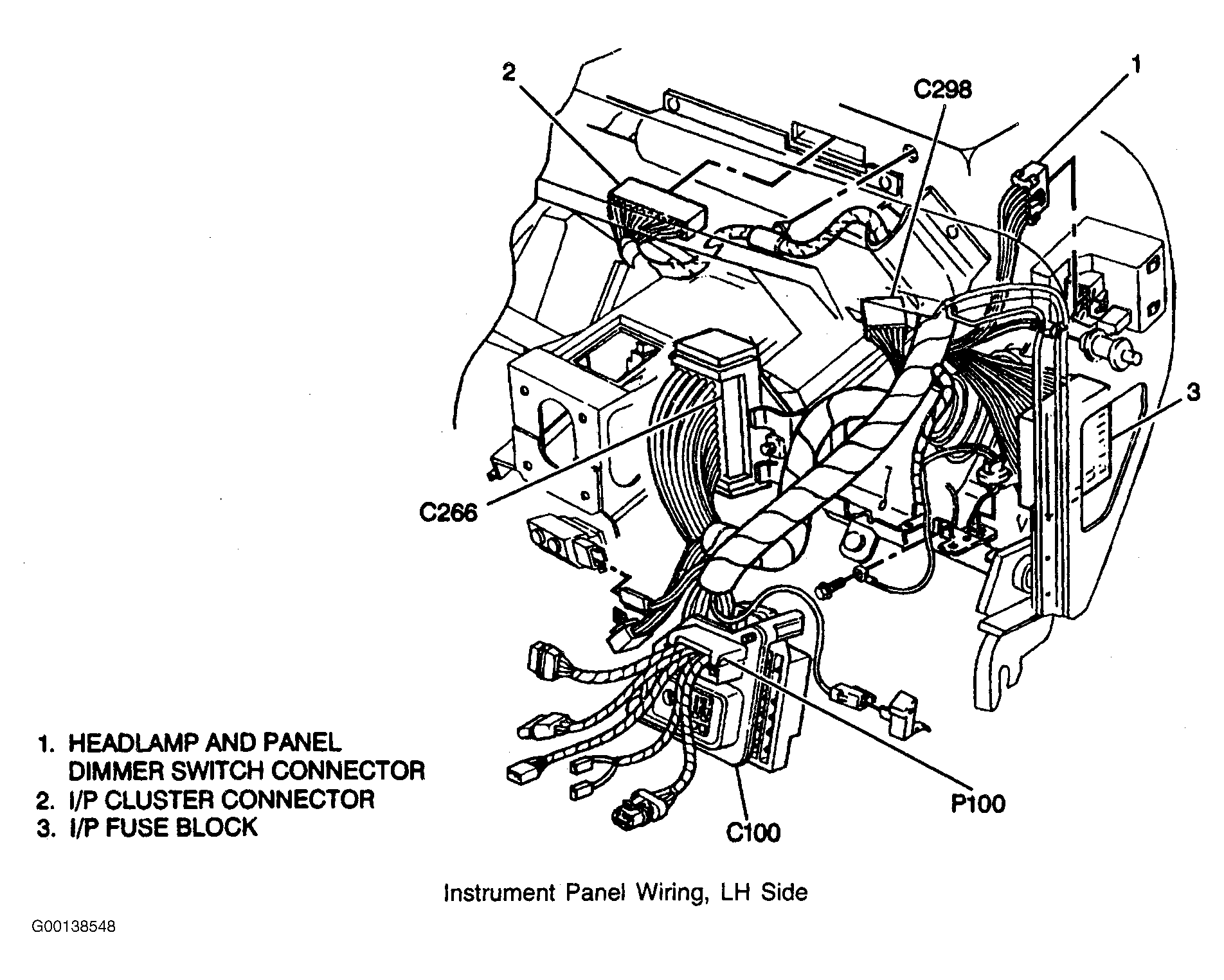

| C298 | Behind Driver Side Of Instrument Panel, Near Convenience Center (Fig 6 ) |

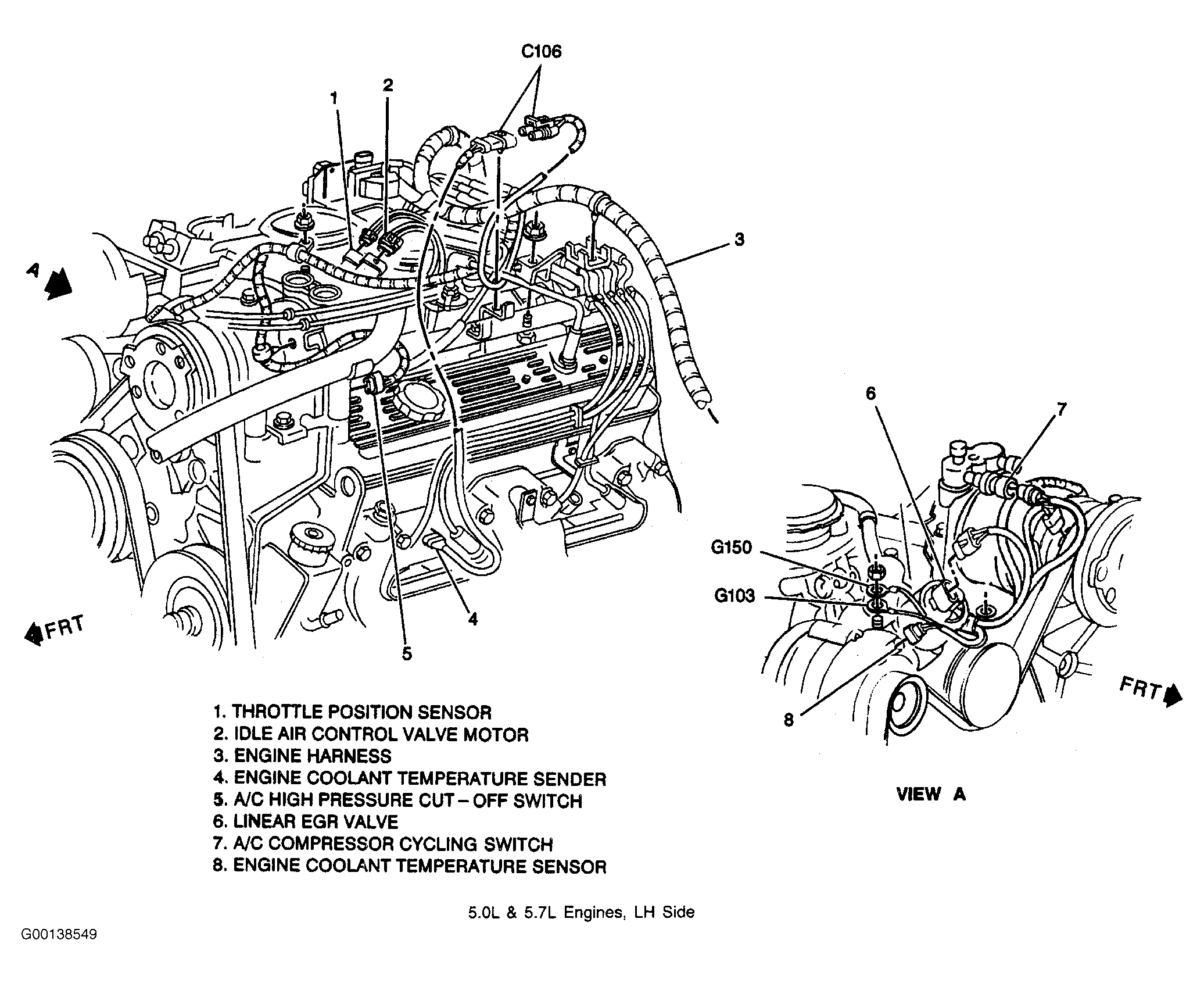

| G103 (Gasoline) | Passenger Front Of Engine, Near Thermostat Housing (Fig 7 ) |

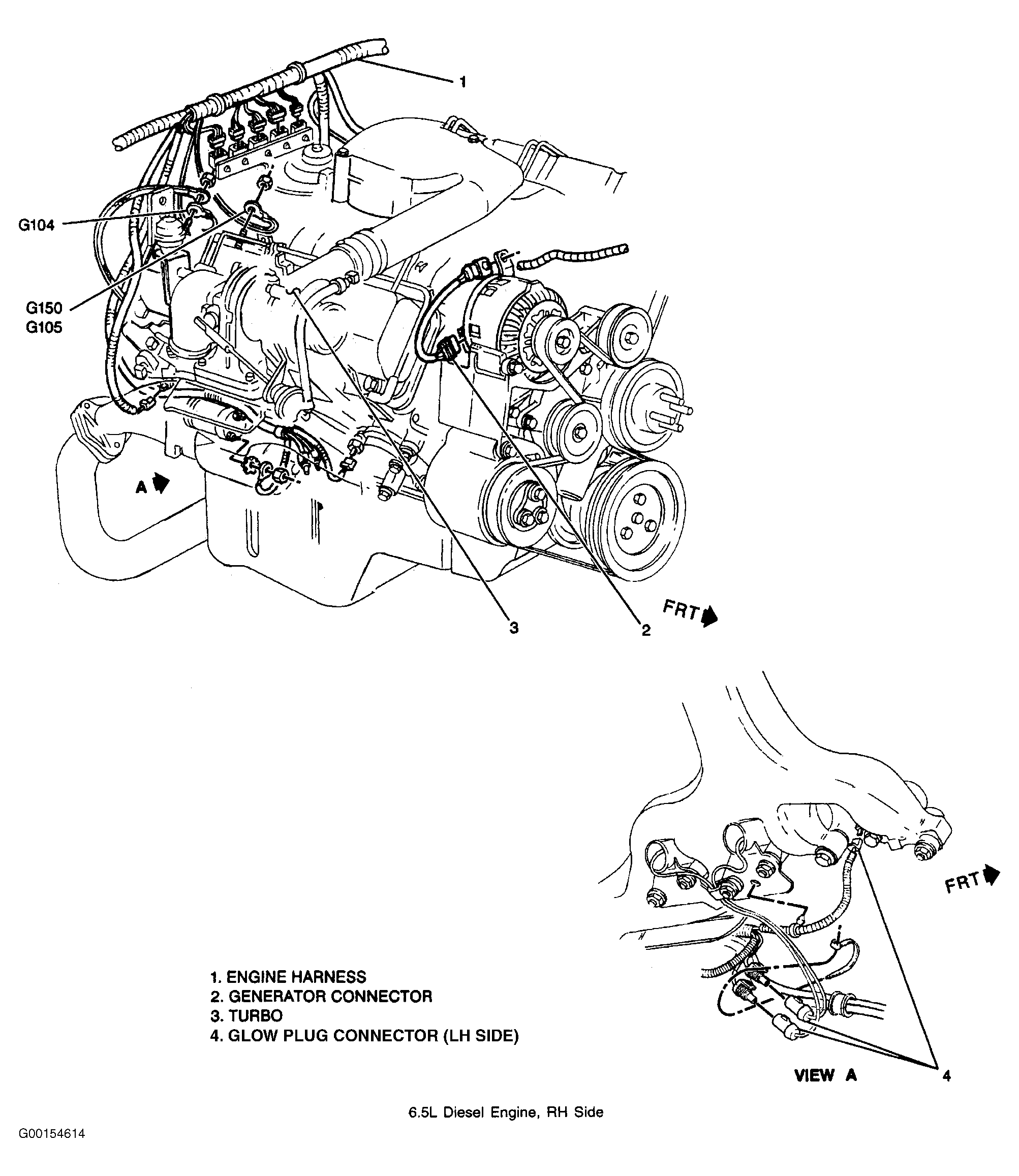

| G104 (Diesel) | Passenger Top Of Cylinder Head (Fig 8 ) |
| G200 | Behind Passenger Side Of Instrument Panel |
| P101 | Passenger Rear Of Engine Compartment At Bulkhead |
| S103 (VIN W, M & R) | Engine Harness, Near EGR Valve Breakout Towards Tail Lamp Extension Harness Breakout |
| S103 (VIN J) | Engine Harness, Near EGR Valve Breakout Towards Fuel Injector Breakout |
| S103 (Diesel) | Engine Harness, Near Glow Plugs Breakout Towards P101 |
| S150 | Engine Harness, Near BPMV Breakout |
| S204 | Instrument Panel Harness, Near Steering Column Breakout |
| S215 | Instrument Panel Harness, Near Instrument Panel Cluster Breakout Towards Radio |
| S272 | Instrument Panel Harness, On Auxiliary Power Outlet Breakout |
