Fuse Panel Identification (1994-95): Notes

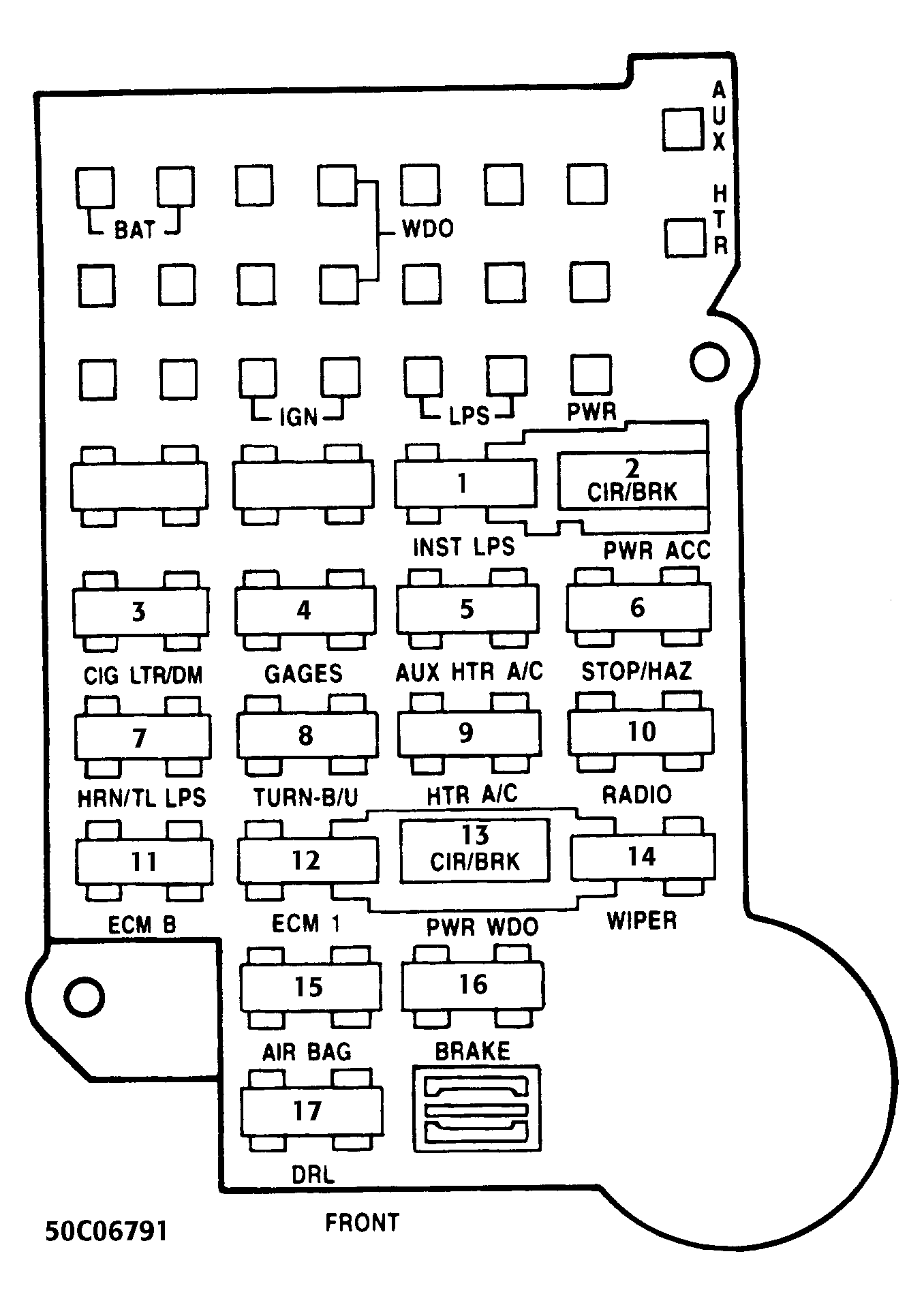

Fig 1: Fuse Panel Identification (1994-95)

G50C06791

Courtesy of GENERAL MOTORS CORP.
