Operating Modes: Notes

WARNING: This page is about a different car, the 1996 GMC Sonoma and 1996 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

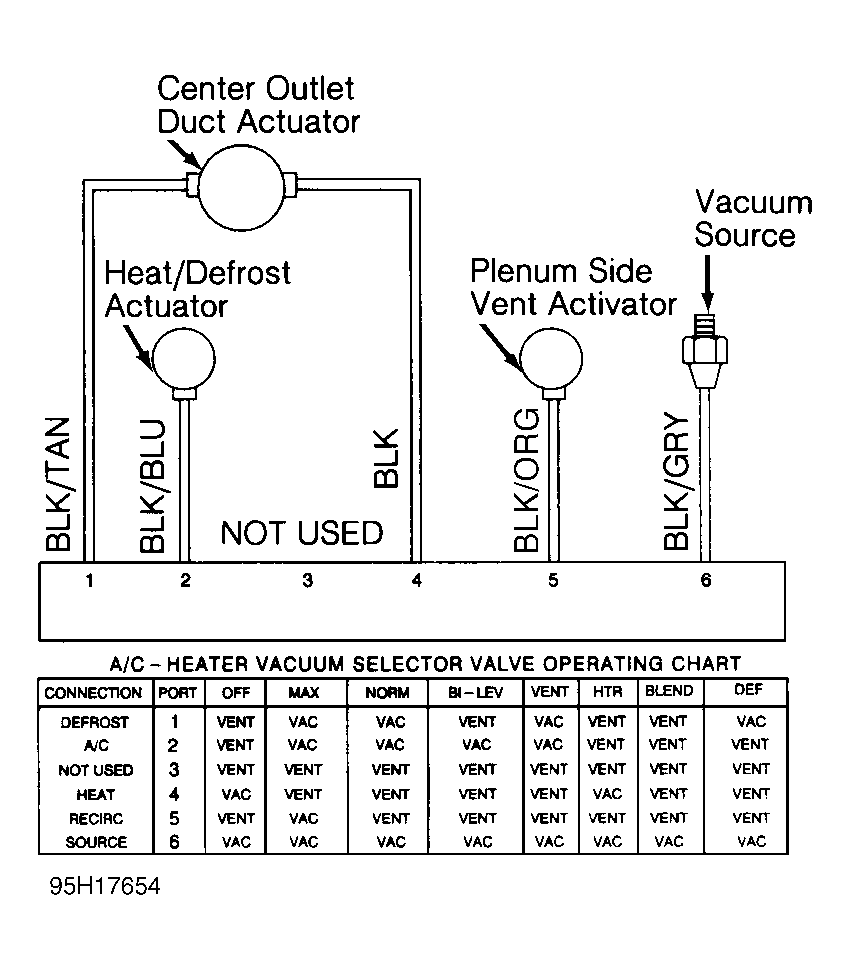

NOTE: To identify heater vacuum selector valve operation at specified modes, see Figure.
