Jimmy 2D Utility, 4WD, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - 4.3L
>>
Connector Identification
>>
VCM Connectors
>>
C3
VCM Connectors: C3

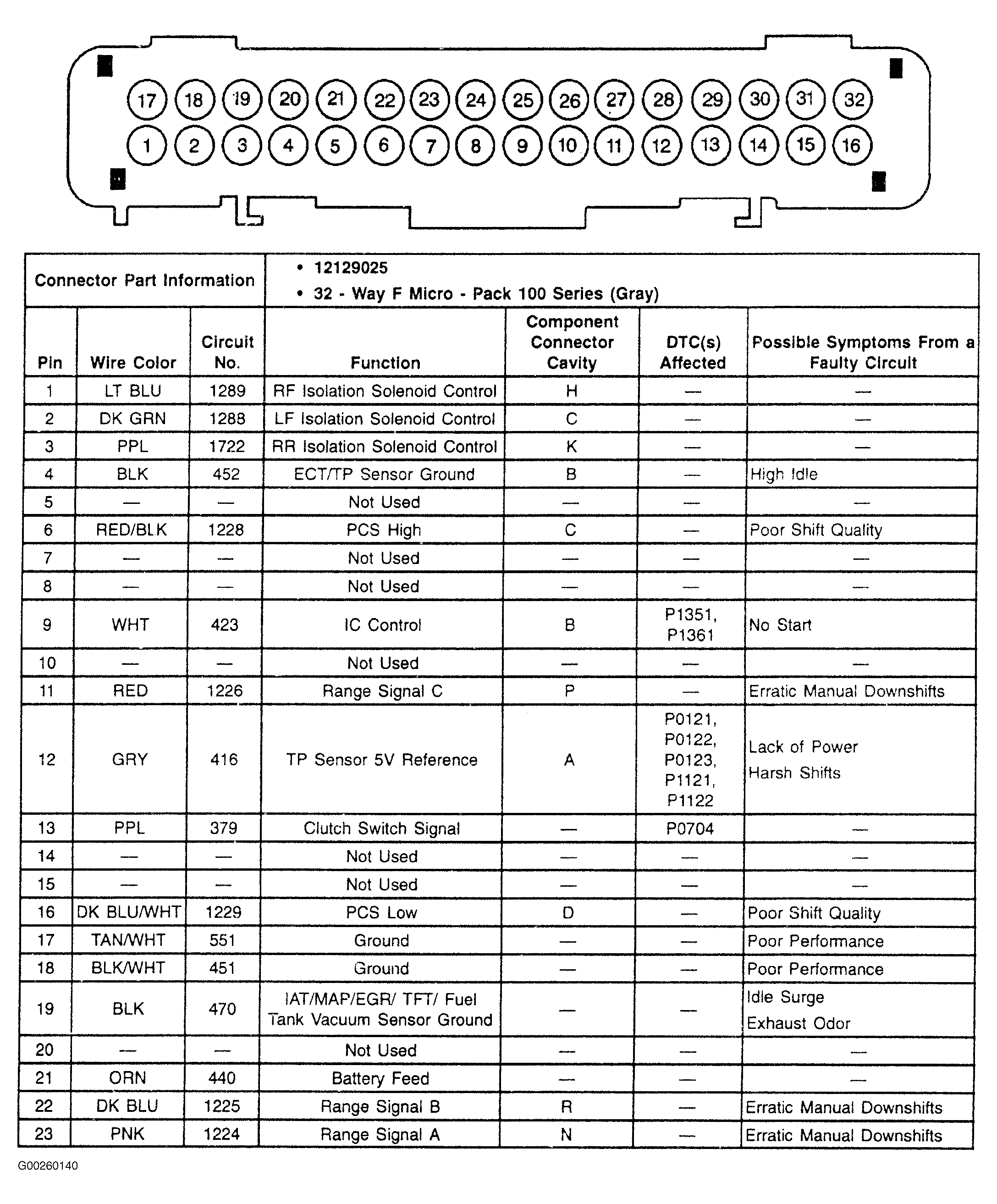

Fig 1: Identifying VCM 32-Pin Connector C3 (Gray - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.

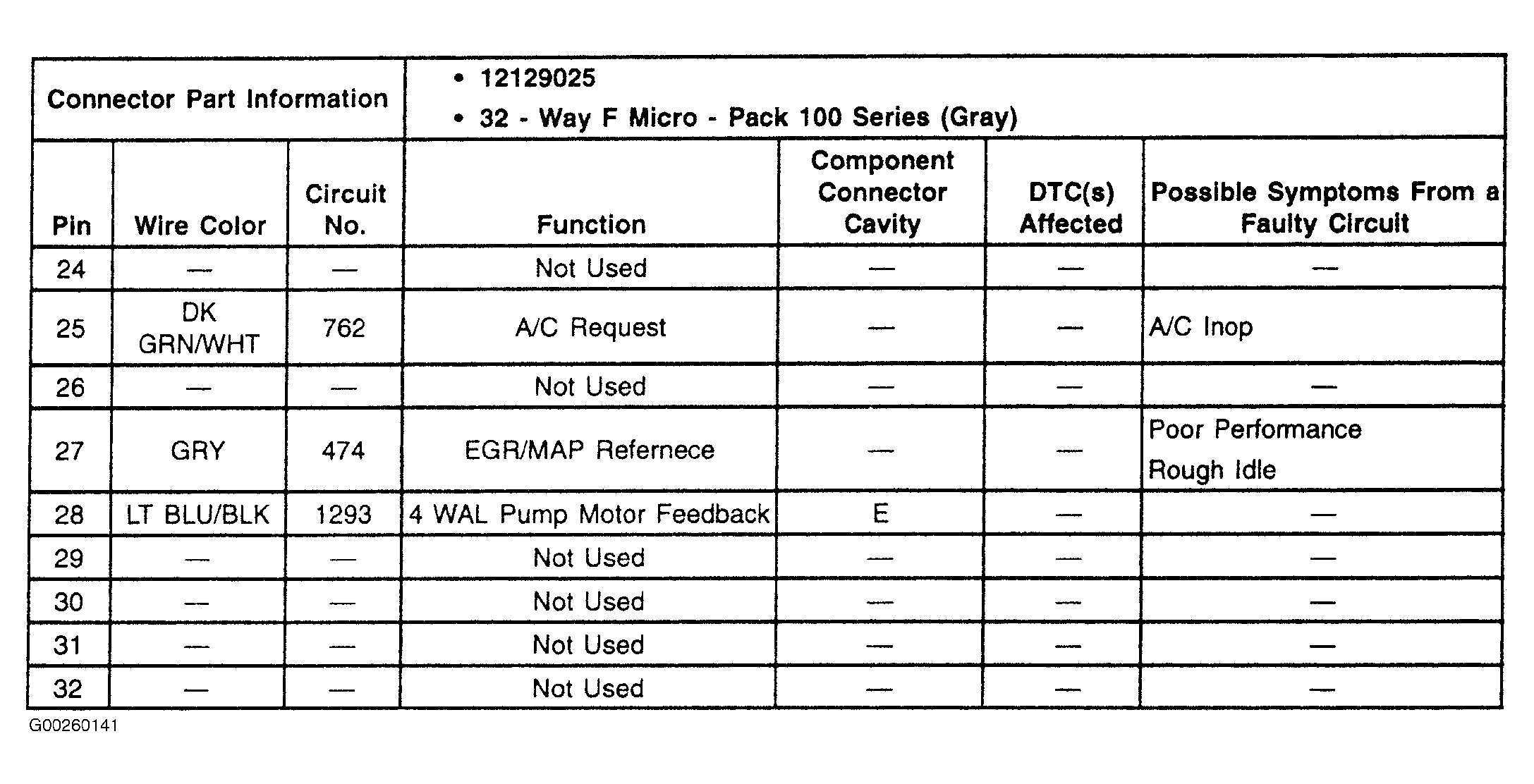

Fig 2: Identifying VCM 32-Pin Connector C3 (Gray - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
