Diagnostic Aids

Fast idle and poor performance will exist when PCM is in backup fuel. If DTC P0251 is also set, use scan tool on snap shoot mode to properly identify fault. If air exists in fuel system (vehicle runs out of fuel), DTC could set.

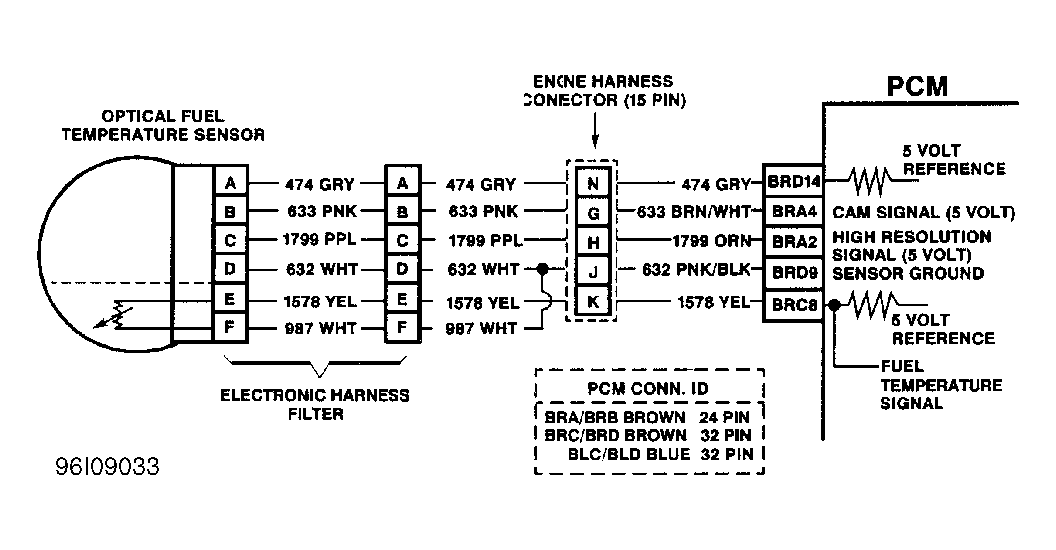

Fig 1: DTC P0370 Schematic
G96I09033
