Slip Ring End Frame: Removal

  1. Remove three rectifier bridge to stator nuts.
  2. Remove stator.
  3. Remove one screw from the brush holder and two insulated screws from the regulator connector.
  4. Remove brush holder, regulator, and connector from the end frame. See Fig 1.
    5. Fig 1: View Of Slip Ring End Frame With Stator Removed
    G00403539Courtesy of GENERAL MOTORS CORP.
  6. Remove BAT terminal nut from the insulated heat sink. See Fig 2.

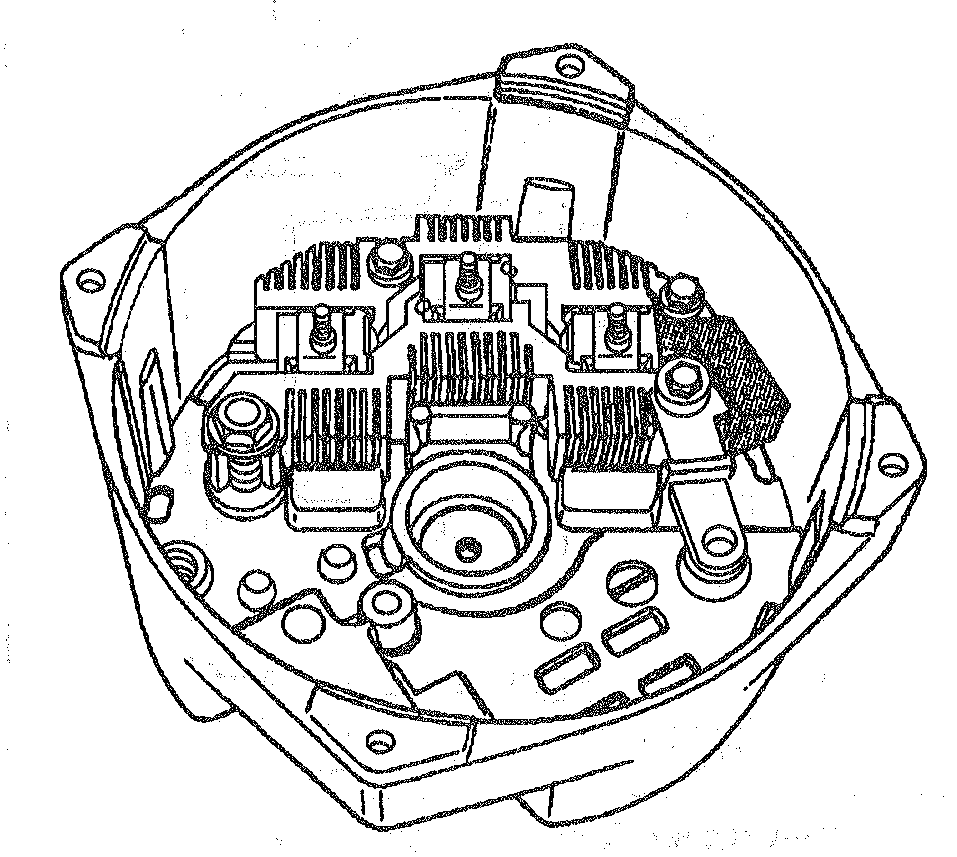

    7. Fig 2: View Of Rectifier Bridge In End Frame
    G00403540Courtesy of GENERAL MOTORS CORP.
  8. Remove "BAT" terminal from the outside of the frame.
