Test A: Both Power Mirrors Do Not Operate

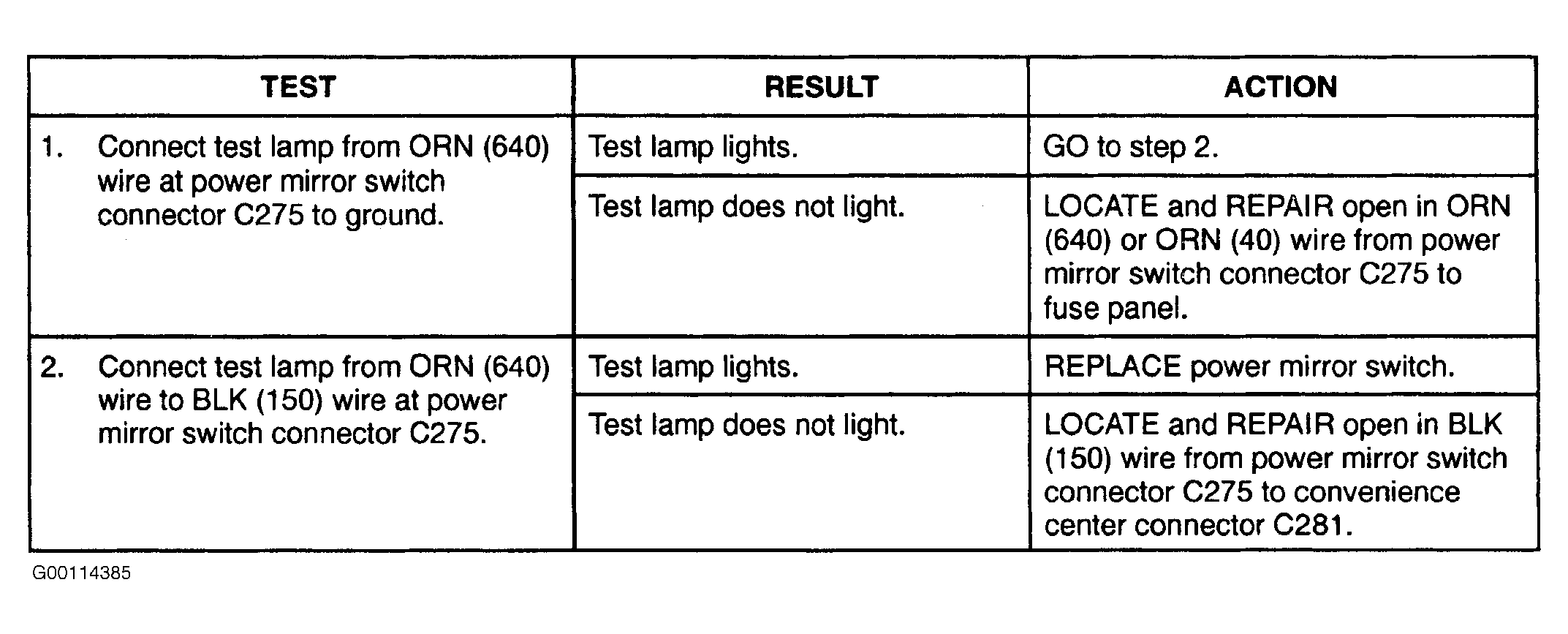

If both power mirrors do not operate, see Fig 1 .

Fig 1: Test A: Both Power Mirrors Do Not Operate

G00114385

Courtesy of GENERAL MOTORS CORP.
