Trouble Shooting Charts

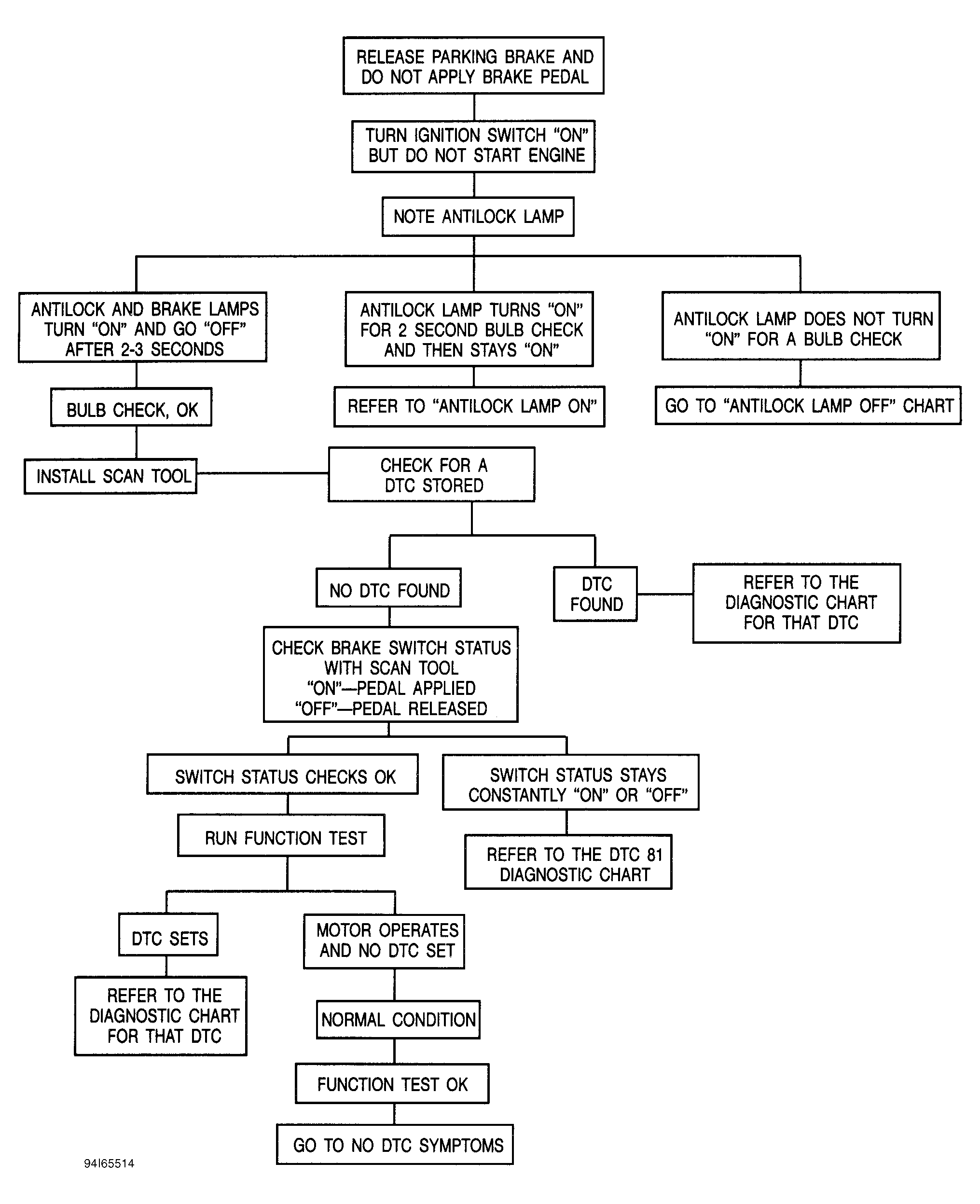

Fig 1: Functional Test (2WD)

G94I65514

Courtesy of GENERAL MOTORS CORP.

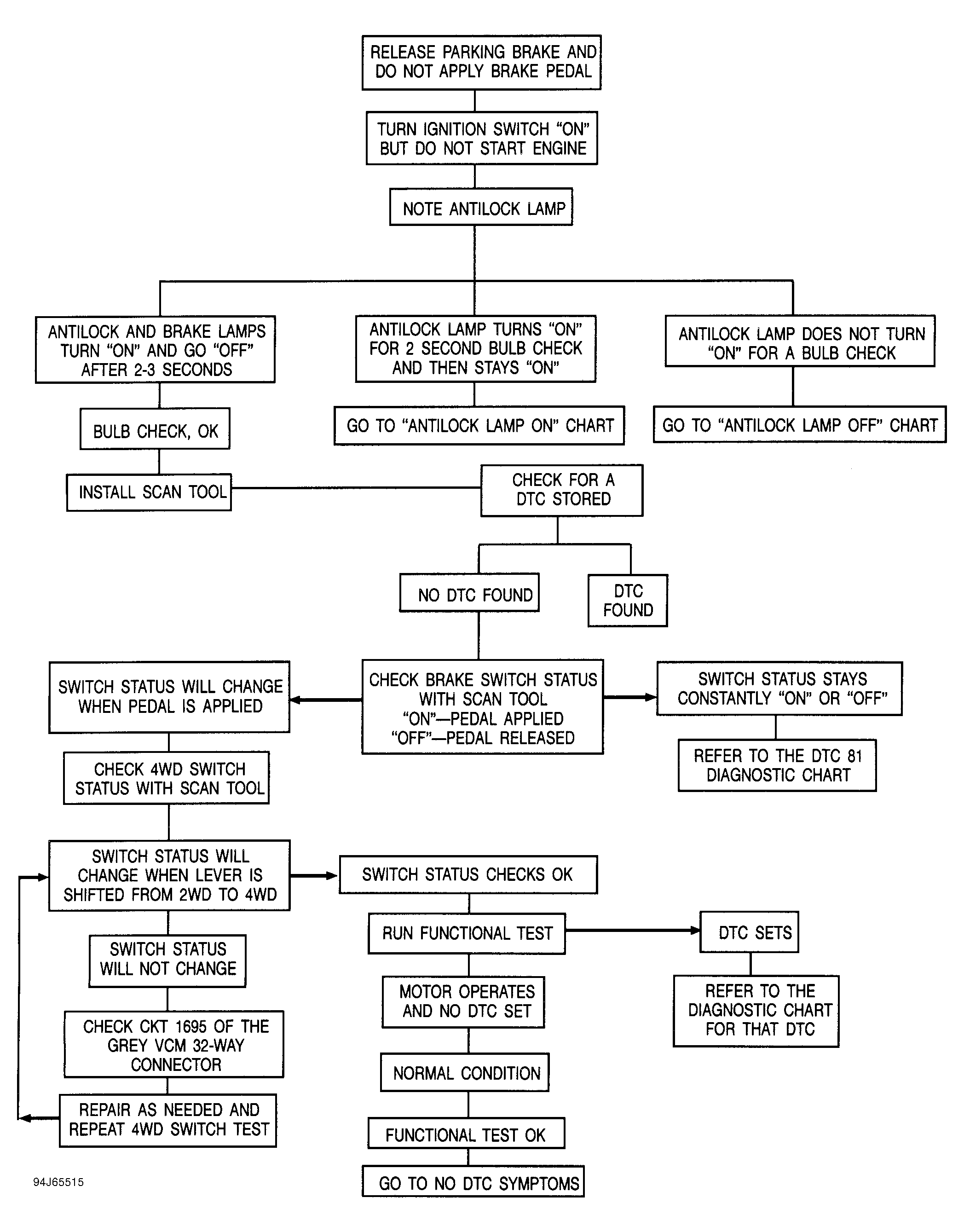

Fig 2: Functional Test (4WD)

G94J65515

Courtesy of GENERAL MOTORS CORP.

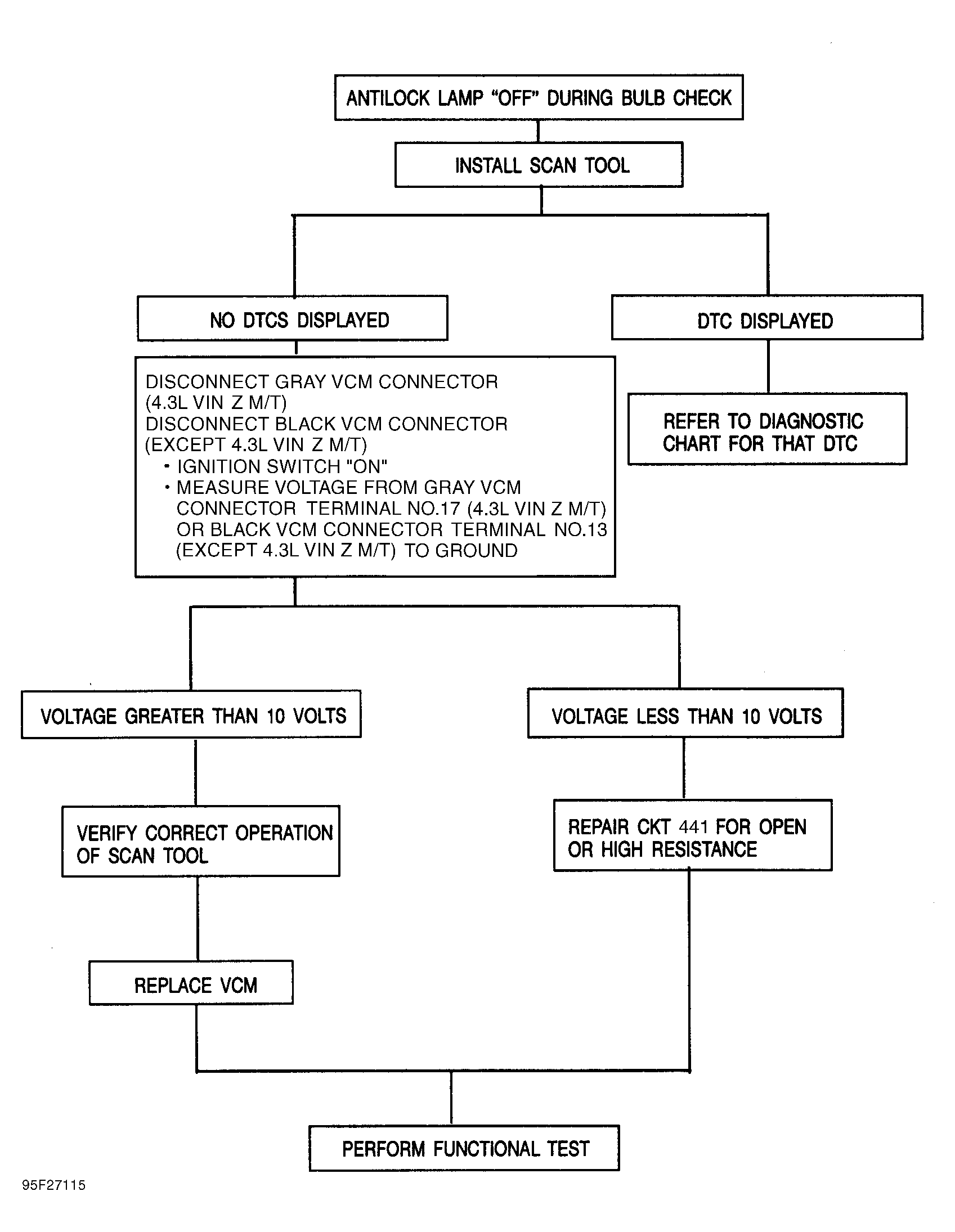

Fig 3: ANTI-LOCK Light Off - No DTC's

G95F27115

Courtesy of GENERAL MOTORS CORP.

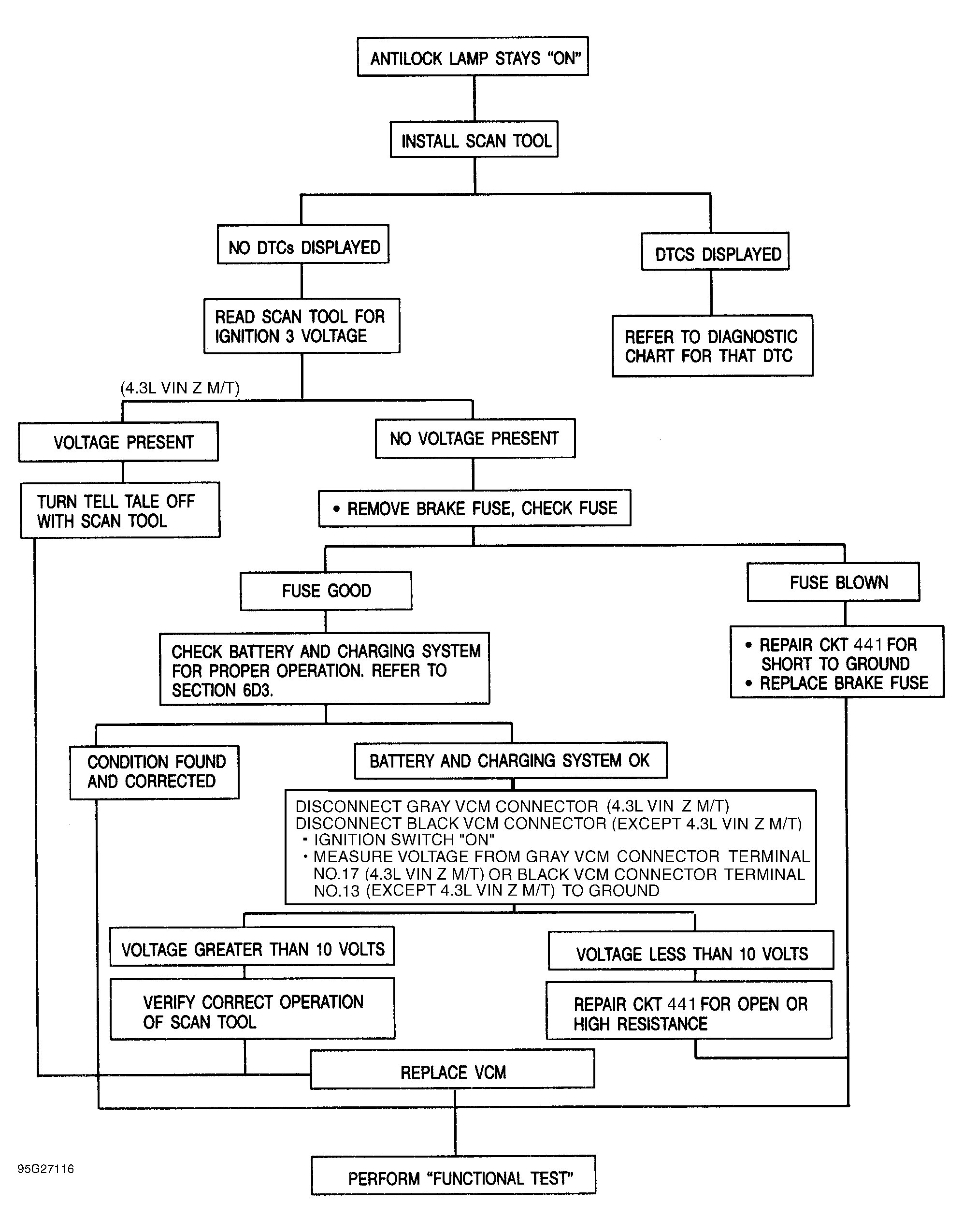

Fig 4: ANTI-LOCK Light On - No DTC's

G95G27116

Courtesy of GENERAL MOTORS CORP.

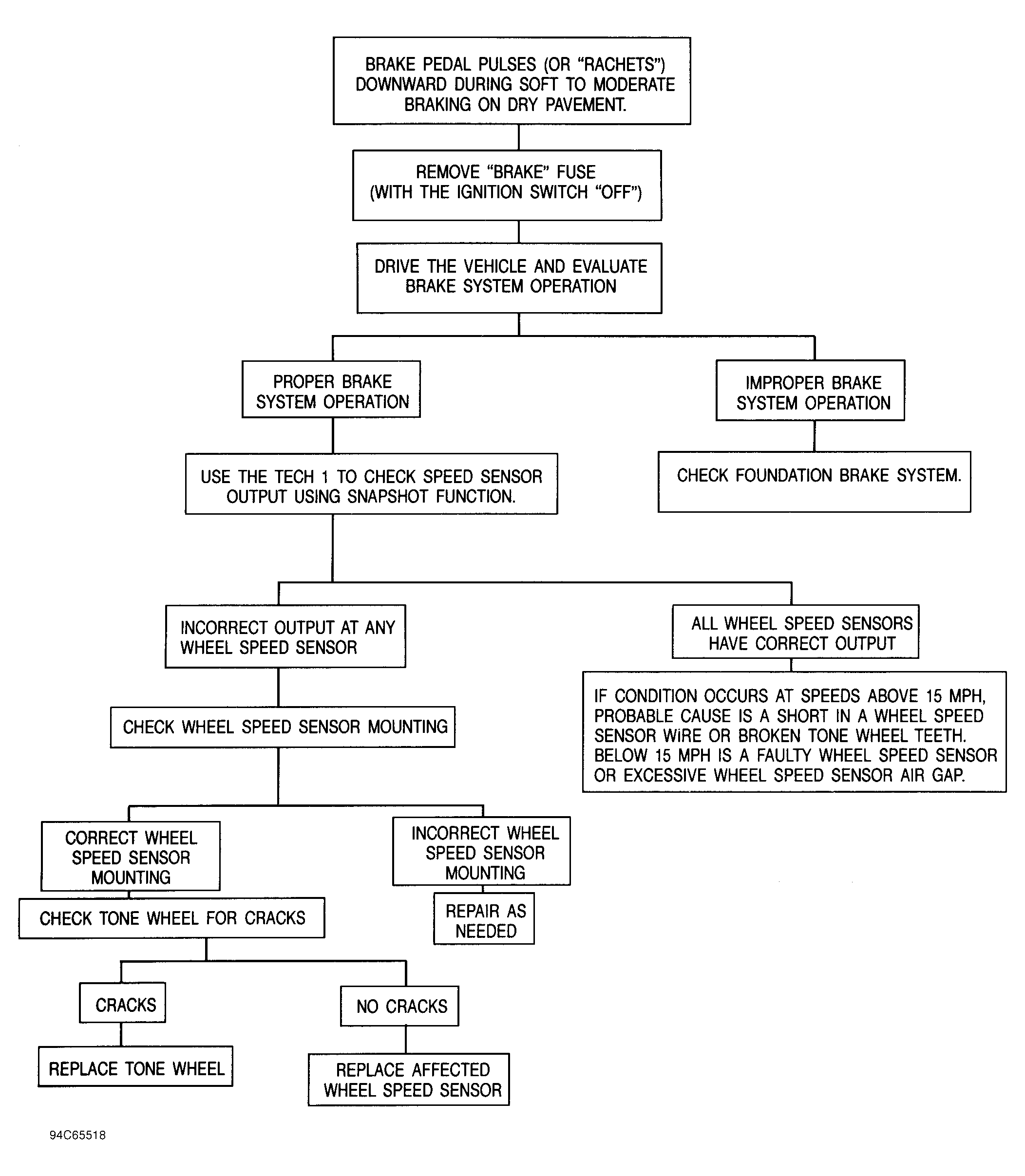

Fig 5: Brake Pedal Pulses - No DTC's

G94C65518

Courtesy of GENERAL MOTORS CORP.

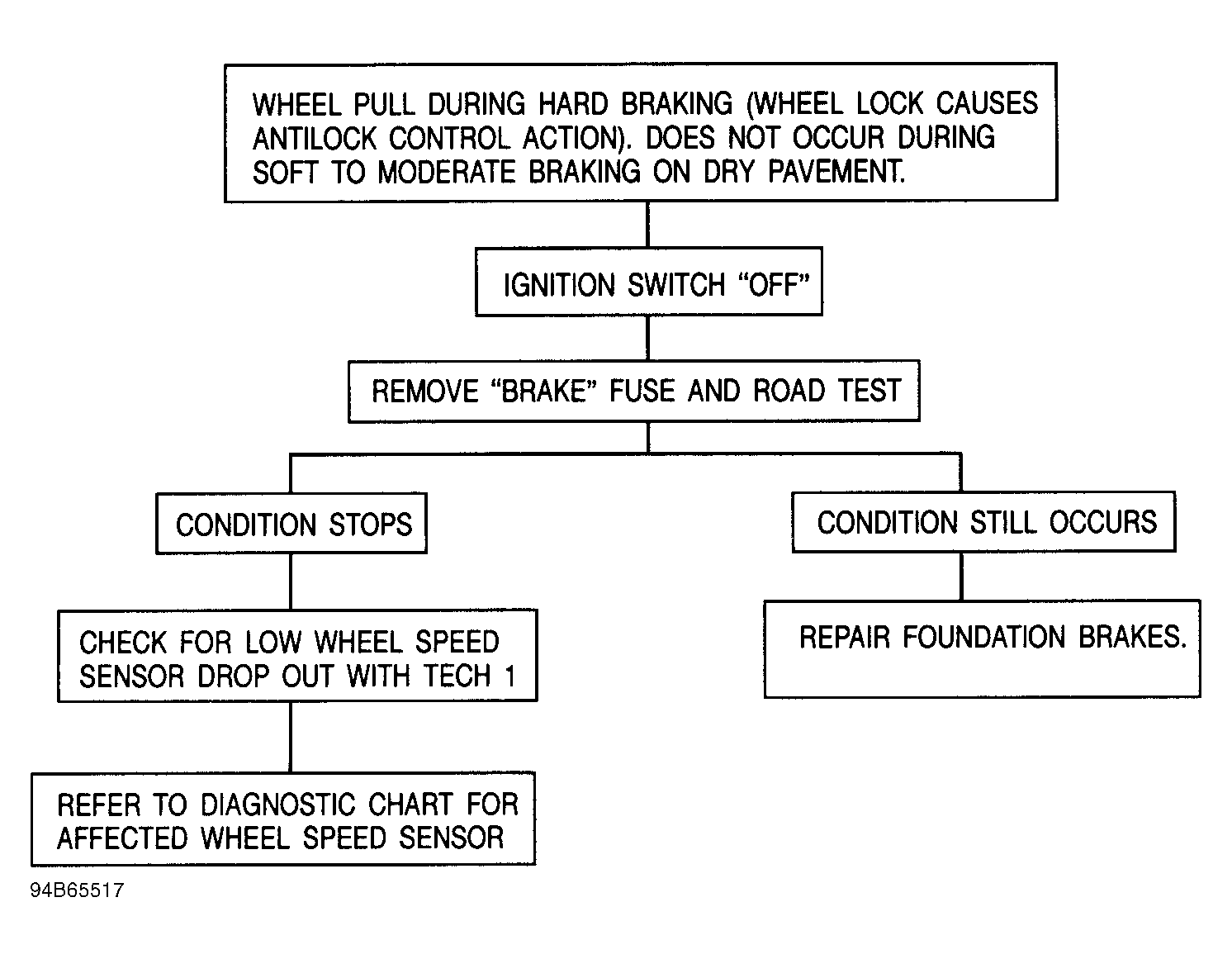

Fig 6: Wheel Pull During Hard Braking - No DTC's

G94B65517

Courtesy of GENERAL MOTORS CORP.
