Diagnostic Aids

Check for faulty connections at APP module, PCM and instrument cluster connector.

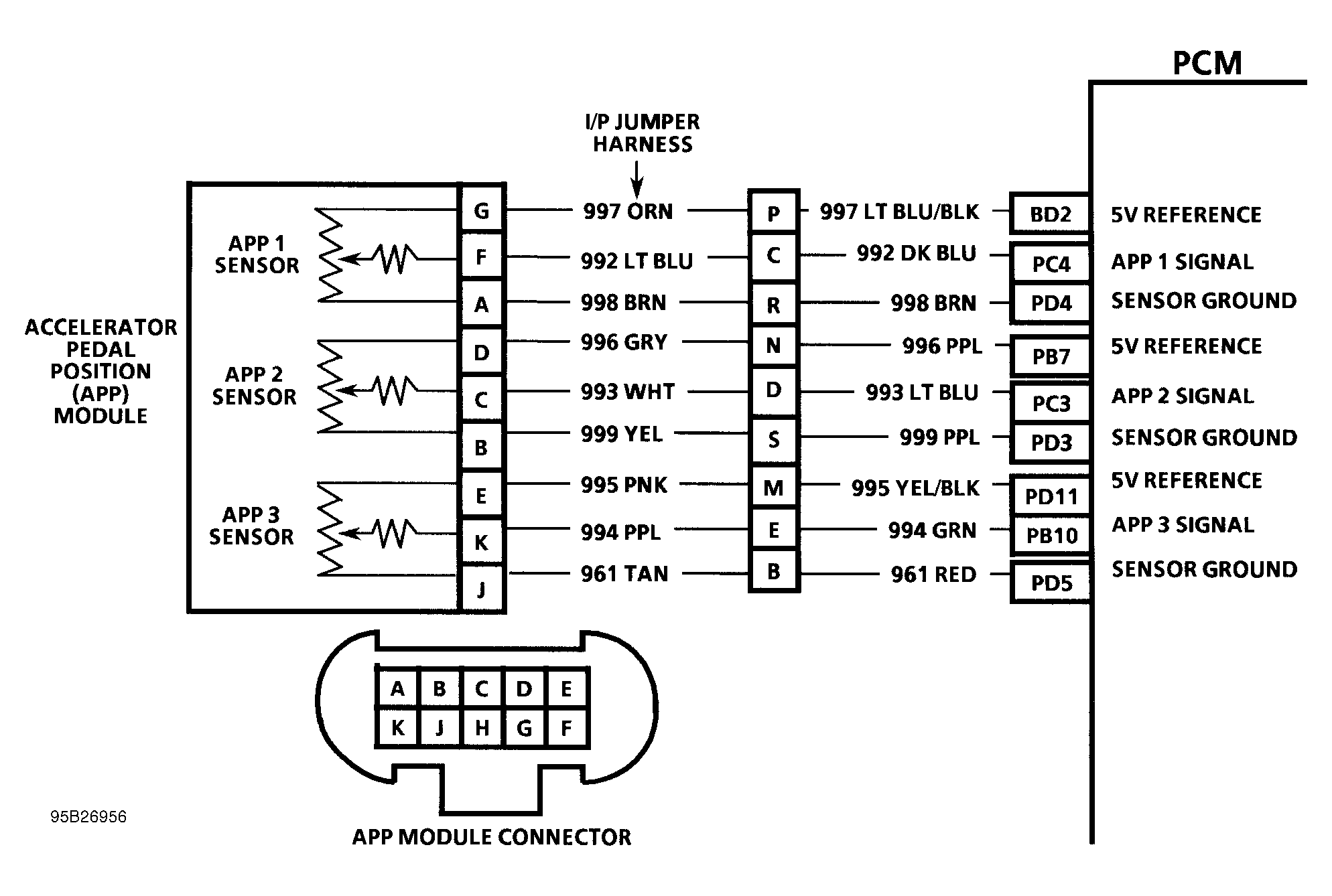

Fig 1: DTC 84 Schematic ("G" Series) Accelerator Pedal Position (APP) Circuit Fault

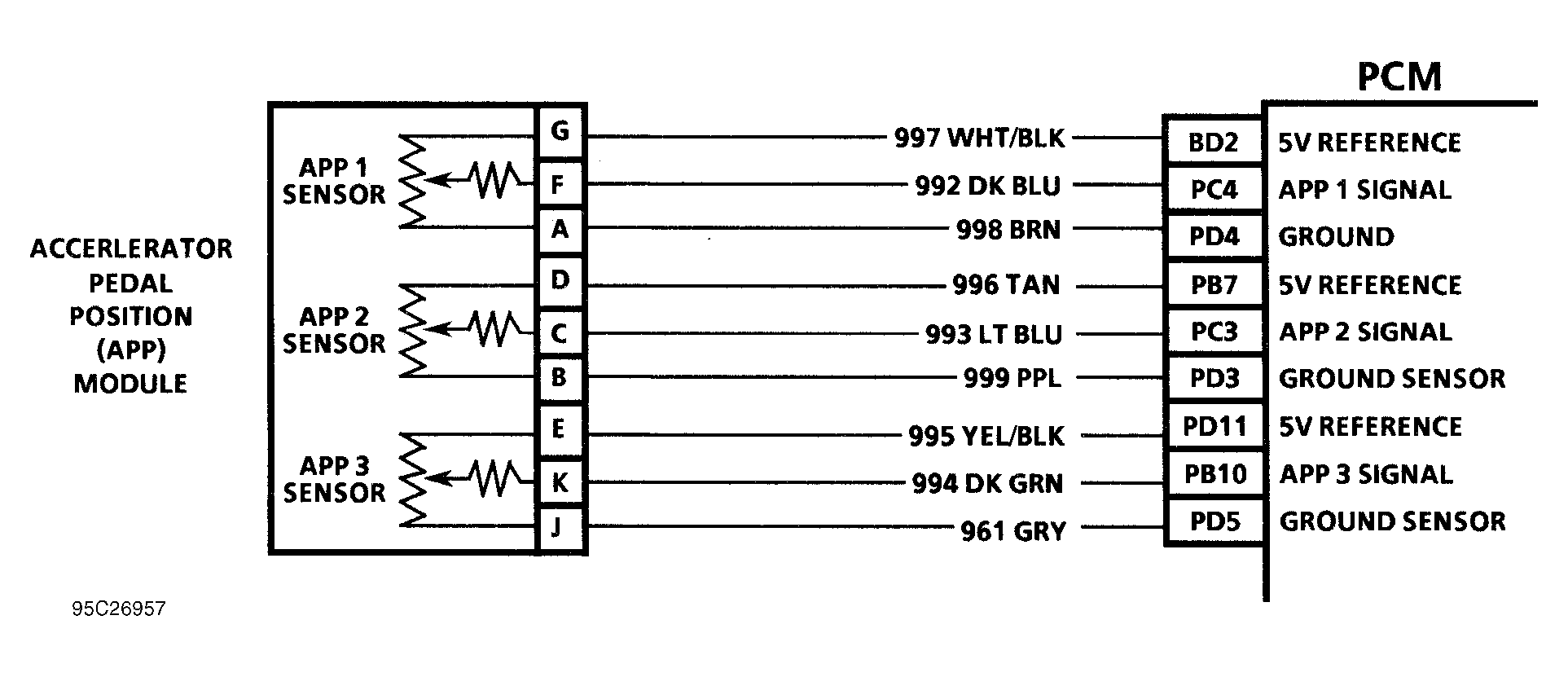

Fig 2: DTC 84 Schematic ("P" Series) Accelerator Pedal Position (APP) Circuit Fault

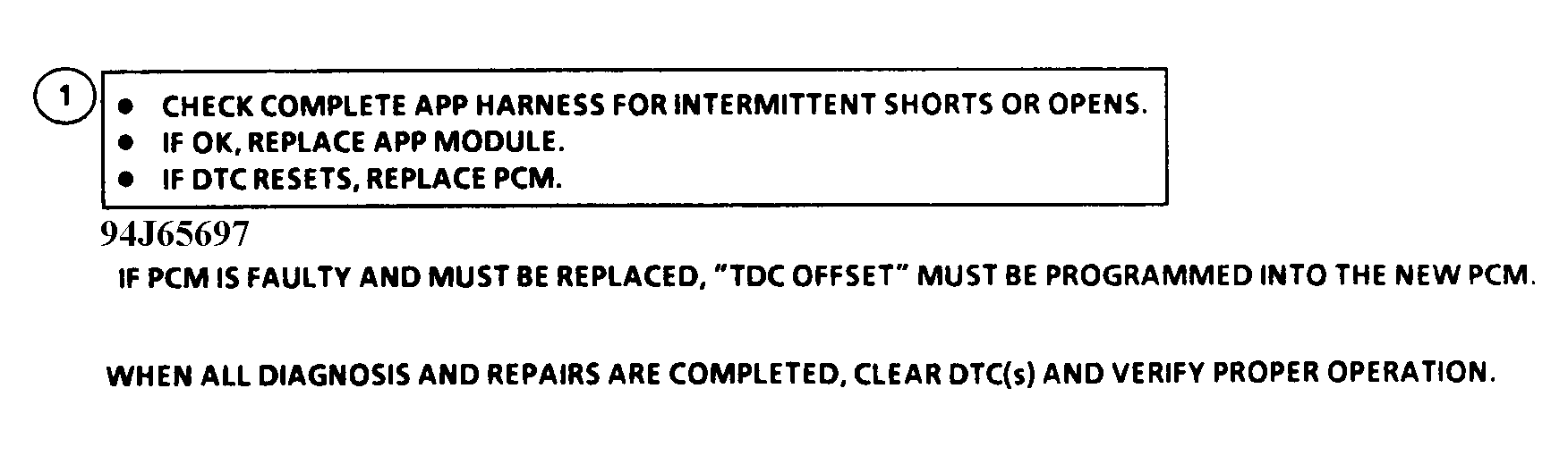

Fig 3: DTC 84 Flow Chart (All Models) Accelerator Pedal Position (APP) Circuit Fault
