Diagnostic Aids

Check connections at VSS buffer and PCM. Check for DTC 24 or DTC 72.

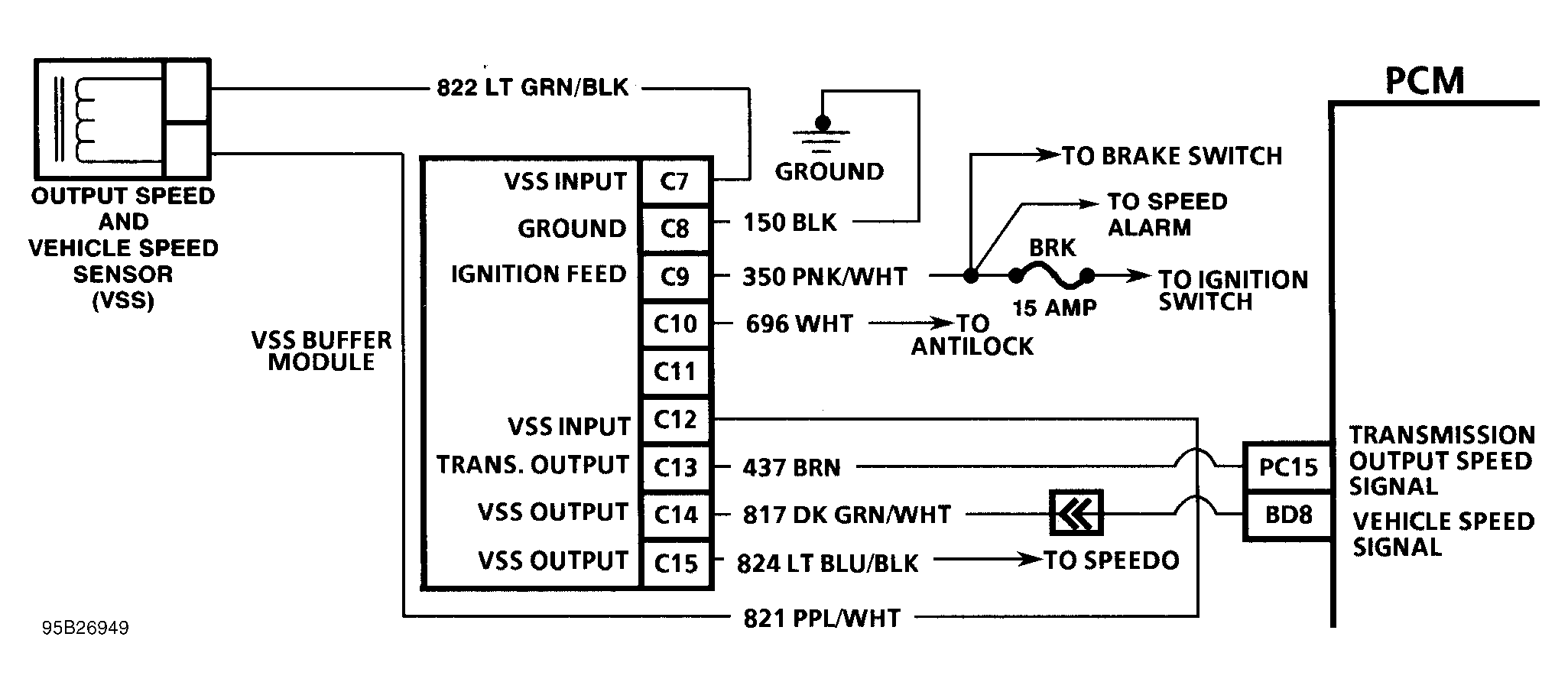

Fig 1: DTC 16 Schematic ("G" Series) Vehicle Speed Signal Buffer Fault

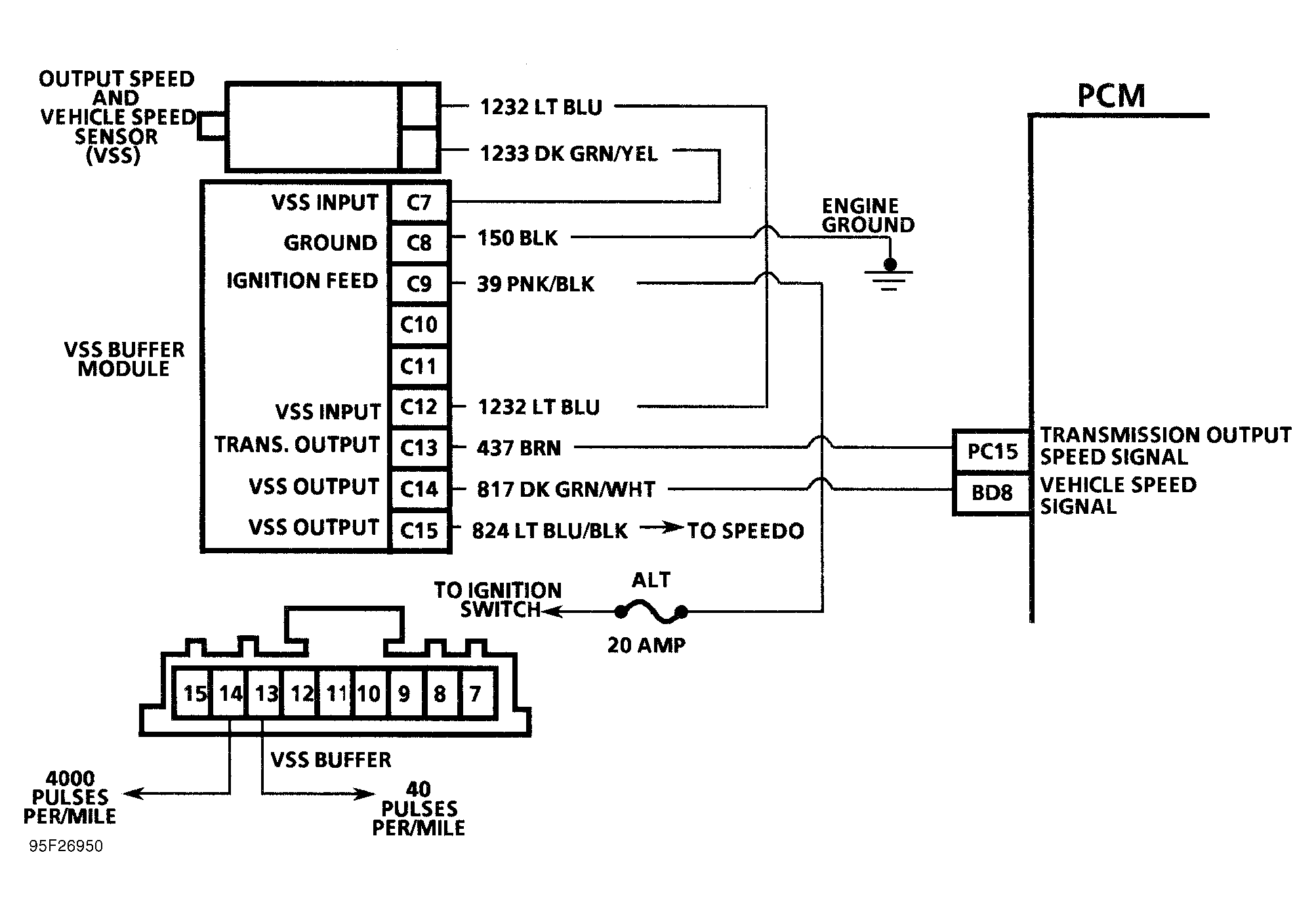

Fig 2: DTC 16 Schematic ("P" Series) Vehicle Speed Signal Buffer Fault

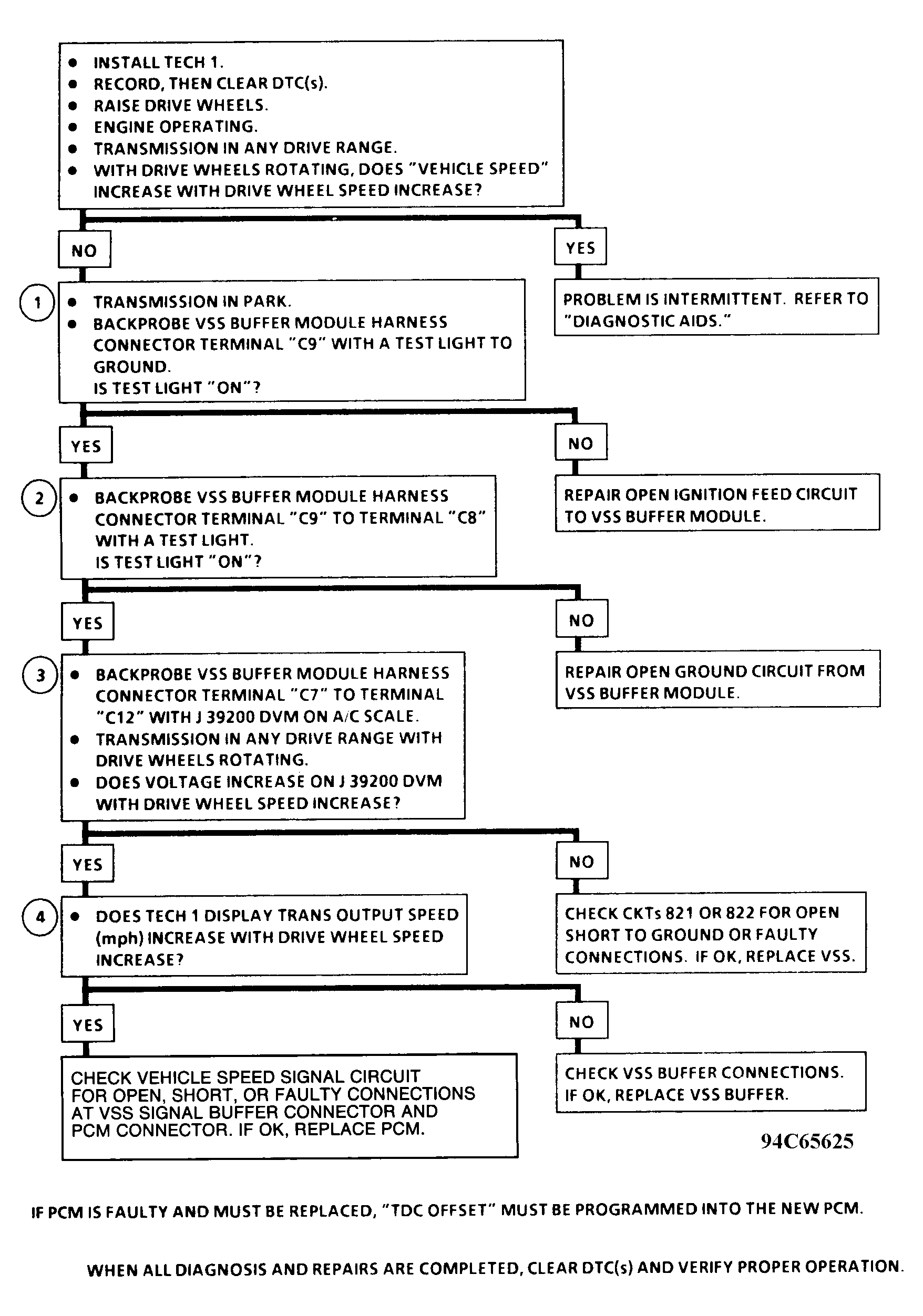

Fig 3: DTC 16 Flow Chart (All Models) Vehicle Speed Signal Buffer Fault
