Diagnostic Aids

Check for poor connections in related circuits.

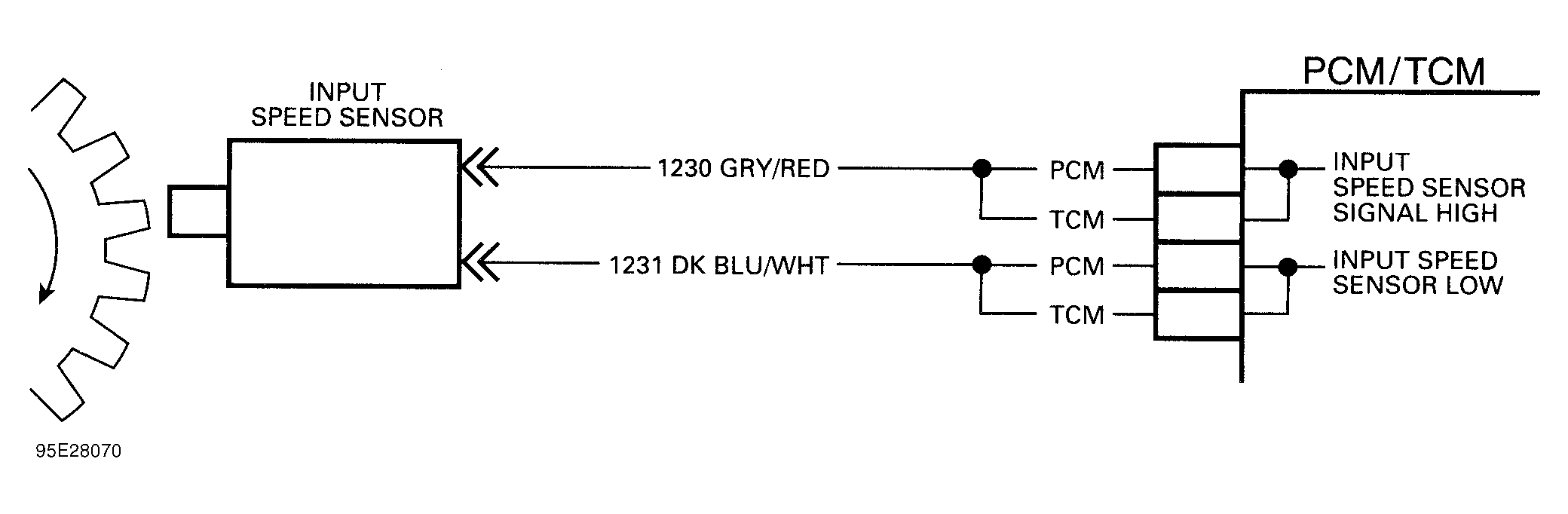

Fig 1: Code 74 Schematic (4.3L) Transmission Input Speed Error 4L80-E Transmission
G95E28070
Fig 2: Code 74 Flow Chart (4.3L) Transmission Input Speed Error 4L80-E Transmission
G94I66058
