EXPERTEC TSB (51-65-28)

Publication date: 1995-04-27
Reference number: 51-65-28

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 51-65-28, Date of Issue:  04/27/95

SMU - SECTION 3 - - DRIVEABILITY & EMISSIONS

Model(s): 1994-95 Chevrolet and GMC Truck C/K, G, P3

Bulletin No.: GMC 51-65-28

Date: 04/27/1995

MODELS AFFECTED

1994-95 Chevrolet and GMC Truck C/K, G, P3 Models with 6.5L Diesel Engine (VINs F, P, S - RPOs L65, L49, L56)

SERVICE INFORMATION

DTC 34 Diagnostic Chart was updated to better diagnosis timing errors due to a "skewed" crankshaft position sensor.

This information replaces the information found in Section 3, under DTC 34, Diagnostic Flow Chart.

BULLETIN ILLUSTRATION LIST

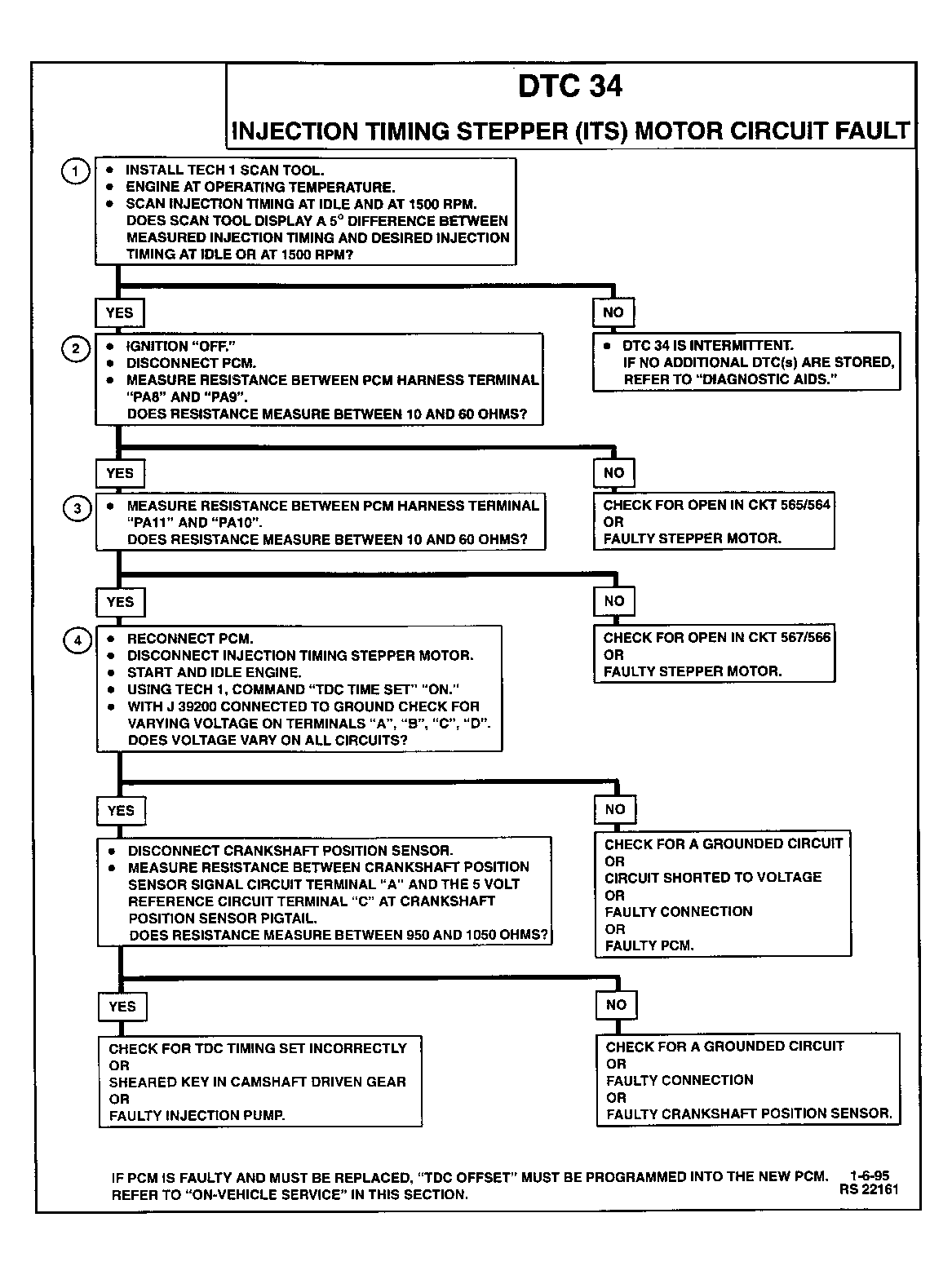

Fig 1: Graphic
GE00W012081
