Diagnostic Aids

Check for poor connections in PCM related circuits.

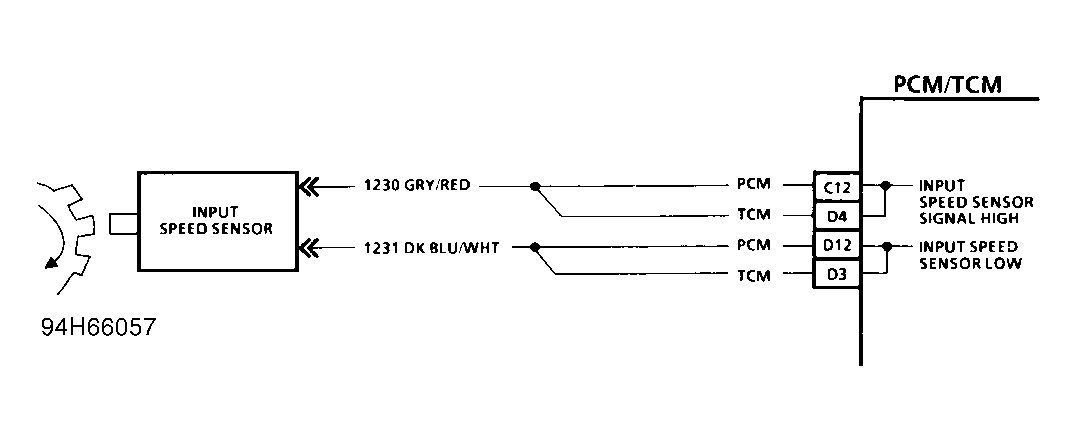

Fig 1: DTC 74 Schematic (4L80-E) Transmission Input Speed Sensor Circuit
G94H66057

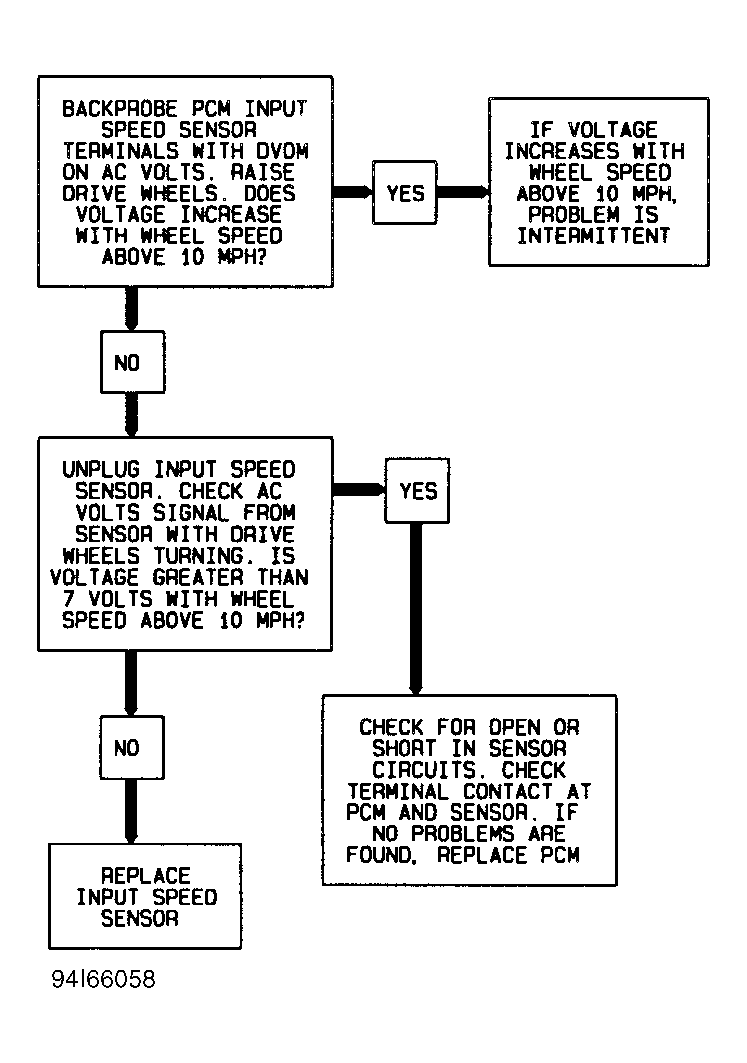

Fig 2: DTC 74 Flow Chart (4L80-E) Transmission Input Speed Sensor Circuit
G94I66058
