Diagnostic Aids

An open in either engine shutoff solenoid circuit will cause DTC 13 to set. A no start condition will also exist.

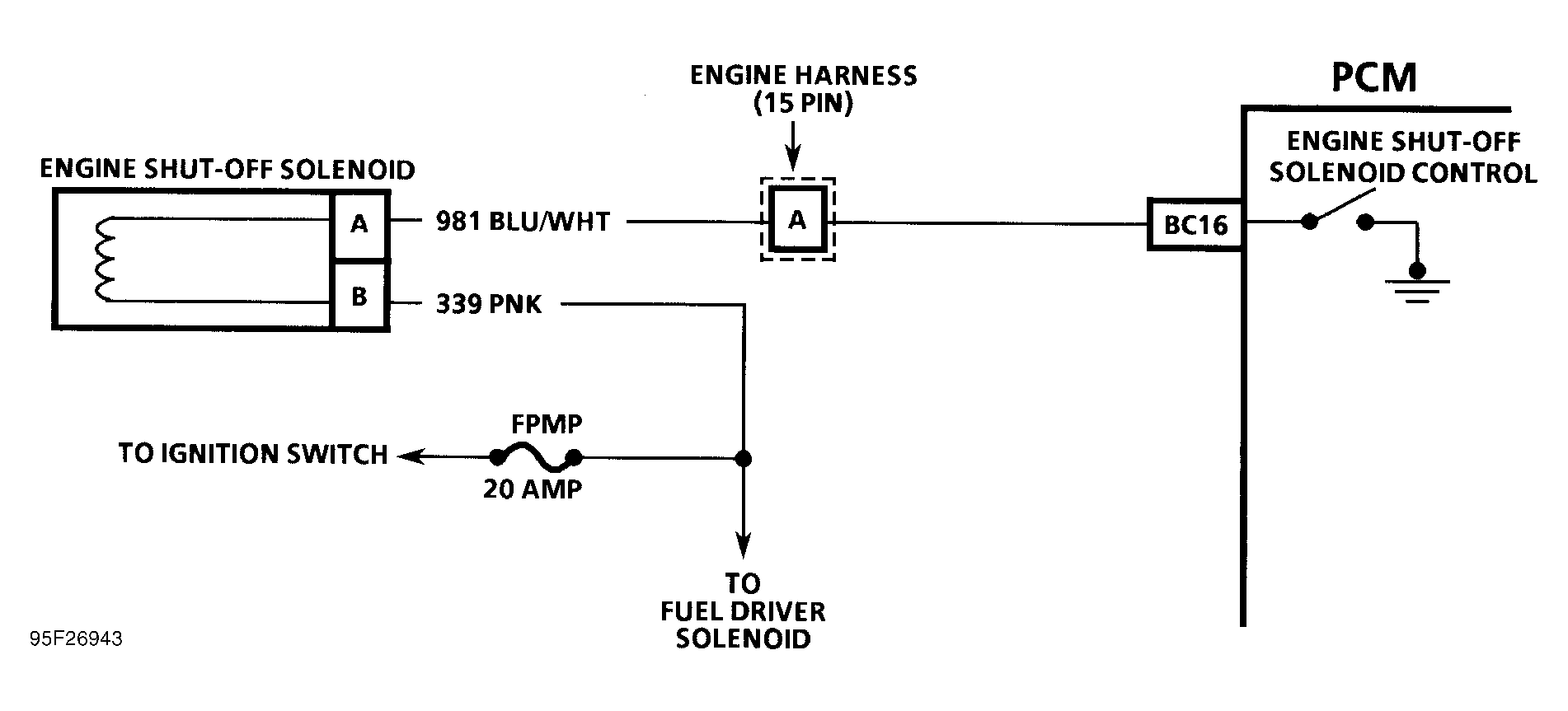

Fig 1: DTC 13 Schematic ("G" Series) Engine Shutoff Solenoid Circuit Fault

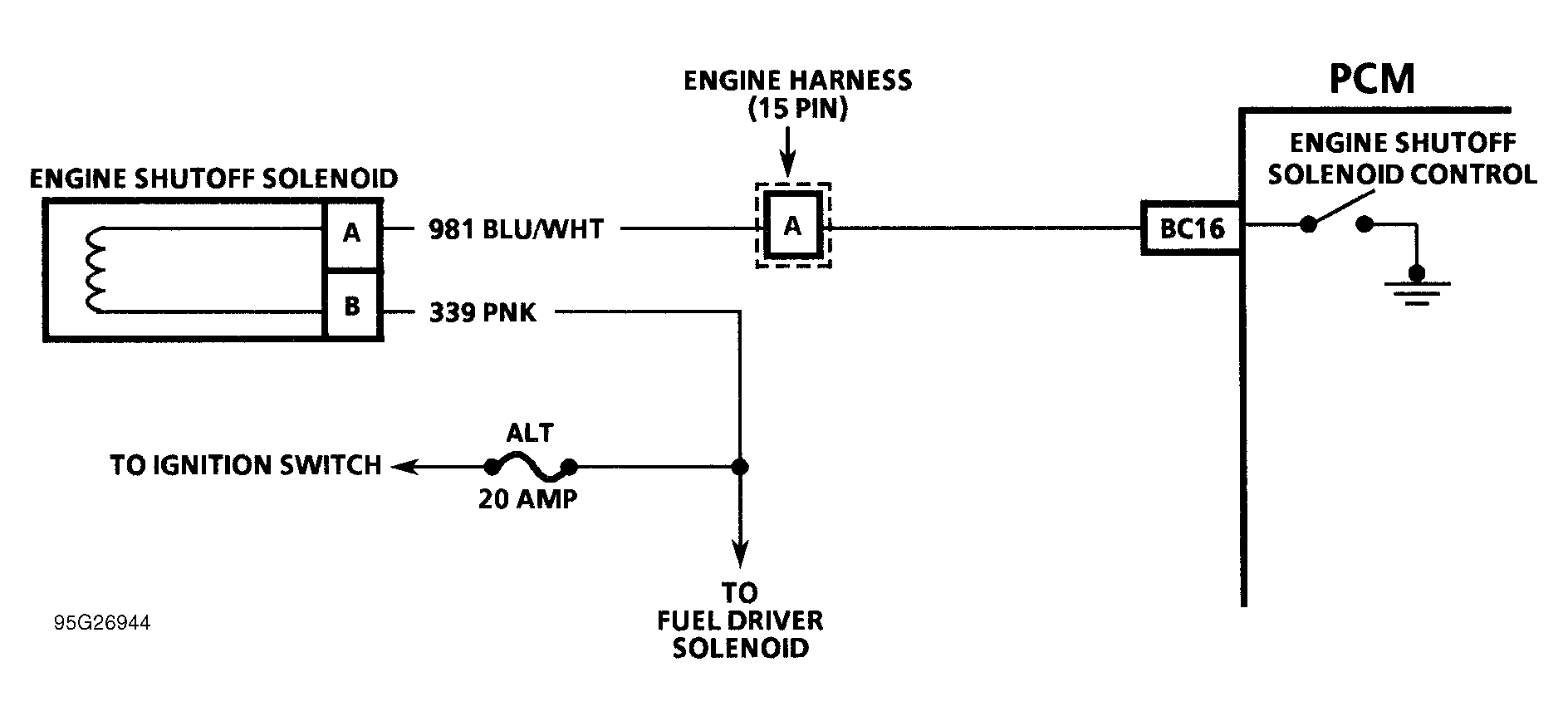

Fig 2: DTC 13 Schematic ("P" Series) Engine Shutoff Solenoid Circuit Fault

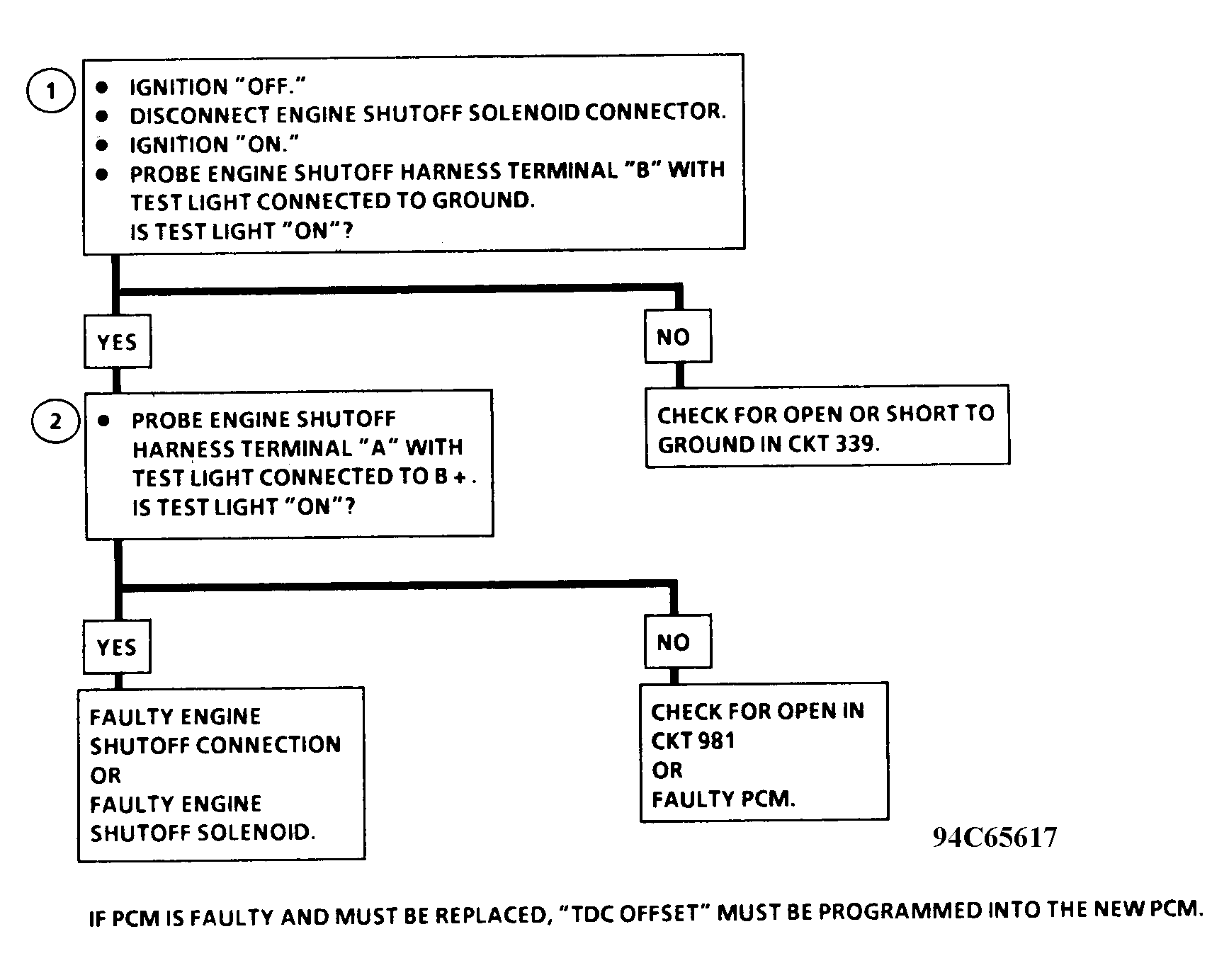

Fig 3: DTC 13 Flow Chart (All Models) Engine Shutoff Solenoid Circuit Fault
