Diagnostic Aids

If engine functions properly, check for a burned out bulb, blown GAUGES or ALT fuse, or an open in the MIL (SERVICE ENGINE SOON) control circuit. This will result in no brake warning light, oil or generator lights, seat belt reminder, etc.

Fig 1: Chart A-1 Schematic ("G" Series) No MIL (Service Engine Soon Light - Models W/ PCM)

Fig 2: Chart A-1 Schematic ("P" Series) No MIL (Service Engine Soon Light - Models W/ PCM)

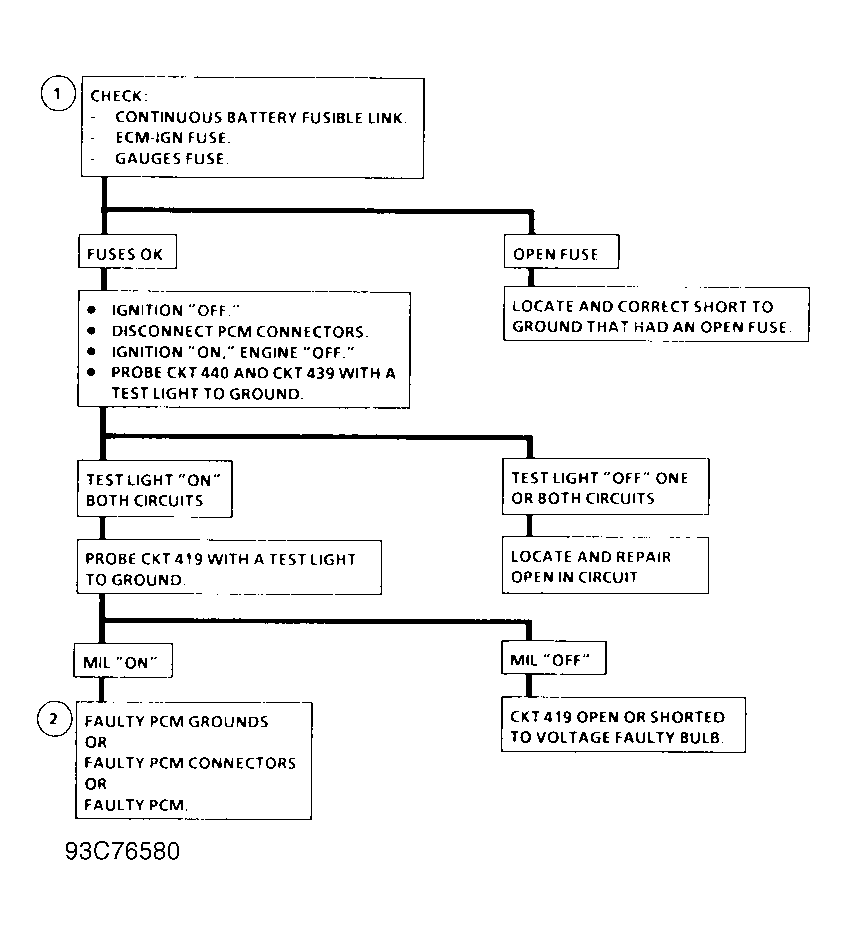

Fig 3: Chart A-1 Flow Chart (All Models) No MIL (Service Engine Soon Light - Models W/ PCM)
