Diagnostic Aids

Check all connections, especially those at transmission pass-thru connector. If code is intermittent, see INTERMITTENTS in TESTS W/O CODES - GASOLINE article.

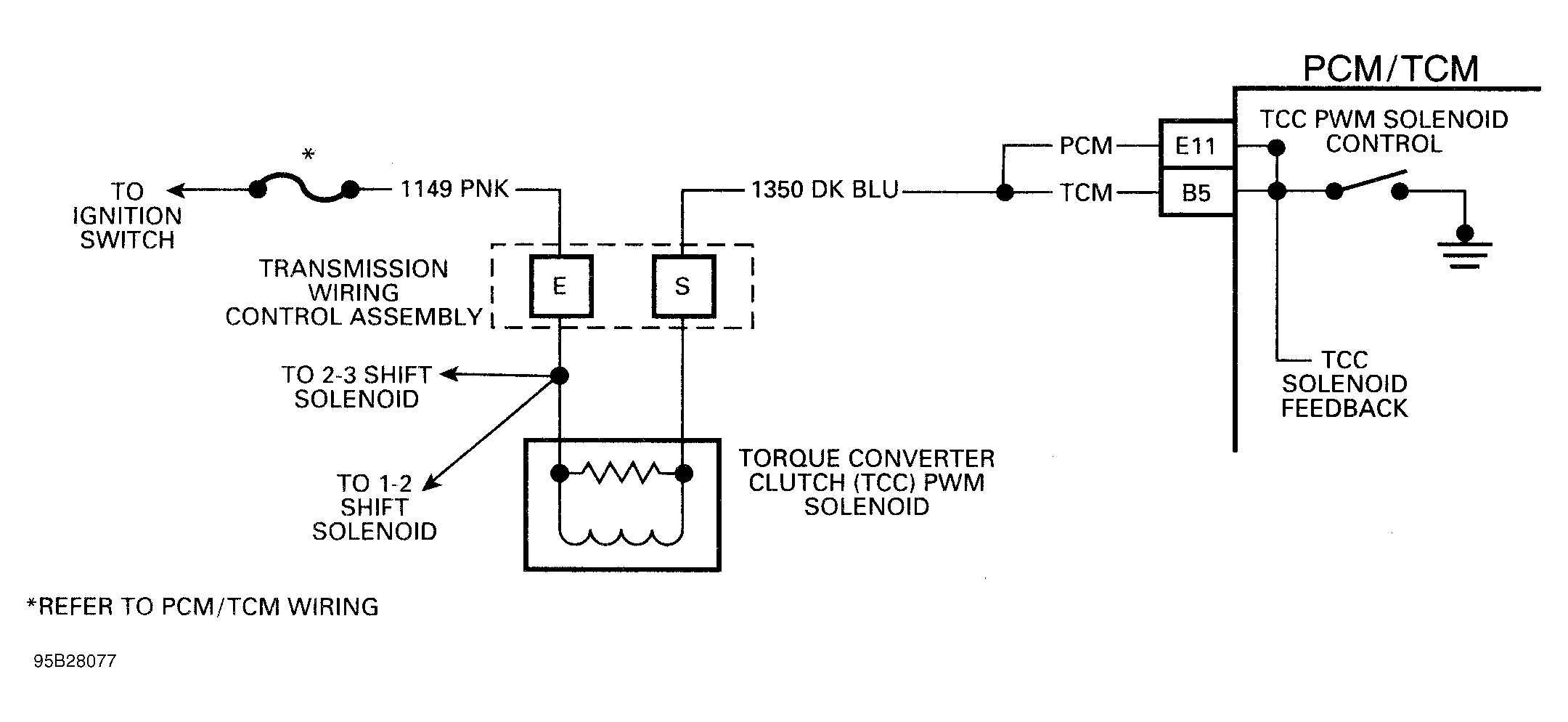

Fig 1: Code 83 Schematic (4.3L) TCC Solenoid Circuit Fault

Fig 2: Code 83 Flow Chart (4.3L) TCC Solenoid Circuit Fault
