Component Location
COMPONENT LOCATION
| Component | Location | |
|---|---|---|

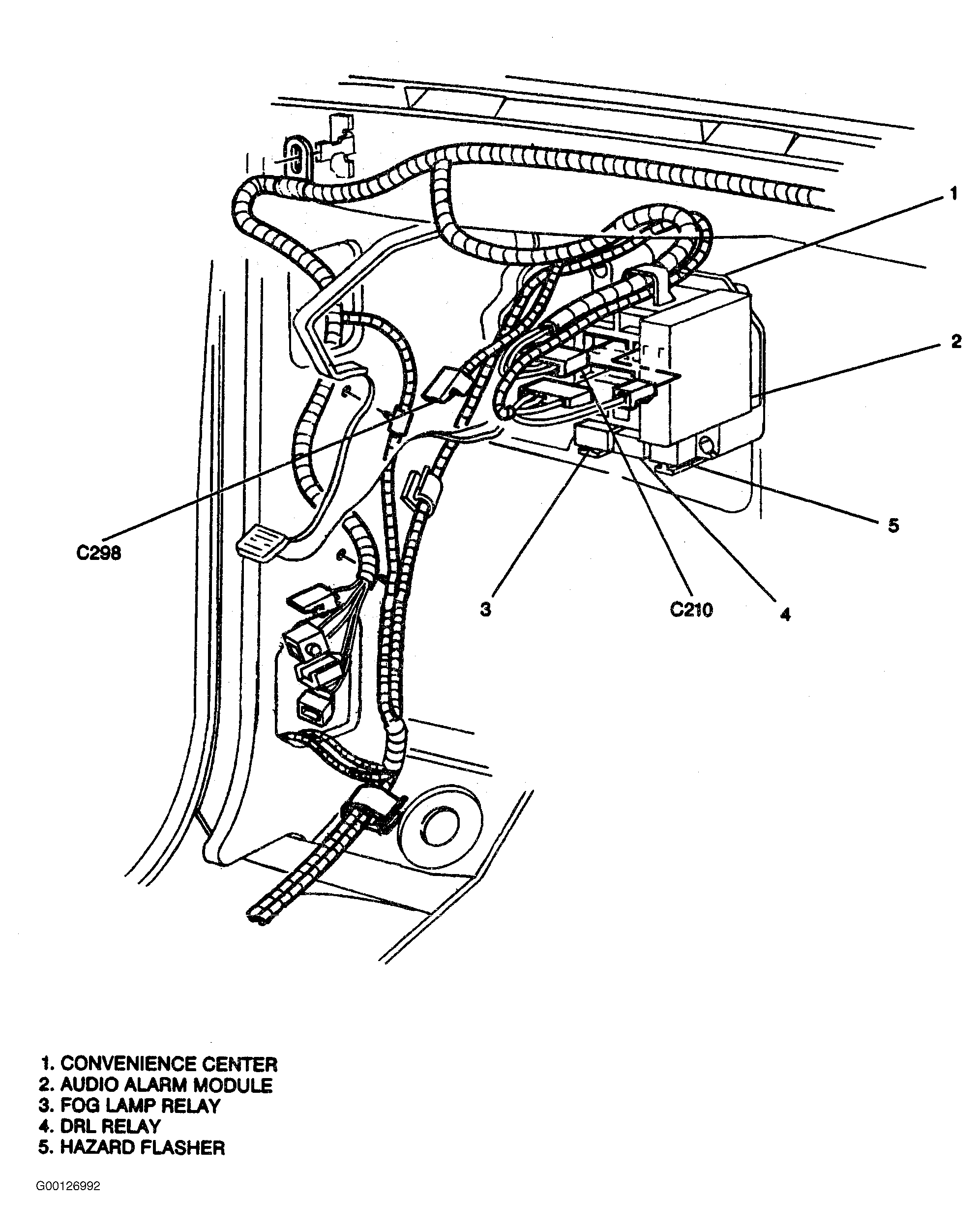

| Convenience Center | Under Left Side Of Instrument panel, On Bulkhead. See Fig 1 . | |
| Door Lock Motor | ||

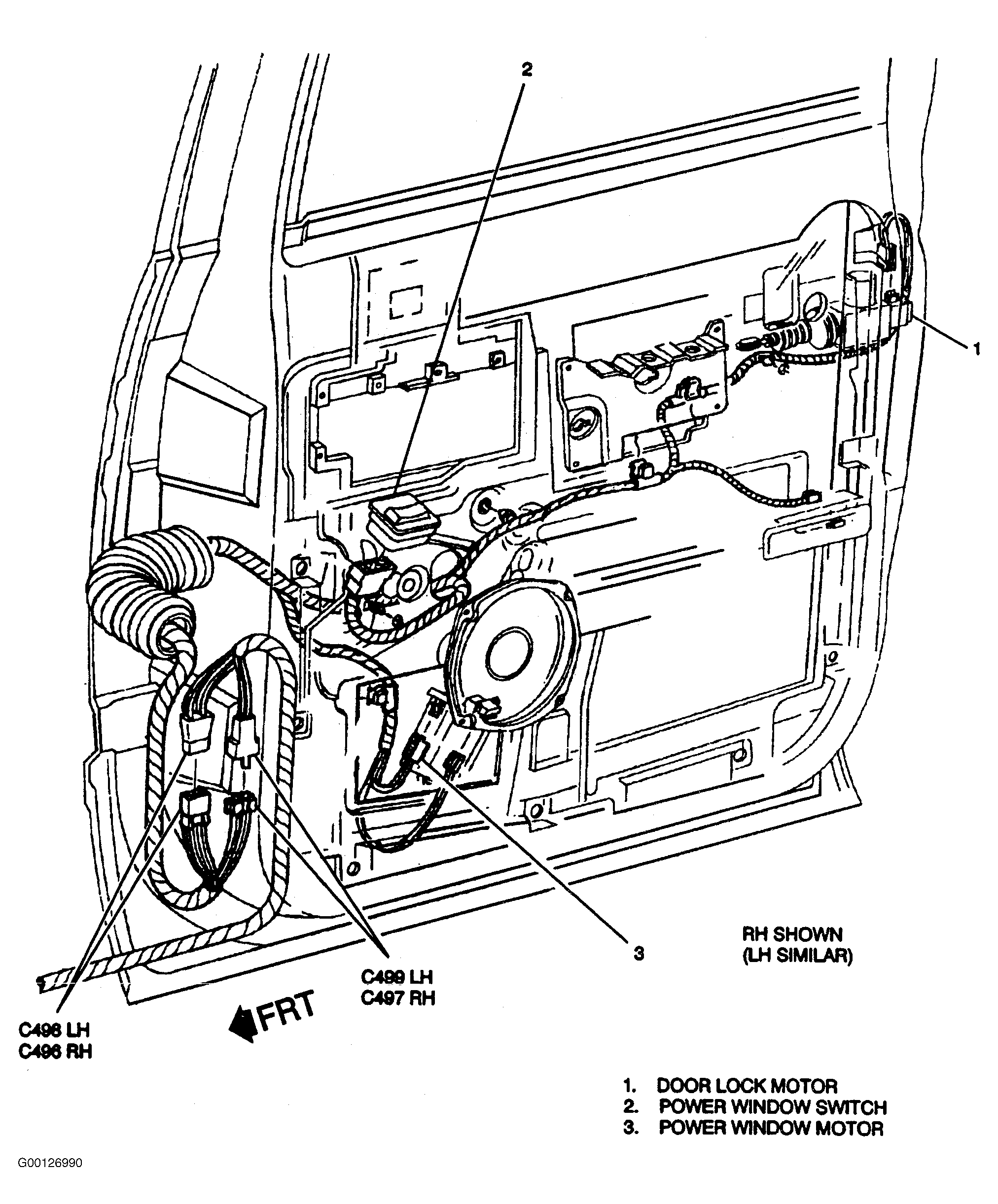

| Right Rear Cargo Door | Inside Door, Lower Portion, Near Free Edge. See Fig 2 . | |

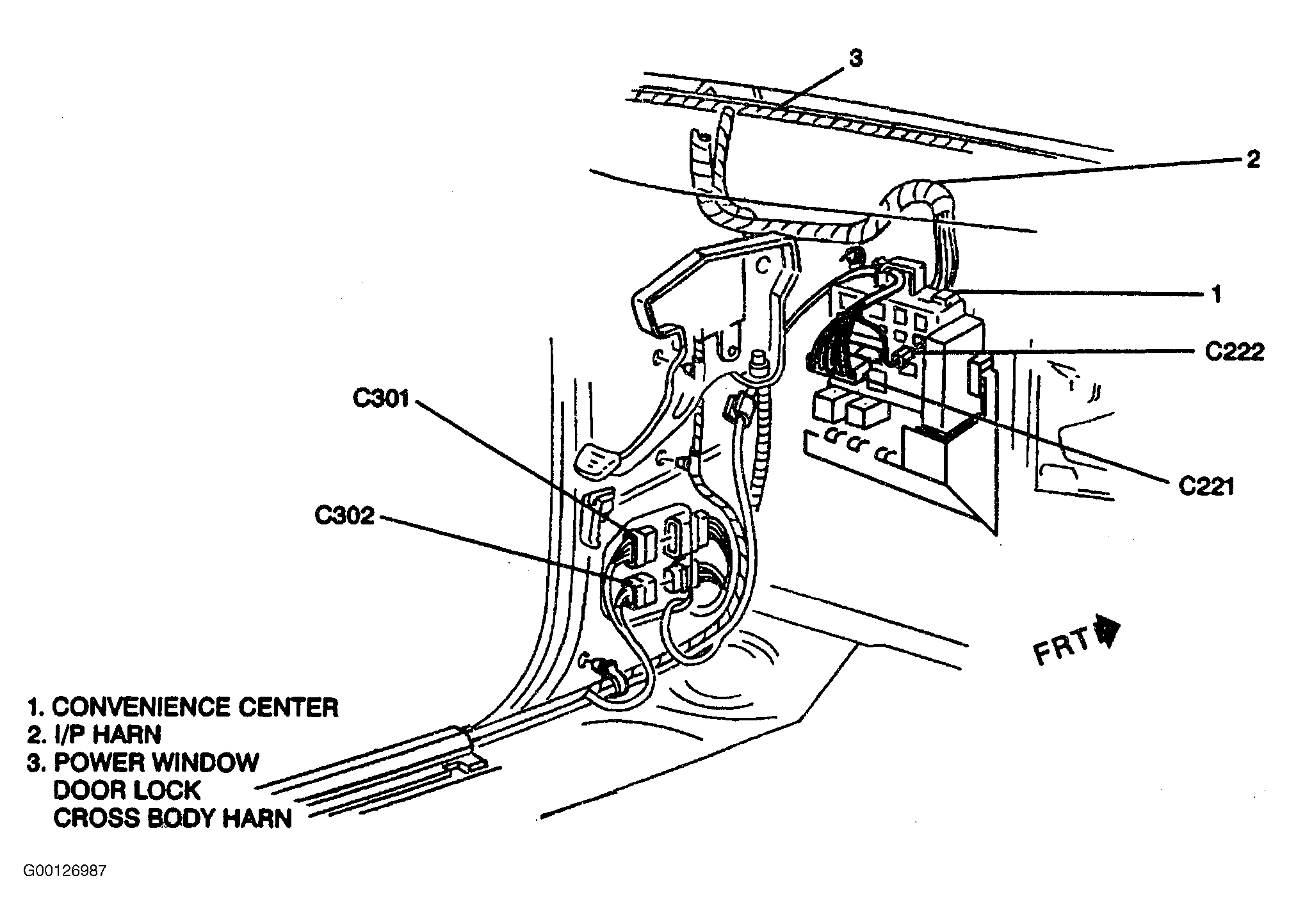

| Left Front | Inside Door, Near Free Edge Latch. See Fig 3 . | |
| Right Front | At Right End Of Instrument Panel. | |

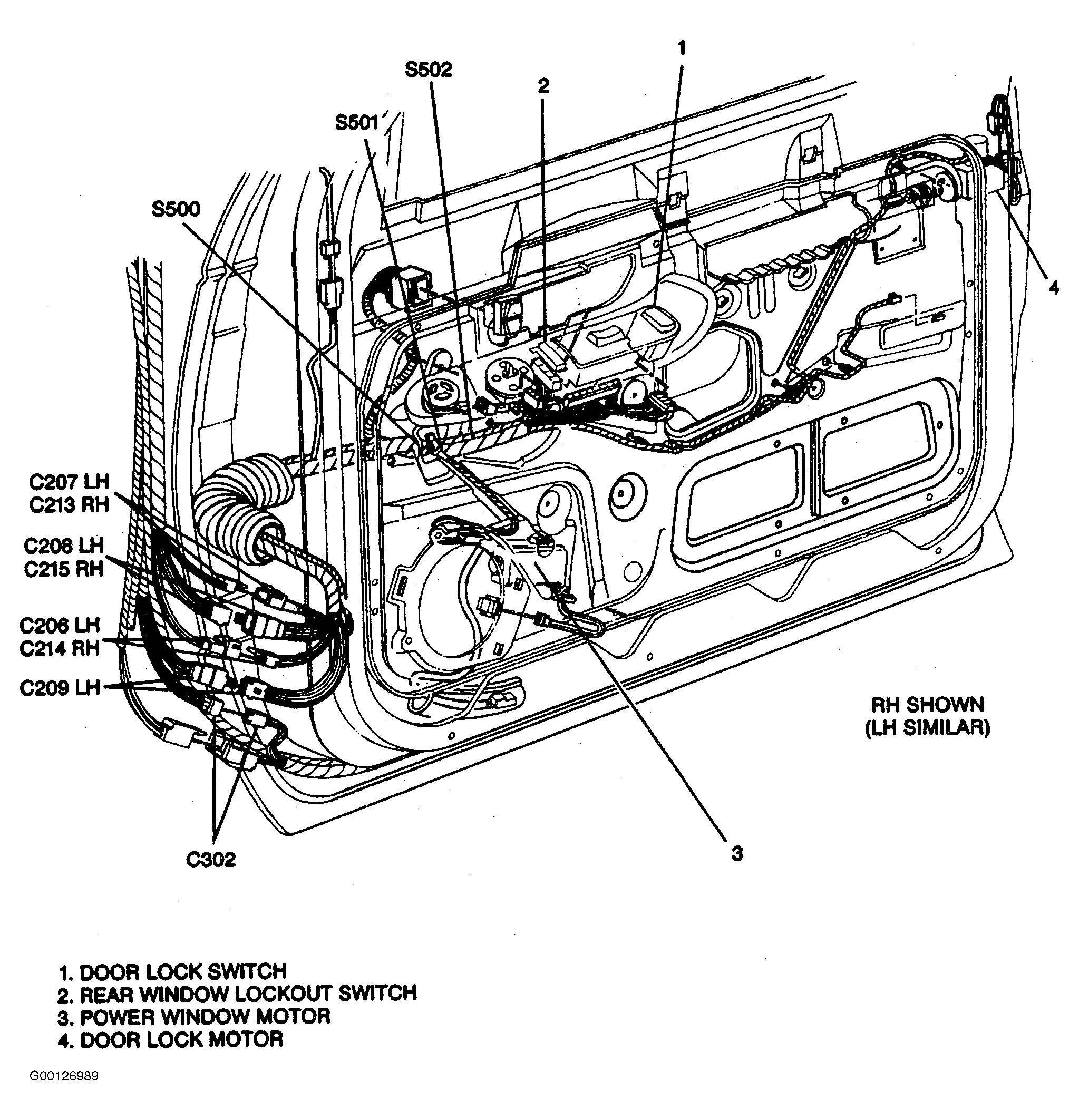

| Left Rear | Inside Door, Near Free Edge Latch. See Fig 4 . | |
| Right Rear | Inside Door, Near Free Edge Latch. See Fig 4 . | |
| Left Front | On Door Trim Panel. See Fig 3 . | |
| Right Front | On Door Trim Panel. See Fig 3 . | |

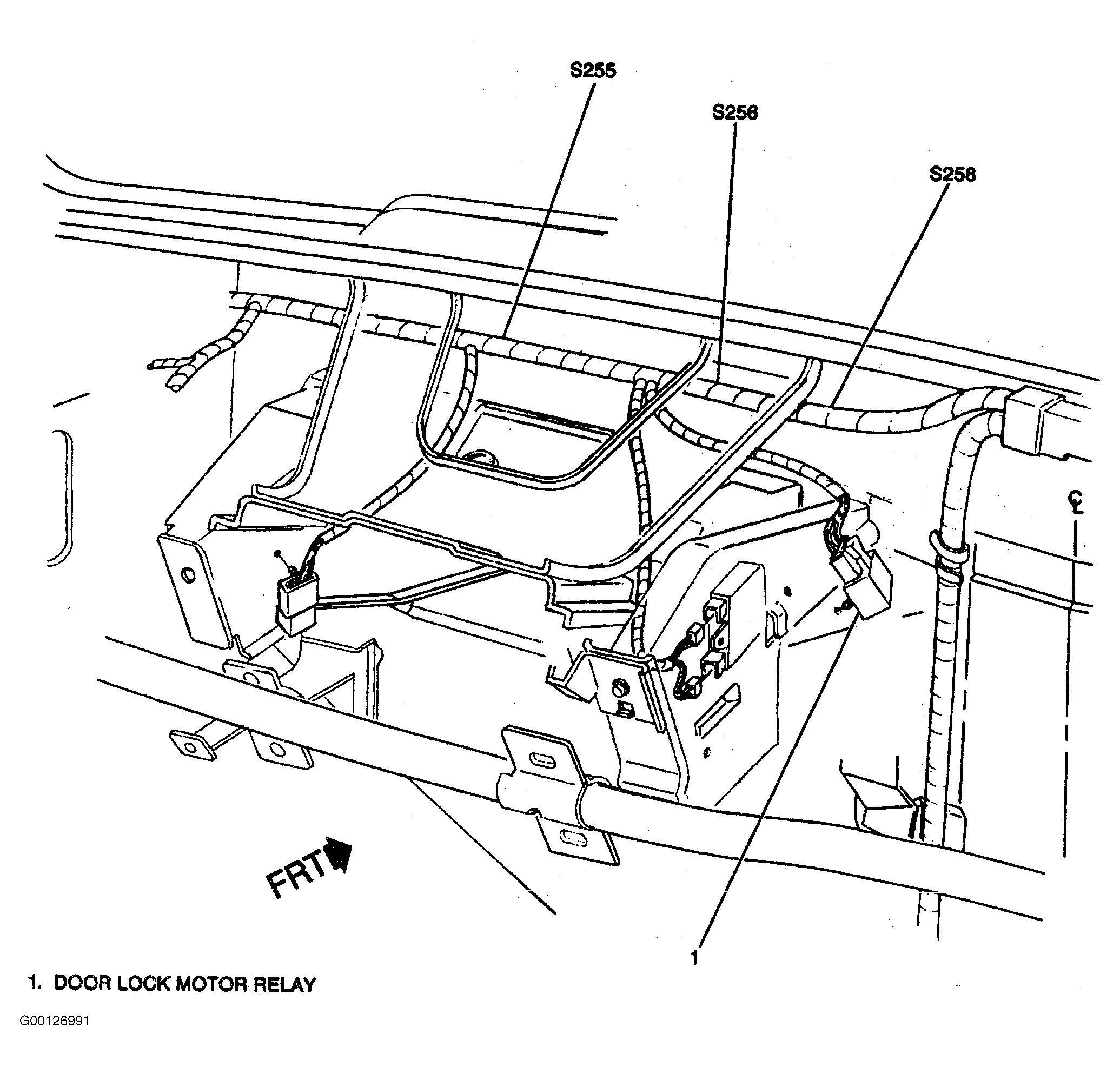

| Door Lock Relay | Under Center Portion Of Instrument Panel, Near RKE Module. See Fig 5 . | |
| Connectors | ||
| C209 | Inside Left "A" Pillar, Lower Portion. See Fig 3 . | |

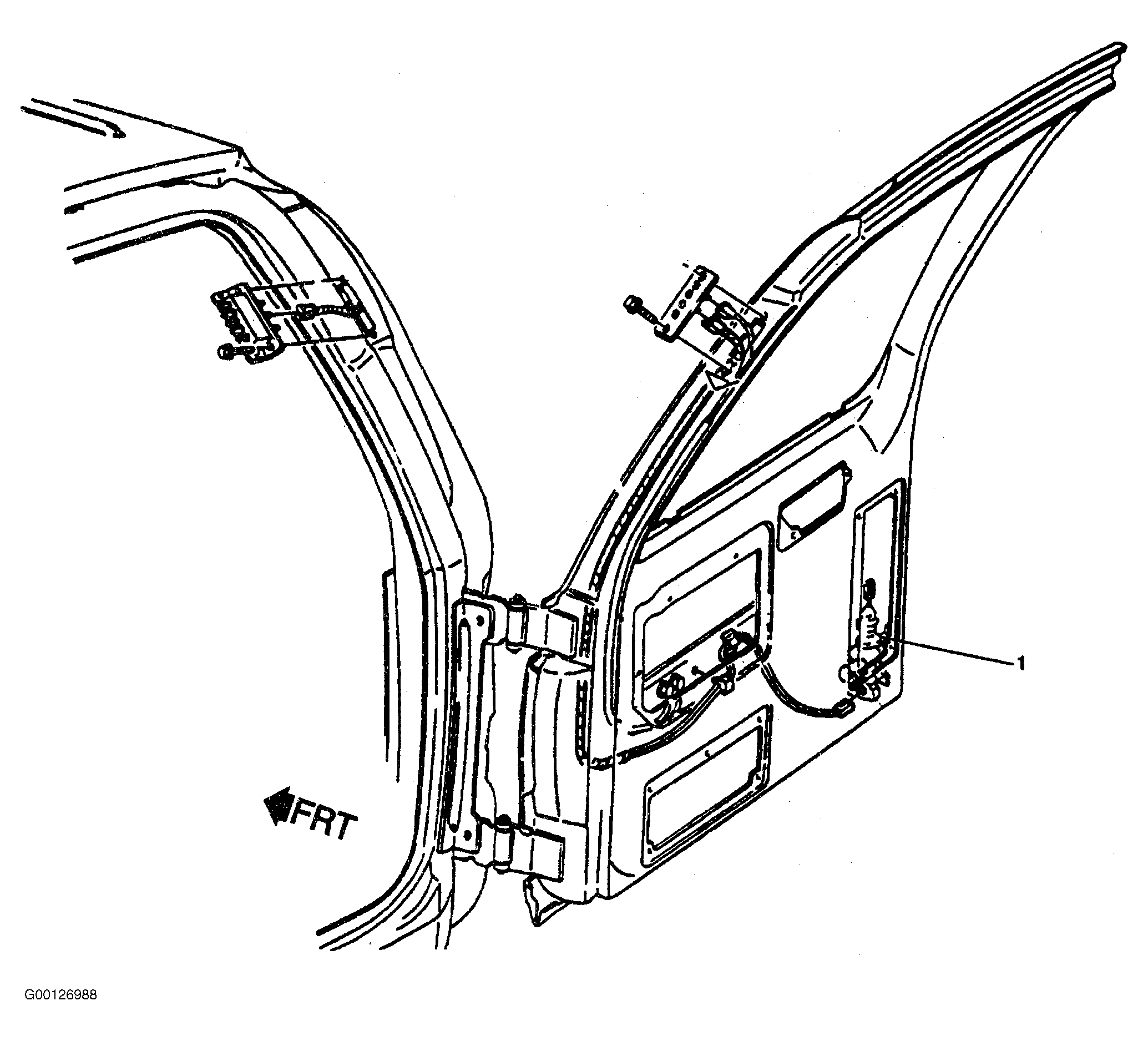

| C210 | At Convenience Center. See Fig 6 . | |
| C213 | Inside Right "A" Pillar, Lower Portion. See Fig 3 . | |
| C302 | Left Front Kick Panel. See Fig 1 . | |

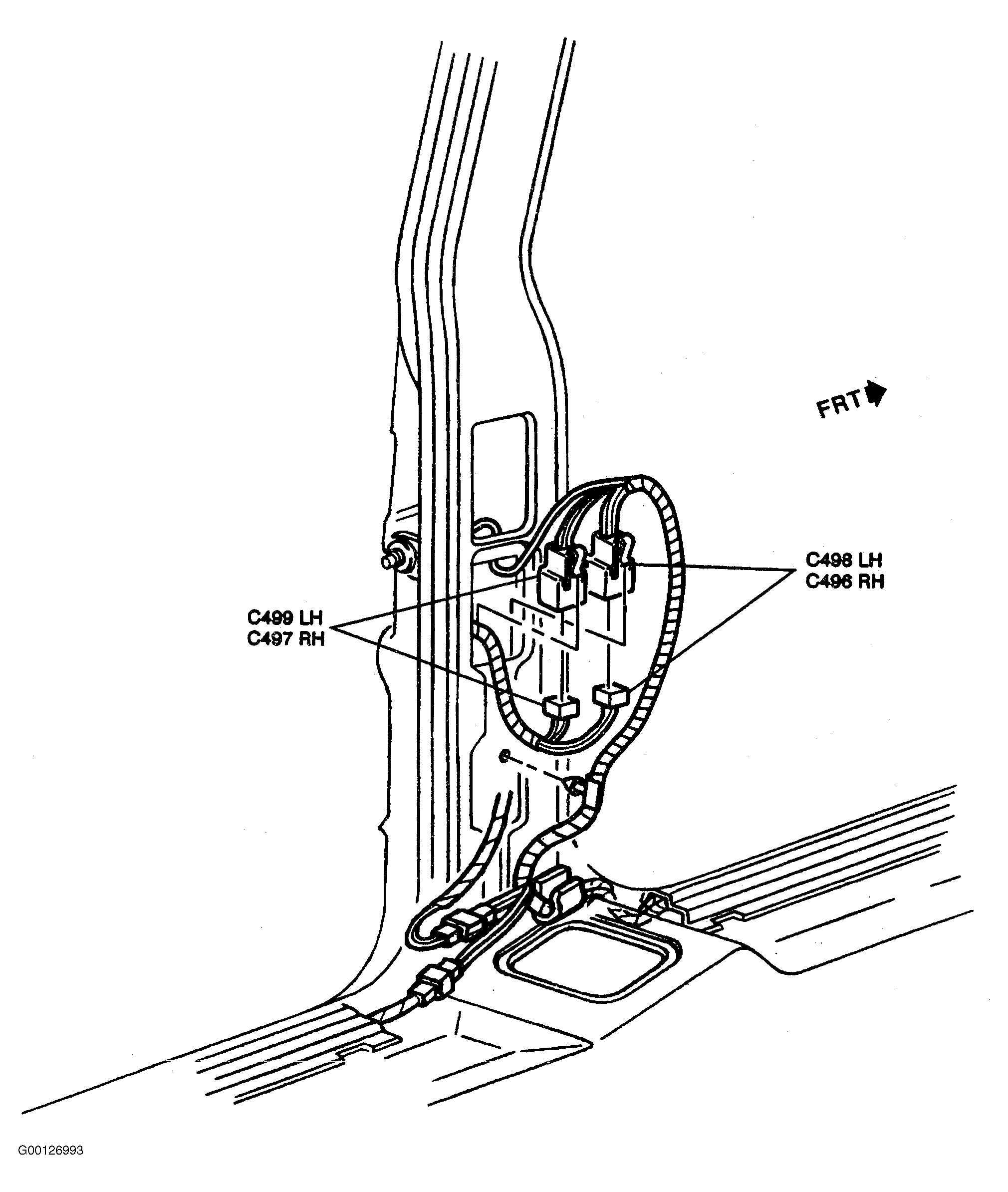

| C497 | At Right "B" Pillar. See Fig 7 . | |
| C499 | At Left "B" Pillar. See Fig 7 . | |
| Ground Connector G200 | Behind Left Side Of Instrument Panel, Below Fuse Block. | |
| Splices | ||
| S204 | In Instrument Panel Harness, 1.6 Inches (4 cm) Left Of Steering Column Breakout. | |
| S251 (Suburban - Base Only) | In Crossbody Harness, 3 Inches (8 cm) Right Of Left Door Breakout. | |
| S251 (Utility/Crew Cab/Pickup/Extended Cab - Base) | In Crossbody Harness, 4.7 Inches (12 cm) Right Of Left Door Breakout. | |
| S251 (Utility/Crew Cab/Pickup/Extended Cab) | In Crossbody Harness, 2.5 Inches (6 cm) Right Of Left Seat Breakout. | |
| S255 (Suburban/Crew Cab/Pickup/Extended Cab) | In Crossbody Harness, 4.7 Inches (12 cm) Right Of Instrument Panel Harness Breakout. | |
| S256 | In Crossbody Harness, 8.25 Inches (21 cm) Right Of Instrument Panel Harness Breakout. | |
| S257 | In Crossbody Harness, 5.5 Inches (14 cm) Right Of Door Lock Relay Breakout. | |
| S258 | In Crossbody Harness, 2.5 Inches (6 cm) Right Of Door Lock Relay Breakout. | |
| S260 | In Crossbody Harness, 2.5 Inches (6 cm) Into Left Seat Breakout. | |
| S261 | In Crossbody Harness, 2 Inches (5 cm) Right Of Left Seat Breakout. | |
| S264 | In Instrument Panel Harness, Approximately 6.3 Inches (16 cm) Right Of Instrument Panel Cluster Connector | |
